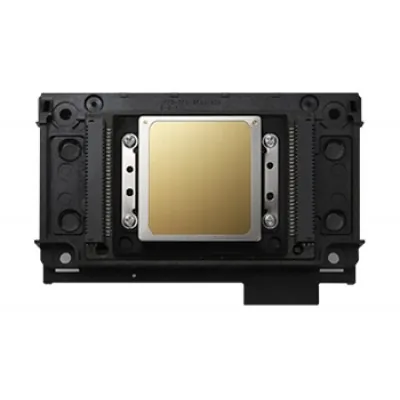

Epson F1080-A1 Printhead

Product Description

Product Specifications - F1080-A1

Product Name F1080-A1

Ink Type AQ ink

Dimensions (Width × Depth × Height) 84.9×57.2×42.6 mm

Weight 60 g

Number of Nozzles 1080

Distance Between Nozzles 180 inch

Number of Nozzle Rows 6

Maximum Number of Ink Colors Supported 6 colors (180dpi/color)

Resolution 180 npi (1 column), 360 dpi (2 columns)

Effective Printing Width 25.4 mm

Injection Frequency 46 kHz (single point), 11.52 kHz (multipoint)

Ink Drop Volume 4.5-9-20-40 pl

Corresponding Ink Viscosity 3 ~ 5 mPa·s
