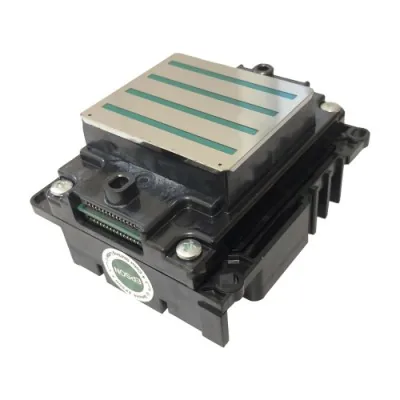

Epson I3200-U1 UV Printhead

Product Description

Epson I3200-U1 UV Printhead

Ink Type UV

Type PrecisionCore MicroTFP printhead

Width x Depth x Height 69.1 x 59.4 x 35.6 mm

Weight 82g

Number of Nozzles 3200

Nozzle Pitch/Nozzle Row 1/300 inch

Nozzle Rows 8 rows

Nozzle Resolution 300 noi/row, 600 npi/2 rows

Max. Number of Colour Inks 4 colours

Effective Print Width 33.8 mm (1.33 inches)

Droplet Ejection Performance Binary: 5 pl at 43.2 kHz
3 levels grey scale: 6, 12.5 pl at 21.6 kHz
4 levels grey scale: 3.8, 6.2, 9.3 pl at 21.6 kHz

Viscosity Range 5-7 mPa·s

Manufacturer Warranty Yes

Country of Origin Japan
