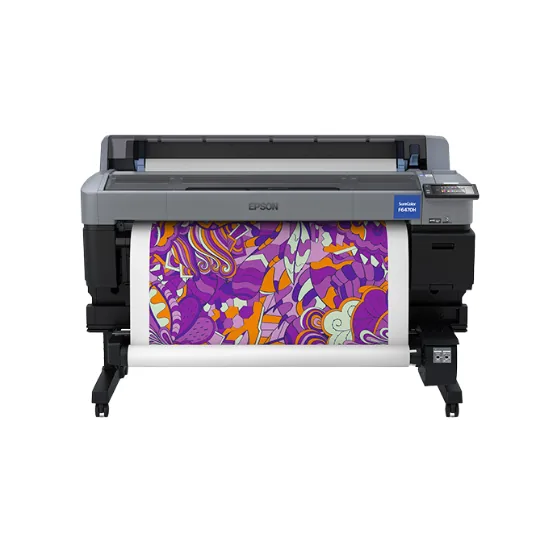

Epson SureColor F6470H 44" Dye-Sublimation Printer

Product Description

Printing Technology PrecisionCore MicroTFP drop-on-demand inkjet printhead with Nozzle Verification technology

Ink Type UltraChrome DS with High-Density Black ink; 6-color ink configuration

Available Ink Configurations Smooth: C, M, Y, HDK, Lc, Lm
Fluorescent: C, M, Y, HDK, Fy, Fp
Vivid: C, M, Y, HDK, Or, Vi

Nozzle Configuration 400 nozzles x 6 colors

Droplet Technology Variable Droplet Technology

Maximum Resolution 1,200 x 600 dpi

Print Speed Up to 400 ft²/hr

Epson Integrated Ink Pack System Yes

In-Box Ink None–sold separately

Retail Ink Pack Volume 2 x 1,600 mL ink packs per color

Ink Pack Shelf Life 2 years from printed production date

Roll Media Handling Single Roll up to 44" wide
Media Core 2" or 3" core diameter
Maximum Roll Diameter Up to 5.9"
Media Thickness Up to 0.5 mm
Integrated Cutter: Automatic rotary cutter

Printable Area and Accuracy Maximum Paper Width: 44"
Minimum Paper Width: 10"
Left/Right Margins: 0.12" (0.24" total)
Maximum Printable Width: Up to 43.8"

Printer Interfaces SuperSpeed USB 3.0 (1 port)
1000Base-T Ethernet (1 port)

Operating Systems Supported Windows® 11, 10 (64-bit)
Epson Edge Print

Minimum PC Requirements Intel Core® i3 (3.30 GHz), 8GB RAM, 50GB HDD, 1280 x 1024 display resolution, Internet connection

Weight and Dimensions (W x D x H) 64" x 36" x 45" (1,608 mm x 916 mm x 1,128 mm)
Weight: 310 lb (140 kg)

Acoustic Noise Level Less than 54 dB(A), according to ISO 7779

Temperature Operating: 59 ˚ to 95 ˚F (15 ˚ to 35 ˚C)
Operating (Recommended): 59 ˚ to 77 ˚F (15 ˚ to 25 ˚C)

Relative Humidity Operating: 20 – 80% (no condensation)
Operating (Recommended): 40 – 60% (no condensation)

Electrical Requirements Printer: Requires 2 outlets
Voltage: AC 100 – 120 V; 200 – 240 V
Frequency: 50 / 60 Hz
Current: 3.4 A at 100 – 120 V, 1.6 A at 200 – 240 V

Power Consumption Printing: Approx. 80 W or less
Standby: 36 W
Sleep Mode: Less than 20 W
Power Off: Less than 0.3 W

Limited Warranty and Extended Service Plans Standard 1-year limited warranty
Optional Epson Preferred Plus Extended plans available up to a total of 5 years of continuous coverage

Country of Origin China
