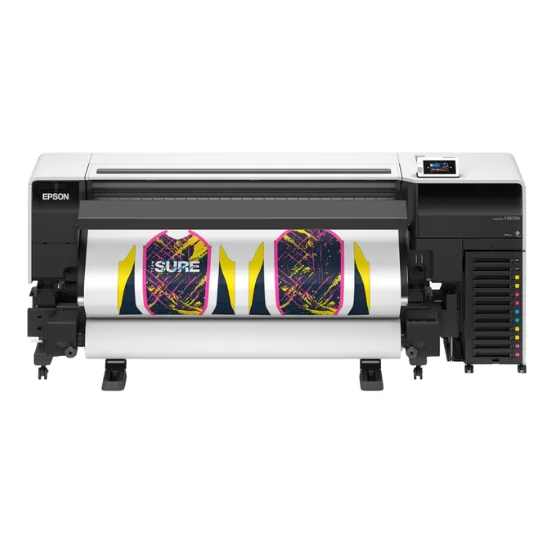

Epson SureColor F9570H Production Edition 64-inch Dye-Sublimation Printer

Product Description

Printing Technology Dual advanced PrecisionCore microTFP 10-channel, drop-on-demand, inkjet printhead with ink-repelling coating technology

Maximum Print Resolution 1200 x 1200 dpi

Minimum Ink Droplet Size Variable Droplet Technology

Nozzle Configuration 8,000 White ink print nozzles; 6,400 color ink print nozzles

Ink Type UltraChrome DG

Ink Palette Cyan, Magenta, Yellow, Black, White

Ink Configuration 5-color: C, M, Y, K, W

Operating Systems Windows® 10 and 8.1, macOS 10.12 (Sierra) or later

System Requirements Garment Creator Software Minimum PC Requirements: Multicore processor, 2GB RAM, 32GB Free Storage
Recommended PC Specifications: Intel Core i7 8th generation processor, 16GB RAM, 32GB free SSD storage

Operating Temperature Operating: 59° to 95°F (15° to 35°C)
Operating (recommended): 59° to 77°F (15° to 25°C)

Operating Humidity Operating: 20 – 80% (no condensation)
Operating (recommended): 40 – 60% (no condensation)

Eco Features Oeko-Tex ECOPASSPORT certified
RoHS compliant
Recyclable product
Epson America, Inc. is a SmartWay® Transport Partner

Country of Origin Indonesia

Ink Supply System Ink Supply Fill Volume: 1,500 mL each pack
In-box Ink Fill Volume: 1,500 mL each pack
Ink Shelf Life: 2 years from printed production date (designed for use with Epson ink packs only)

Garment Media Handling - Thickness Up to 29.5 mm

Printer Language Epson ESC/P® raster

Interfaces Hi-Speed USB 3.0 (1 port)
1000Base-T Ethernet (1 port)

Power Rated Voltage: AC 100 – 120 V; 200 – 240 V
Rated Frequency: 50/60 Hz
Rated Current: 8.2 A at 100 – 120 V, 4.1 A at 200 – 240 V
Power Consumption: Printing: Approx. 168 W or less
Sleep Mode: Approx 20 W
Power Off: Approx 1.0 W

Power Requirements Printer: Requires two outlets
