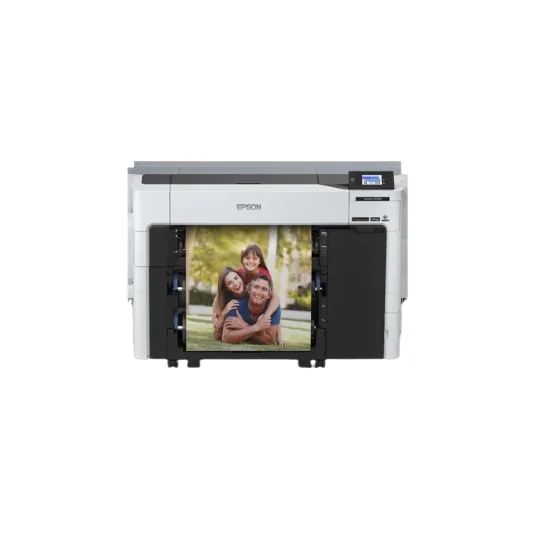

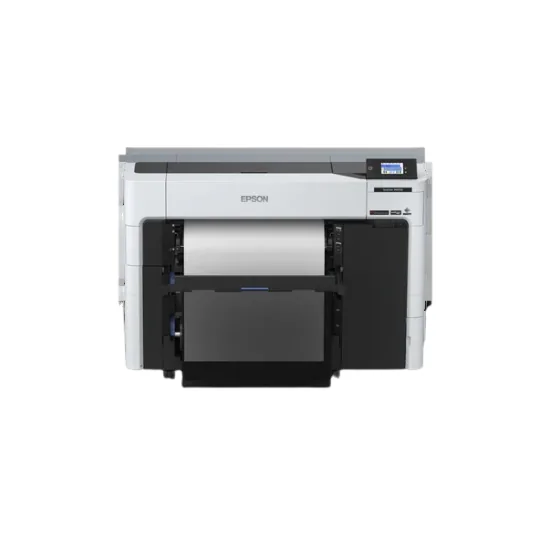

Epson SureColor P6570D 24" Wide-Format Dual-Roll Printer

Product Description

Imagine a wide-format production photo printer engineered to achieve exceptional quality and speed with innovative automatic dual-roll loading and switching.

We’ve rethought photographic production printing from the ground up to deliver a high-performance solution built to enhance the way you work. Introducing the SureColor® P6570D—the next evolution in photographic and graphic production printing, only from Epson.

Featuring a completely reimagined printer design, with automatic dual-roll capability, the SureColor P6570D seamlessly integrates into roll-to-roll workflows to produce stunning prints at true production speeds. The latest from a leader in image quality, the SureColor P6570D uses 6-color UltraChrome® PRO6 Ink with Gray to produce vivid, beautiful output that rivals comparable 8-color printers. Designed to meet your unique photo and graphic art production needs, this versatile printer offers customizable features and easy front-panel feeding and operation to deliver next-level productivity for your business.

Printing Technology PrecisionCore MicroTFP 6-channel drop on-demand printhead

Ink Type UltraChrome PRO6 pigment ink; 6-ink, 6-color ink configuration: Cyan, Magenta, Yellow, Matte Black, Photo Black and Gray

Nozzle Configuration 9,600 nozzles (400 nozzles x 24 channels x 1 head)

Droplet Technology Smallest Droplet Size: 3.5 picoliters; Variable Droplet Technology can produce up to 3 different sizes per line

Maximum Resolution 2400 x 1200 dpi

Production Print Speed Plain Paper Draft: (1P) 1,220 sq ft/hr Speed: (2P) 926 sq ft/hr High Quality: (6P) 79 sq ft/hr Premium Photo Glossy Paper Speed: (4P) 298 sq ft/hr Quality: (6P) 174 sq ft/hr Max Quality: (16P) 79 sq ft/hr

Printer Language/Drivers ESC/P Raster, Adobe PostScript 3, Adobe PDF 1.7

Memory/Built In 4 Gig

In-Box Cartridge Fill Volume 240 mL each color x 6 colors total

Retail Cartridge Fill Volume 150 mL, 350 mL or 700 mL each color available x 6 colors total

Ink Cartridge Shelf Life 2 years from printed production date or 6 months after opened Printer is designed for use with Epson cartridges only, not third- party cartridges or ink*.

Dual Front-Loading Rolls Two 10" to 24" wide

2" or 3" Core Diameter User-adjustable roll media spindles

Roll Cutting High-speed internal rotary cutter; auto or manual

Minimum Auto Cut Length 8.66"

Maximum Roll Diameter Up to 6.69"

Maximum Roll Weight 15 lb

Media Thickness 0.07 mm to 0.80 mm (roll and sheet media)

Roll Paper Remaining Printable barcode tracking system – The amount of remaining media can be controlled and monitored from the front panel

Top/Bottom Margins (mm) Normal: 20/15 (Premium Luster Photo Paper); Option: Top 3, 15, 20, 45/Bottom 3, 15

Left/Right Margins 3 mm each side; 0.24" total; or 0" at BorderFree® width

Integrated Take-Up Reel Auto forward and backward; light- based media sensor with inner and outer winding options

BorderFree Print Widths 10", 13", 14", 17", 20", 24"

Single Sheet, Front or Rear Loading Up to 24" wide

Minimum Sheet Width 8"

Maximum Sheet Width 24"

Media Thickness 0.07 mm to 0.8 mm

Posterboard 0.8 mm to 1.5 mm

Top/Bottom Margins 3 mm/15 mm

Top/Bottom Margins with Centering On 15 mm/15 mm

Left/Right Margins 3 mm each side; 6 mm or 0.24" total; or 0" at BorderFree sizes

BorderFree Print Widths 10", 13", 14", 17", 20", 24"

Line Accuracy ±0.1% of specified length (±0.26 mm min.)

Minimum Sheet Size (Single Sheet) 8.5" x 11"

Maximum Printable Length 298'

Minimum Paper Width Roll: 10"/Sheet: 8"

Articulating LCD Display 4.3" Touchscreen

Printer Interfaces SuperSpeed USB 3.0, 100BASE-TX /1000BASE-T/IEEE 802.11 b/g/n/ac, USB memory stick, 960 GB SSD Optional

Operating Systems Mac® OS X® 10.9.5 or later, macOS® 11 or later Windows® 10, Windows 8.1, Windows 8, Windows 7, Windows Vista® , Windows XP® (32-bit/64-bit), Windows Server® 2019/2016/2012 R2/2012/2008 R2/2008/2003 R2/2003 SP2 or later

Dimensions (W x D x H) 54" x 20" x 38.4" (Storage and Operating) 54" x 33" x 38.4" (Paper Basket Extended)

Weight 260 lb

Acoustic Noise Level Operating: 49.6 dBA according to ISO 7779

Temperature Operating: 50 ˚F to 95 ˚F (10 ˚C to 35 ˚C) Operating (Recommended): 65 ˚F to 75 ˚F (18 ˚C to 24 ˚C) Storage: -4 ˚F to 104 ˚F (-20 ˚C to 40 ˚C)

Relative Humidity Operating: 20% – 80% (no condensation) Operating (Recommended): 45% – 60% (no condensation) Storage: 5% – 85% (no condensation)

Safety Standards USA and Canada (NRTL Certified, CSA/UL 62368-1). Compliant with FCC Class B Requirements.

Electrical Requirements Voltage: AC 110 V – 240 V Frequency: 50 Hz – 60 Hz Current: 3.4 A – 1.6 A

Power Consumption Printing: Approx. 75 W Ready: Approx. 32 W Sleep: 2 W (1000Base-T Ethernet in Standby) Power Off (Stand By): 0.3 W
