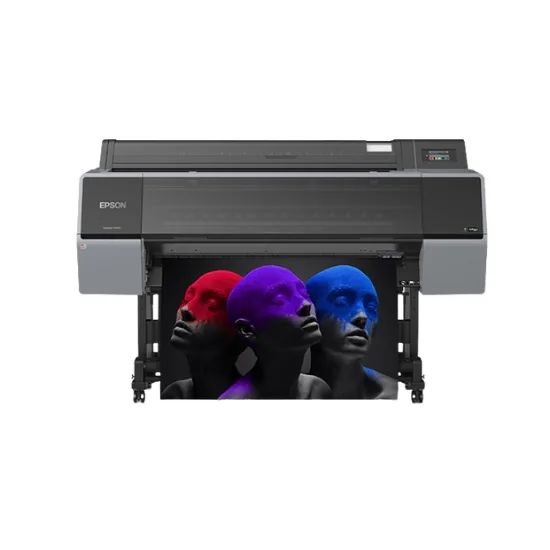

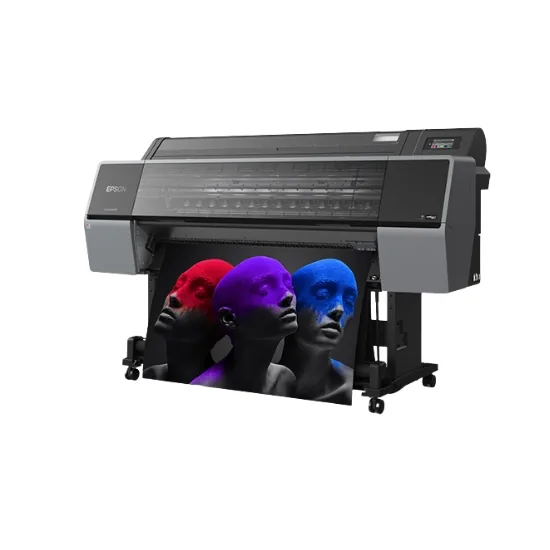

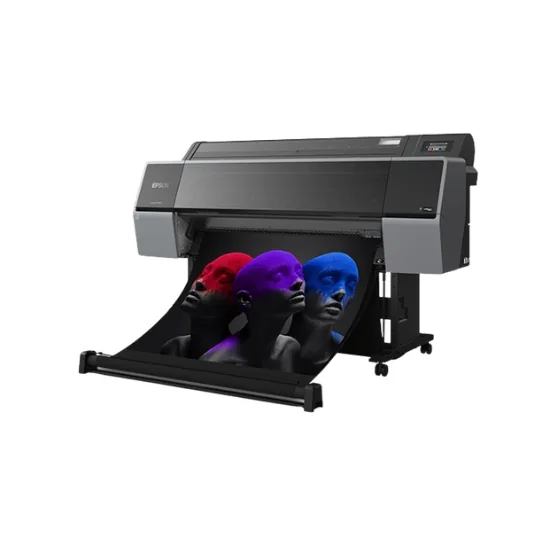

Epson SureColor P9570 44" Wide-Format Inkjet Printer

Product Description

We believe technology has the power to push creative boundaries, exceed the limits of imagination and propel artistry to new heights. That’s why, after 20 years of perfecting wide-format printing technology, we are ready to unveil our most advanced printer to date, designed to transform your artistic vision into a truly unforgettable experience.

From professional photography to proofing and graphic design, the SureColor P9570 was built from the ground-up to uniquely cater to the full spectrum of creative needs. Featuring all-new UltraChrome® PRO12 Ink, the SureColor P9570 captures every detail with unparalleled color brilliance2 and accuracy. And, with a new 2.6" PrecisionCore® printhead, you get unmatched image quality at speeds up to 2.4 times faster than our previous generation.

Printing Technology PrecisionCore MicroTFP 12-channel, drop-on-demand printhead

Maximum Resolution 2400 x 1200 dpi

Print Speed 23.4" x 33.1" prints
• Normal (Black Enhance Overcoat: off) 3:39
• Normal (Black Enhance Overcoat: off) 4:45

Minimum Ink Droplet Size Smallest droplet size: 3.5 picoliters; Variable Droplet Technology can produce up to three different sizes per line

Nozzle Configuration Color and monochrome heads; 9600 nozzles (800 nozzles x 12)

Ink Type UltraChrome PRO12 pigment ink; 12-ink,

Ink Palette Cyan, Light Cyan, Vivid Magenta, Vivid Light Magenta, Yellow, Gray, Light Gray, Orange, Green, Photo Black, Matte Black and Violet

UltraChrome PRO12 Ink (700 mL) • Photo Black T44H120
• Cyan T44H220
• Vivid Magenta T44H320
• Yellow T44H420
• Light Cyan T44H520
• Vivid Light Magenta T44H620
• Gray T44H720
• Matte Black T44H820
• Light Gray T44H920
• Orange T44HA20
• Green T44HB20
• Violet T44HD20

UltraChrome PRO12 Ink (350 mL) • Photo Black T44P120
• Cyan T44P220
• Vivid Magenta T44P320
• Yellow T44P420
• Light Cyan T44P520
• Vivid Light Magenta T44P620
• Gray T44P720
• Matte Black T44P820
• Light Gray T44P920
• Orange T44PA20
• Green T44PB20
• Violet T44PD20

UltraChrome PRO12 Ink (150 mL) • Photo Black T44W120
• Cyan T44W220
• Vivid Magenta T44W320
• Yellow T44W420
• Light Cyan T44W520
• Vivid Light Magenta T44W620
• Gray T44W720
• Matte Black T44W820
• Light Gray T44W920
• Orange T44WA20
• Green T44WB20
• Violet T44WD20

Fade Resistance / Print Longevity Color: up to 200 years; Black-and-white: up to 400 years

Operating Systems Apple® OS X® 10.6.8 or later Windows® 10, 8.1, 7 (32-bit, 64-bit)

Temperature Operating: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C) Operating (recommended): 65 ˚ to 75 ˚F (18 ˚ to 24 ˚C) Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C)

Humidity Operating: 20 - 80% (no condensation) Operating (recommended): 45 - 60% (no condensation) Storage: 5 - 85% (no condensation)

Sound Level Less than 49.5 dB(A) according to ISO 7779

Dimensions Basket Closed: 75.1" x 26.3" x 48" (1909 mm x 667 mm x 1218 mm)

Weight 339 lb (153.8 kg)

Eco Features ENERGY STAR® qualified RoHS compliant Recyclable product Epson America, Inc. is a SmartWay® Transport Partner

Safety Approvals Safety standards: UL62368-1, CAN/CSA C22.2 No.62368-1 EMC FCC part 15 subpart B class B, CAN/CSA-CEI/IEC CISPR22 class B, AS/NZS CISPR 32 class B

In-box Cartridge Fill Volume 110 mL each color x 12 colors total

Retail Cartridge Fill Volume 150, 350 or 700 mL each color available x 12 colors total

Maximum Paper Width 44"

Minimum Cut-sheet Size 8.5" x 11"

Line Accuracy +/- 0.2% of specified length (+/- 0.26 mm min.)

Maximum Printable Length Maximum Printable Roll Length: 708.66"

Sheet Loading Auto-loading if less than 0.5 mm thick

Thickness 0.8 mm to 1.5 mm

Single Sheet, Top-loading Up to 24" wide

BorderFree Print Widths 10", 11.8", 13", 16", 17", 20", 20.3", 23.4", 24", 28.7", 33.1", 36", 40.6", 44"

Left/Right Margins 3 mm each side; 6 mm or 0.24" total; or 0" at BorderFree sizes

Top/Bottom Margins Top/Bottom Margins 3 mm/15 mm Top/Bottom Margins with Centering On 15 mm/15 mm

Single Roll-to-Roll / Top-loading Roll 44" wide

Media Core 2" or 3" Core Diameter; User-adjustable roll media adapters

Roll Cutting High-speed internal rotary cutter; auto or manual

Minimum Auto Cut Length 5.0" plus top and bottom margin (5.24" min.)

Top/Bottom Margins Normal: 20mm/15mm (Premium Luster Photo Paper); option: Top 3mm, 15mm, 20mm, 45mm/Bottom 3mm, 15mm

Roll Paper Remaining Printable barcode tracking system

Printer Language Epson ESC/P® raster photographic drivers standard

Interfaces Hi-Speed USB 2.0 (1 port) 1000Base-T Ethernet (1 port)

Rated Voltage AC 110 - 240 V

Rated Frequency 50 - 60 Hz

Rated Current 2 A

Power Consumption Printing: approx. 110 W Ready: approx. 32 W Sleep Mode: approx. 3.4 W (1000Base-T Ethernet in Standby) Power Off: less than 0.3
