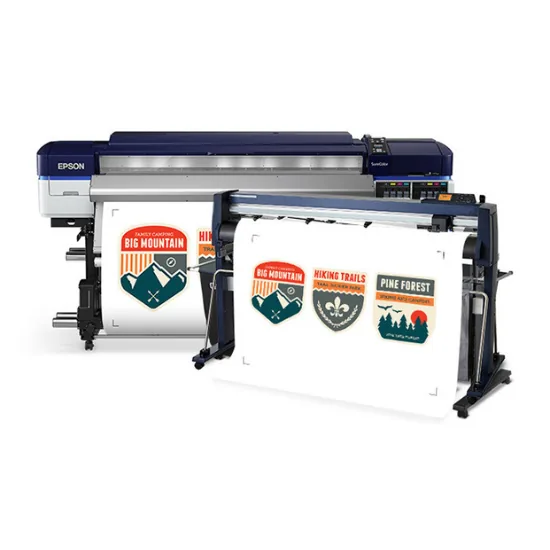

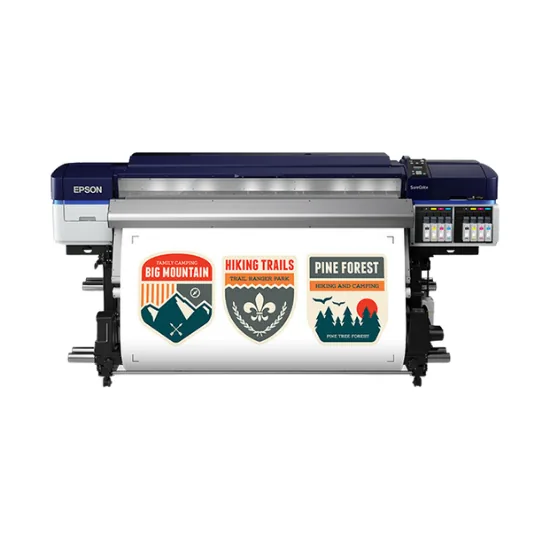

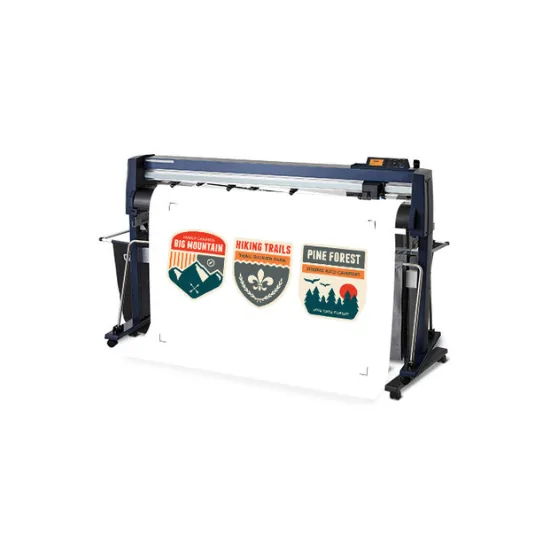

Epson SureColor S40600 Print Cut Edition

Product Description

Printing Technology Advanced PrecisionCore® TFP® Print Head
8-channel, drop-on-demand, inkjet Print Head
4 Color (C, M, Y, K)
Solvent Based Ink Chemistry

Maximum Print Resolution 1440 x 1440 dpi

Maximum Printable Area 63.6"

Print Speed Draft - 610 sqft/hr
Production: Banner - 215 sqft/hr, Vinyl 170 sqft/hr
Quality: Banner - 170 sqft/hr, Vinyl - 140 sqft/hr

Minimum Ink Droplet Size 4.2 picoliters; Variable Droplet Technology

Nozzle Configuration Color and Monochrome 720 nozzles per Color

Ink Ink Type: UltraChrome® GS3

Ink Configuration CMYK

Replacement Ink Black T890100
Cyan T890200
Magenta T890300
Yellow T890400

General Operating Systems: Mac OS X 10.8x - 10.11x; Windows 10, 8.1, 7 (64-bit)
Server Systems: Windows® 7, 8, Windows Vista® or Windows XP (64 bits)

System Requirements Intel i7 or better
6GB memory recommended

Temperature Operating: 50 to 95 degrees F (10 to 35 degrees C)
Storage: -4 to 104 degrees F (-20 to 50 C)

Humidity Operating: 20-80%
Operating (Recommended): 40-60%
5-85% (no condensation)

Sound Level Approximately 59 dB according to ISO 7779

Dimensions 103" x 34" x 53" (2616 mm x 609 mm x 1346 mm) W x D x H

Weight 615 lb (278 kg)

Warranty Standard one-year on-site next business day service with toll-free phone support Monday thru Friday.
Optional Epson SureColor S40600 Extended service plans available for purchase for up to 5 years of total coverage.

Ink Supply System Ink Supply Fill Volume: 700 mL x 4 colors total

Ink Shelf Life 2 years from printed production date or 6 months after open

Printable Area and Accuracy Maximum Paper Width: 64"
Minimum Paper Width: 12"
Maximum Printable Length: Maximum printable length limited by software application, OS, media length, and RIP

Roll Media Handling Maximum Roll Diameter: Up to 250mm
Maximum Roll Weight: Up to 95lbs

Software Included Front-End RIP Workflow by Onyx GamaPrint Pro
PANTONE licensed PostScript Language Level 3 Compatible RIP by Onyx
Includes full workflow software with layout, nesting, tiling, custom spot color management, custom media support and RIP queue functionality.
The Epson SureColor S40600 is also supported by most leading third-party RIPs and workflows.

Interfaces One Hi-Speed USB 2.0 (1.1 Compatible)
One Gigabit Ethernet Port

Power Power Supply Voltage: Two (2) 110v Outlets
Rated Voltage: AC 100 - 120 V, AC 200 - 240 V
Rated Frequency: 50 - 60 Hz
Power Consumption: Operating: Approx. 650W or less
Standby Heaters On: Approx 520W
Standby Heaters Off: Approx 30W or less
Power Off: Approx 0.6 W or less
Sleep Mode: Less than 3.5W
