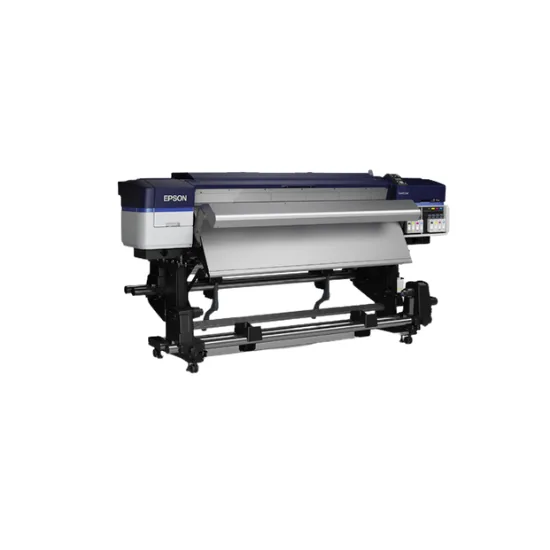

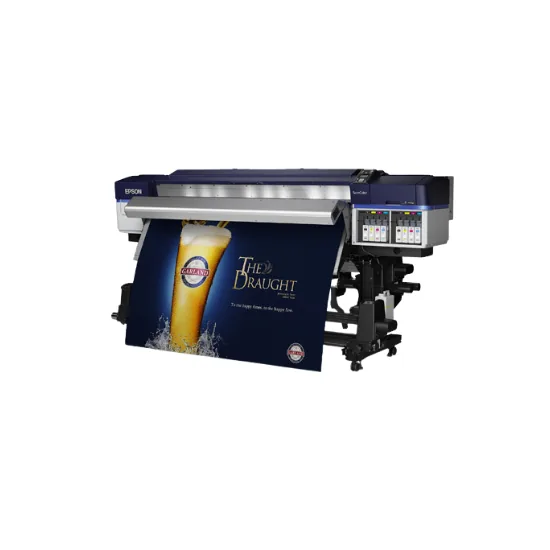

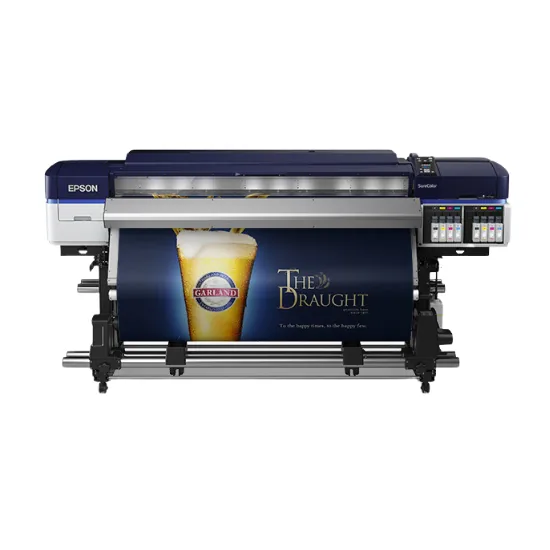

Epson SureColor S60600 Printer

Product Description

Printing Technology Dual Advanced PrecisionCore® TFP® Print Heads
8-channel, drop-on-demand, inkjet Print Head
Dual 4 Color (C, M, Y, K)
Solvent Based Ink Chemistry

Maximum Print Resolution 1440 x 1440 dpi

Maximum Printable Area 63.6"

Print Speed Draft - 1,020 sqft/hr
Production: Banner - 550 sqft/hr, Vinyl 310 sqft/hr
Quality: Banner - 310 sqft/hr, Vinyl - 190 sqft/hr

Minimum Ink Droplet Size 4.2 picoliters; Variable Droplet Technology

Nozzle Configuration Color and Monochrome 1440 nozzles per Color

Ink Ink Type: UltraChrome® GS3

Ink Palette CMYK x 2

Replacement Ink Black T890100
Cyan T890200
Magenta T890300
Yellow T890400

Operating Systems Mac OS X 10.8x - 10.11x
Windows 10, 8.1, 7 (64-bit)

Server Systems Windows 7, 8, Windows Vista or Windows XP (64 bit)

System Requirements Intel i7 or better
6GB memory recommended

Temperature Operating: 50 to 95 degrees F (10 to 35 degrees C)
Storage: -4 to 104 degrees F (-20 to 50 C)

Humidity Operating: 20-80%
Operating (Recommended): 40-60%
5-85% (no condensation)

Sound Level Approximately 59dB according to ISO 7779

Dimensions 103" x 34" x 53" (2616 mm x 609 mm x 1346 mm) W x D x H

Weight 635 lb

Warranty Standard one-year on-site next business day service with toll-free phone support Monday thru Friday.
Optional Epson SureColor S60600 Extended service plans available for purchase for up to 5 years of total coverage.

Ink Supply System Ink Supply Fill Volume: 700 mL x 4 colors total x 2

Ink Shelf Life 2 years from printed production date or 6 months after open

Printable Area and Accuracy Maximum Paper Width: 64"
Minimum Paper Width: 12"
Maximum Printable Width: 63.6"

Roll Media Handling Maximum Roll Diameter: Up to 250mm
Maximum Roll Weight: Up to 95lbs

Software Included Front-End RIP Workflow by Onyx GamaPrint Pro
PANTONE licensed PostScript Language Level 3 Compatible RIP by Onyx
Includes full workflow software with layout, nesting, tiling, custom spot color management, custom media support and RIP queue functionality.
The Epson SureColor S60600 is also supported by most leading third-party RIPs and workflows.

Controller Specifications Epson ESC/P® raster

Interfaces One Hi-Speed USB 2.0 (1.1 Compatible)
One Gigabit Ethernet Port

Power Rated Voltage: AC 100 - 120 V, AC 200 - 240 V
Rated Frequency: 50- 60 Hz
Power Consumption: Operating: Approx. 650W or less
Standby Heaters On: Approx 520W
Standby Heaters Off: Approx 30W or less
Power Off: Approx 0.6 W or less
Sleep Mode: Less than 3.5W

Power Requirements Two (2) 110v Outlets + One (1) 110v Outlet for additional dryer unit
