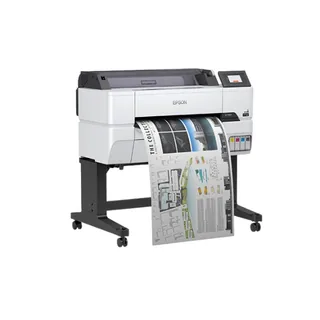

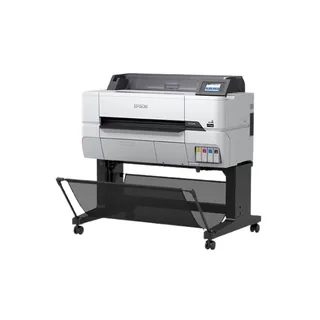

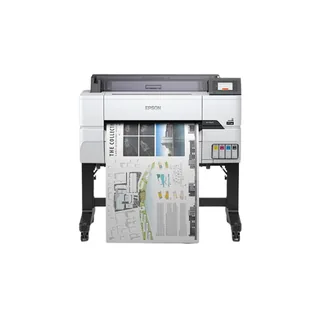

Epson SureColor T3475 24" Printer

Product Description

Rethink workgroup productivity with the 24" SureColor T3475 wide-format wireless printer, offering powerful, precise printing within a compact, robust design. Ideal for high-production printing of blueprints, line drawings and posters up to 24", it delivers accurate, A1/D-size prints in as fast as 25 seconds1. Featuring a 4.3" color touchscreen, this easy-to-use printer also offers advanced network security and encryption designed to safeguard sensitive information. Its high-capacity UltraChrome® XD2 pigment inks ensure durable, vibrant prints. Plus, Epson’s breakthrough PrecisionCore® MicroTFP printhead achieves outstanding clarity and commercial-grade reliability.

Printing Technology PrecisionCore MicroTFP 4-channel, drop-on-demand printhead

Maximum Resolution 2400 x 1200 dpi

Print Speed A1/D-sized print: 25 seconds

Minimum Ink Droplet Size 4 picoliters; Variable Droplet Technology can produce up to three different sizes per line

Nozzle Configuration Color and monochrome heads; 800 nozzles x 4 channels

Ink Type UltraChrome XD2 pigment ink; 4-color (C, M, Y, K)

Ink Cartridge (110 ml) • Cyan T41W220
• Magenta T41W320
• Yellow T41W420
• Black T41W520

Ink Cartridge (350 ml) • Cyan T41P220
• Magenta T41P320
• Yellow T41P420
• Black T41P520

Ink Cartridge (700 ml) • Cyan T41N220
• Magenta T41N320
• Yellow T41N420
• Black T41N520

Operating Systems macOS® 10.13.x, Mac® OS X® 10.12.x, 10.11.x, 10.10.x, 10.9.x, 10.8.x and 10.7.x Windows® 10, 8.1, 7 (32-bit, 64-bit), Windows Vista® and Windows XP

Temperature Operating: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C) Operating (Recommended): 65 ˚ to 75 ˚F (18 ˚ to 24 ˚C) Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C)

Humidity Operating: 20–80% (no condensation) Operating (Recommended): 45–60% (no condensation) Storage: 5–85% (no condensation)

Sound Level Operating: Approx 50 dB(A) Sleep: Approx 32 dB(A)

Dimensions With Stand: 43" x 30" x 42" (1080 x 750 x 1060 mm)

Weight With Stand: 141 lb (64 kg)

Eco Features ENERGY STAR® qualified RoHS compliant Recyclable product Epson America, Inc. is a SmartWay® Transport Partner

Safety Approvals UL (MET), FCC (Class A), CSA, CE, EMC

In-box Cartridge Fill Volume C, M, Y, K: 110 mL

Retail Cartridge Fill Volume C, M, Y, K: 110, 350, or 700 mL

Ink Cartridge Shelf Life 2 years from printed production date or 6 months after opened Printer is designed for use with Epson cartridges only, not third-party cartridges or ink.

Maximum Paper Width 24"

Minimum Paper Width Roll: 10"/Sheet: 8.27"

Maximum Printable Length Limited by application, OS and driver/RIP used

Single Sheet, Top-loading Up to 24" wide

Left/Right Margins 0 to 3 mm each (0.24" total)

Single Roll-to-Roll / Top-loading Roll Up to 24" wide

Media Core 2” or 3" User-adjustable roll media adapters

Maximum Roll Diameter Up to 6.6"

Media Thickness Up to 11.8 mil

Roll Cutting High-speed internal rotary cutter; auto or manual

Roll Paper Remaining The amount of remaining paper can be controlled from the control panel

BorderFree Print Widths 10.0", 11.8", 13.0", 16.0", 17.0", 19.7", 20.3", 23.0", 24.0"

Display 4.3" Touchscreen

Printer Language Epson ESC/P® Raster, HP-GL/2, HP RTL

Interfaces SuperSpeed USB (compatible with USB 3.0 specification), USB Direct, Wireless LAN IEEE (802.11 b/g/n)3, Wired Ethernet (1000 Base-T/100 Base-TX/10 Base-T), Wi-Fi Direct

Rated Voltage AC 110–240 V

Rated Frequency 50–60 Hz

Rated Current 2.8 A

Power Consumption Printing: Approx. 34 W Ready: Approx. 13 W Sleep: approx. 1.3 W Power Off (Stand By): 0.25 W
