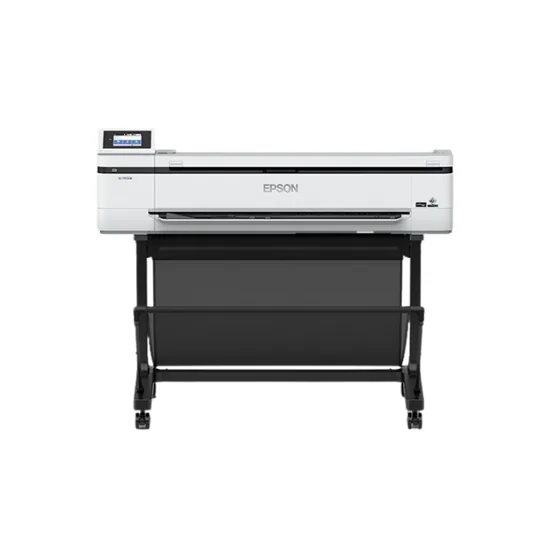

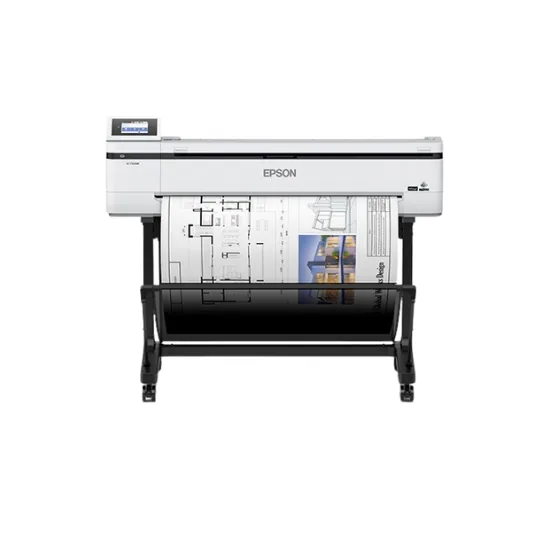

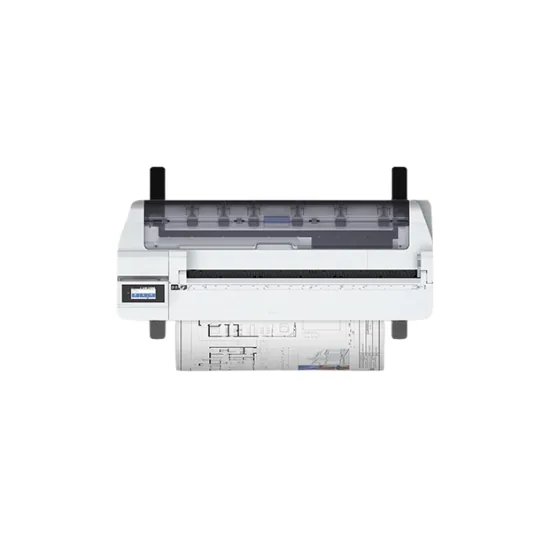

Epson SureColor T5170M 36" Wireless Printer with Integrated Scanner

Product Description

Enhance the way you work with the all-new the SureColor T5170M 36" wide MFP printer. Featuring a 36" wide printer with an integrated scanner in a sleek, ultra-small footprint2 up to 15% smaller than its competitors12, the T5170M allows for seamless team collaboration. Engineered for productivity, the SureColor T5170M delivers A1/D-size prints in as fast as 31 seconds1, supports a variety of media—including rolls and sheets—and features integrated wireless and Wi-Fi Direct® connectivity5 for easy printing from virtually anywhere in your home or office with a smart device4. From blueprints and technical documents to renderings and graphics, the T5170M consistently delivers durable, precise prints with Epson® PrecisionCore® MicroTFP® printhead technology and archival-quality, all-pigment-based UltraChrome® XD2 inks.

Printing Technology PrecisionCore MicroTFP 4-channel drop on demand

Ink Type UltraChrome XD2 pigment ink; 4-color (C, M, Y, K)

Line Accuracy ±0.1% or ±0.26 mm

Nozzle Configuration Black: 800 nozzles (800 nozzles x 1 channel) Color: 2400 nozzles (800 nozzles x 3 channels)

Droplet Technology Smallest Droplet Size: 4 picoliters; Variable-Sized Droplet Technology can produce up to 3 different sizes per line

Maximum Resolution 2400 x 1200 dpi

Print Speed A1/D-size print: 31 seconds

Printer Language/Drivers Epson ESC/P® raster HP-GL/2, HP RTL *1

Scanner Sensor CIS Sensor (Sheetfed)

Scan/Copy Resolution Up to 600 dpi, reprint 2400 x 2100 dpi

Scan Speed Up to 1.5 ips (Color) Up to 4.5 ips (Monochrome)

Maximum Scan Width Up to 36"

Maximum Scan Length Up to 8.9'

Scan Media Type Plain Paper, Recycled Paper, Coated Paper, Tracing Paper, Film, Blueprint, Offset Printing Paper, Carrier Sheet

Maximum Copies Up to 99

Reduction/Enlargement 25% to 400%

File Type Support JPEG, PDF (Single Page), PDF (Multi-Page), PDF/A, Encrypted PDF, TIFF

Scan Modes Scan to Network Folder, FTP Server, Secure FTP Server, Mail Server, Secure Mail Server, USB Memory Stick

In-Box Cartridge Fill Volume Colors (C, M, Y): 26 mL Black (K): 50 mL

Retail Cartridge Fill Volume Colors (C, M, Y): 26 mL or 50 mL Black (K): 50 mL or 80 mL

Single Top-Loading Roll 36" wide

2" Core Diameter User-adjustable roll media adapters

Roll Cutting High-speed internal rotary cutter; auto or manual

Maximum Roll Diameter Up to 4.3"

Media Thickness Up to 8.6 mi

Roll Paper Remaining The amount of remaining paper can be controlled from the control panel

Single-Sheet, Top-Loading Up to 36" wide

Auto Sheet Feeder Up to 11" x 17"; up to 50 sheets

Minimum Sheet Size (1 Sheet and ASF) 8.27" x 11"

Media Thickness 10.2 mil

Maximum Paper Width 36"

Left and Right Margins 0 mm to 3 mm each

Maximum Printable Length Limited by application, OS and driver/RIP used

Minimum Paper Width Roll: 13"/Sheet: 8.27"

User Interface Display 4.3" touchscreen

Memory 1GB (printer) + 8GB (scanner)

Printer Interfaces SuperSpeed USB*1, Wired Ethernet 100BASE-TX/1000BASE-T, Wireless LAN IEEE 802.11 b/g/n, USB memory stick, Wi-Fi Direct5

Operating Systems Mac® OS X® (10.6.8 or later) Windows ® 10, 8.1, 7 (32-bit, 64-bit)

Weight and Dimensions (W x D x H) With Stand 50" x 24" x 39" 122 lb (56 kg)

Acoustic Noise Level Operating: Approx. 49 dB(A) Sleep: Approx. 32 dB(A)

Temperature Operating: 50 ˚F to 95 ˚F (10 ˚C to 35 ˚C) Operating (Recommended): 59 ˚F to 77 ˚F (15 ˚C to 25˚C) Storage: -4 ˚F to 104 ˚F (-20 ˚C to 40 ˚C)

Relative Humidity Operating: 20% – 80% (no condensation) Operating (Recommended): 45% – 60% (no condensation) Storage: 5% – 85% (no condensation)

Safety Standards USA and Canada (NRTL Certified, CSA/UL62368-1)

Electrical Requirements Voltage: AC 110 V – 240 V Frequency: 50 Hz – 60 Hz Current: 1.4 A
