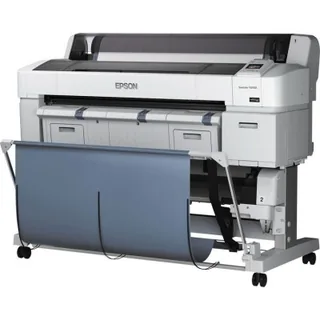

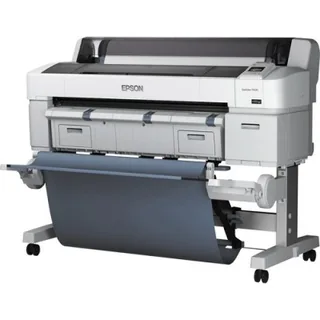

Epson SureColor T5270D 36 inch Dual Roll Large-Format Inkjet Printer

Product Description

Epson SureColor T5270D 36 inch Dual Roll Large-Format Inkjet Printer

High-performance large format printer offering exceptional resolution and print speeds for a wide variety of printing needs.

Max Resolution 2880 x 1440 dpi

Max Print Width 36"

Print Speed 22 x 34" Plot in 25 Seconds

Media Handling Handles Media up to 59 mil Thick

Roll Capacity Holds Two Rolls with 2" or 3" Cores

Ink Set Five-Color UltraChrome Pigment Ink Set

Control Panel Full Color LCD

Stand With Horizontal Catch Basket

Optional Feature Multifunction Scanning Module

Connectivity USB 2.0 and Ethernet

Printing Technology PrecisionCore TFP Printhead with Variable Size Ink Droplet Technology

Maximum Resolution 2880 x 1440 dpi

Print Speed

- Speed: 740 ft² (61.3 m²) per hour
- Production: 310 ft² per hour
- High Quality: 115 ft² per hour
- 25 seconds for D-size 22 x 34" (55.9 x 86.4 cm) plot

Ink Type UltraChrome XD pigment-based ink

Compatible Ink Cartridges

- T692100 Photo Black Ink Cartridge (110 ml)
- T692200 Cyan Ink Cartridge (110 ml)
- T692300 Magenta Black Ink Cartridge (110 ml)
- T692400 Yellow Black Ink Cartridge (110 ml)
- T692500 Matte Black Ink Cartridge (110 ml)
- ... (Full list continues for all cartridge sizes)

Number of Nozzles Per Color: 720, Total: 3600

Line Accuracy ±0.1%

Minimum Line Width 0.7 mil (0.018 mm)

Paper Sizes

- Roll: 10.0-36.0" (25.4-91.4 cm) wide on 2" (5.1 cm) or 3" (7.6 cm) core
- Cut-sheet: 8.3-36" (21.0-91.4 cm) wide

Media Thickness 3.1-59.1 mil (0.08-1.50 mm)

Power Consumption Operating: 61 W, Sleep: <3 W, Off: <0.5 W

Weight 261 lb (118 kg) with stand

Certifications UL (MET), FCC (Class A), CSA, TCSA, CE, EMC, and ENERGY STAR 2.0

Dimensions (WxDxH) 56 x 30 x 45" (142 x 76 x 114 cm) with stand

Packaging Weight 400.0 lb

Box Dimensions (LxWxH) 71.5 x 62.0 x 31.0"
