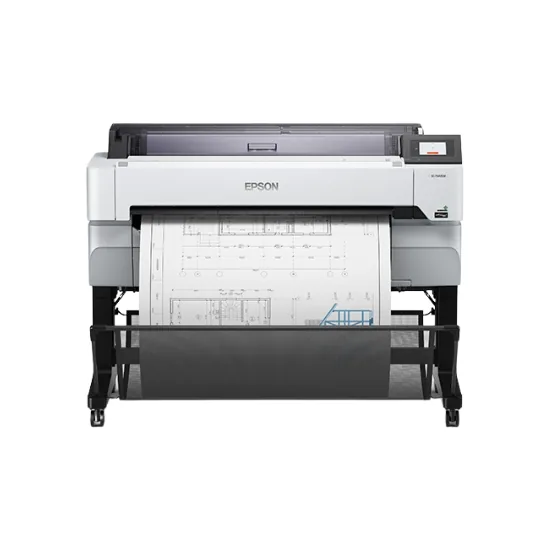

Epson SureColor T5470M 36" Printer and Scanner

Product Description

Enhance collaboration and streamline your workflow with the SureColor T5470M. Combining a 36" printer and integrated scanner in a sleek, space-saving design, the T5470M offers a faster, multifunction solution for printing, sharing and saving your business documents. The innovative print/copy/scan combo produces accurate A1/D-size prints in as fast as 22 seconds1, making it an ideal choice for managing blueprints, charts, posters and more. It comes equipped with a variety of usability features, including an intuitive 4.3" LCD touchscreen, and is designed for use with high-capacity replacement ink cartridges. Plus, the T5470M offers versatile print options, such as easy printing from tablets and smartphones2, for enhanced flexibility and productivity.

Printing Technology PrecisionCore MicroTFP 4-channel, drop-on-demand printhead

Maximum Resolution 2400 x 1200 dpi

Print Speed A1/D-sized print: 22 seconds1

Minimum Ink Droplet Size 4 picoliters; Variable Droplet Technology can produce up to three different sizes per line

Nozzle Configuration Color and monochrome heads; 800 nozzles x 4 channels

Ink Type UltraChrome XD2 pigment ink; 4-color (C, M, Y, K)

Ink Cartridge (110 ml) • Cyan T41W220
• Magenta T41W320
• Yellow T41W420
• Black T41W520

Ink Cartridge (350 ml) • Cyan T41P220
• Magenta T41P320
• Yellow T41P420
• Black T41P520

Operating Systems macOS® 10.13.x, Mac® OS X® 10.12.x, 10.11.x, 10.10.x, 10.9.x, 10.8.x and 10.7.x Windows® 10, 8.1, 7 (32-bit, 64-bit), Windows Vista® and Windows XP7

Temperature Operating: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C) Operating (Recommended): 65 ˚ to 75 ˚F (18 ˚ to 24 ˚C) Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C)

Humidity Operating: 20–80% (no condensation) Operating (Recommended): 45–60% (no condensation) Storage: 5–85% (no condensation)

Sound Level Operating: Approx 50 dB(A) Sleep: Approx 32 dB(A)

Dimensions With Stand: 55" x 28" x 42" (1385 x 696 x 1060 mm)

Weight With Stand: 168 lb (76 kg)

Eco Features ENERGY STAR® qualified RoHS compliant Recyclable product8 Epson America, Inc. is a SmartWay® Transport Partner9

Safety Approvals UL (MET), FCC (Class A), CSA, CE, EMC

In-box Cartridge Fill Volume C, M, Y, K: 110 mL

Retail Cartridge Fill Volume C, M, Y, K: 110 or 350 mL

Ink Cartridge Shelf Life 2 years from printed production date or 6 months after opened Printer is designed for use with Epson cartridges only, not third-party cartridges or ink.

Maximum Paper Width 36" Wide

Minimum Cut-sheet Size 8.27 x 11"

Minimum Paper Width Roll: 10"/Sheet: 8.27"

Maximum Printable Length Limited by application, OS and driver/RIP used

Single Sheet, Top-loading Up to 36" wide

Left/Right Margins 0 to 3 mm each (0.24" total)

Single Roll-to-Roll / Top-loading Roll 36" Wide

Media Core 2” or 3" User-adjustable roll media adapters

Maximum Roll Diameter Up to 6.6"

Media Thickness Up to 11.8 mil

Roll Cutting High-speed internal rotary cutter; auto or manual

Roll Paper Remaining The amount of remaining paper can be controlled from the control panel

BorderFree Print Widths 10.0", 11.8", 13.0", 16.0", 17.0", 19.7", 20.3", 23.0", 24.0", 27.6", 28.7", 33.1", 36.0"

Display 4.3" Touchscreen

Printer Language Epson ESC/P® Raster, HP-GL/2, HP RTL

Interfaces SuperSpeed USB (compatible with USB 3.0 specification), USB Direct, Wireless LAN IEEE (802.11 b/g/n)4, Wired Ethernet (1000 Base-T/100 Base-TX/10 Base-T), Wi-Fi Direct4

Rated Voltage AC 110–240 V

Rated Frequency 50–60 Hz

Rated Current 2.8 A

Power Consumption Printing: Approx. 38 W Ready: Approx. 13 W Sleep: approx. 1.3 W Power Off (Stand By): 0.25 W
