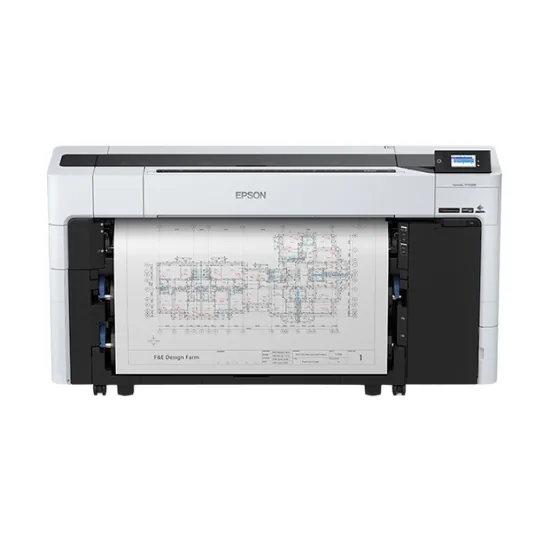

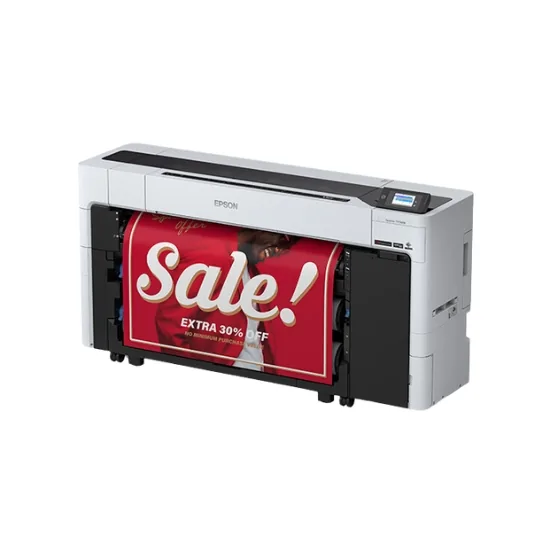

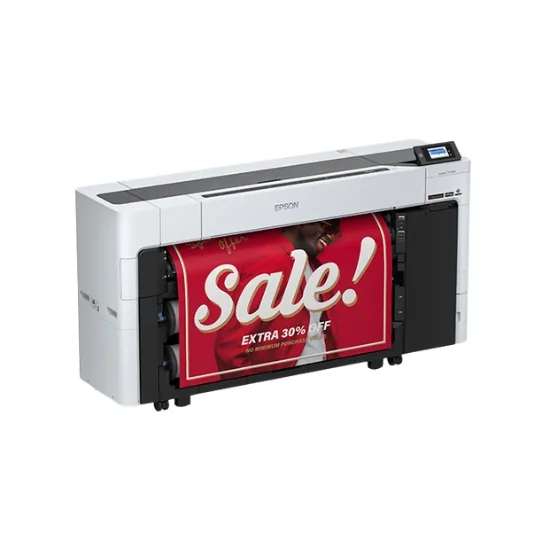

Epson SureColor T5770DR 36" Large-Format Dual-Roll CAD/Technical Printer

Product Description

Epson delivers a first-of-its-kind design that shatters expectations and redefines capability, versatility and efficiency for its class: the SureColor® T5770DR. With a compact footprint and all-front operation, the T5770DR fits where other printers don’t. It’s designed for outstanding quality, sharpness and speed, producing technical drawings at production-class speeds with A1/D-size prints in as little as 16 seconds1. Its innovative six-ink set with dedicated Red Ink opens the door to an extraordinary color gamut for a production printer as well as rich red branding colors. And simple, carefree operation combined with new levels of media flexibility helps users do more using less space—all with a low total cost of ownership (TCO). Add it all up, and this is not just a one-of-a-kind printer—it’s the new benchmark in high-speed CAD and graphics.

Printing Technology PrecisionCore MicroTFP 6-channel, drop-on-demand

Ink Type UltraChrome XD3 pigment ink; 6-color with Red (Cyan, Magenta, Yellow, Red, Matte Black, Photo Black)

Nozzle Configuration 9,600 nozzles (1,600 x 6 channels)

Droplet Technology Smallest Droplet Size: 3.5 picoliters; Variable Droplet Technology can produce up to 3 different sizes per nozzle

Maximum Resolution 2400 x 1200 dpi

Real-Time Black Ink Selection Dedicated Photo and Matte Black Ink channels selected automatically based on media type

Print Speed A1/D Size (Plain Paper): 16 sec A0-Size (Glossy): 32 sec (Speed Mode) A1/D-Size (Glossy): 65 sec (Speed Mode)

Printer Language/Drivers Epson Professional Print Drivers (included), Epson ESC/P® raster, HP-GL/2, HP RTL, Adobe PostScript 3, Adobe PDF 1.7, Adobe Embedded Print Engine (included)

Memory (Built-In) 4 GB

In-Box Cartridge Fill Volume Colors (C, M, Y, R) 240 mL each Black (MK, PK) 240 mL each

Retail Cartridge Fill Volume Colors (C, M, Y, K, R) 110 mL, 350 mL or 700 mL Black (MK, PK) 110 mL, 350 mL or 700 mL

Ink Cartridge Shelf Life 2 years from printed production date or 6 months after opened Printer is designed for use with Epson cartridges only, not third-party cartridges or ink*.

Number of Input Rolls 2 (Input Roll #1 can be used optionally as a take-up reel)

Take-Up Reel Included

Take-Up Reel Configuration Roll print-side in or print-side out (selectable)

Minimum Roll Width Minimum 10"

Maximum Roll Width Up to 36"

2" or 3" Core Diameter User-adjustable roll media spindles

Roll Cutting High-speed internal rotary cutter; auto or manual (replaceable)

Maximum Roll Diameter Up to 6.69"

Maximum Roll Weight 27 lb

Roll Media Thickness 0.07 mm to 0.8 mm

Roll Paper Remaining Printable barcode tracking The amount of remaining paper can be controlled and monitored automatically from the control panel.

Single Sheet, Front or Rear Loading Up to 36" wide

Minimum Sheet Width 8"

Minimum Sheet Length 8"

Sheet Media Max. Thickness Up to 1.5 mm (rigid posterboard)

Line Accuracy ±0.1% or ±0.26 mm (whichever is greater)

Margin Left/Right: 3 mm per side (standard) or 0 mm at BorderFree® widths

Top/Bottom Roll Paper: Min. 3 mm top/ 3 mm bottom Cut Sheet: Min. 3 mm top and 12.7 mm bottom

BorderFree Sizes 10", 13", 16", 17", 20", 24" or 36" wide

Maximum Printable Length 298 ft

Minimum Line Width 0.08 mm

Articulating LCD Display 4.3" touchscreen

USB Expansion Port Optional RFID card reader

Printer Interfaces SuperSpeed USB 3.0, 100BASE-TX/1000BASE-T/IEEE 802.11 b/g/n/ac, USB memory stick, 960 GB (SSD) optional, Adobe Embedded Print Engine

Operating Systems Mac® OS X® 10.9.5 or later, macOS® 11 or later Windows ® 10, Windows 8.1, Windows 8, Windows 7, Windows Vista® , Windows XP (32-bit/64-bit), Windows Server® 2019/2016/2012 R2/2012/2008 R2/2008/2003 R2/2003 SP2 or later

Dimensions (W x D x H) 65" x 20" x 39" (storage and operating)

Dimensions (W x D x H) 65" x 33" x 39" (paper basket extended)

Weight 302 lb

Acoustic Noise Level Operating: 49.6 dBA Sleep: 6.6 dBA

Temperature Operating: 50 ˚F to 95 ˚F (10 ˚C to 35 ˚C) Storage: -4 ˚F to 104 ˚F (-20 ˚C to 40 ˚C)

Relative Humidity Operating: 20%–80% (no condensation) Storage: 5%–85% (no condensation)

Safety Standards USA and Canada (NRTL Certified, CSA/UL 62368-1) Compliant with FCC Class B Requirements

Electrical Requirements Voltage: AC 110 V–240 V Frequency: 50 Hz–60 Hz Current: 3.4 A

Power Consumption Printing: Approx. 80 W Ready: Approx. 32 W Sleep: 2 W Power Off (Stand By): 0.3 W
