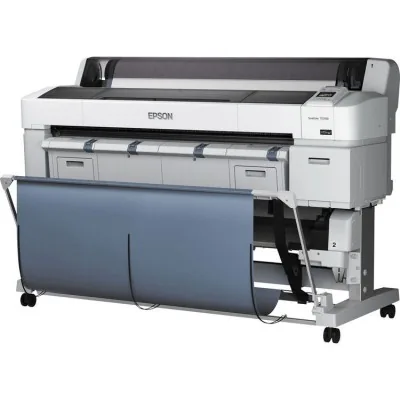

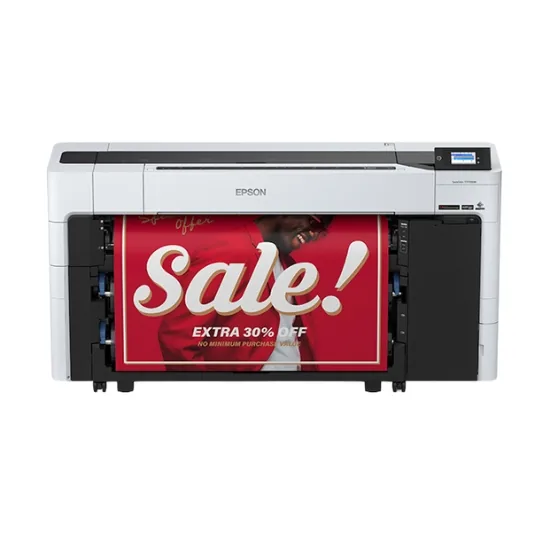

Epson SureColor T7270D 44 inch Dual Roll Large-Format Inkjet Printer

Product Description

Epson SureColor T7270D 44 inch Dual Roll Large-Format Inkjet Printer

High-performance printer with advanced features suitable for large format printing and various media types.

Max Resolution 2880 x 1440 dpi

Max Print Width 44"

Print Speed 22 x 34" Plot in 25 Seconds
Speed: 780 ft² (61.3 m²) per hour
Production: 330 ft² per hour
High Quality: 120 ft² per hour

Handles Media up to 59 mil Thick

Holds Roll Media with 2" or 3" Cores

Five-Color Ink Set UltraChrome Pigment Ink

Control Panel Full Color LCD

Stand with Horizontal Catch Basket Yes

Optional Multifunction Scanning Module Yes

Connectivity USB 2.0
10/100/1000 Base-T Ethernet

Printing Method PrecisionCore TFP Printhead and Micro-Electro-Mechanical Systems with Variable Size Ink Droplet Technology

Ink Type UltraChrome XD pigment-based ink

Ink Cartridge Configuration Cyan, Yellow, Magenta, Matte Black, Photo Black

Compatible Ink Cartridges

- T692100 Photo Black Ink Cartridge (110 ml)
- T692200 Cyan Ink Cartridge (110 ml)
- T692300 Magenta Ink Cartridge (110 ml)
- T692400 Yellow Ink Cartridge (110 ml)
- T692500 Matte Black Ink Cartridge (110 ml)
- T693100 Photo Black Ink Cartridge (350 ml)
- T693200 Cyan Ink Cartridge (350 ml)
- T693300 Magenta Ink Cartridge (350 ml)
- T693400 Yellow Ink Cartridge (350 ml)
- T693500 Matte Black Ink Cartridge (350 ml)
- T694100 Photo Black Ink Cartridge (700 ml)
- T694200 Cyan Ink Cartridge (700 ml)
- T694300 Magenta Ink Cartridge (700 ml)
- T694400 Yellow Ink Cartridge (700 ml)
- T694500 Matte Black Ink Cartridge (700 ml)

Number of Nozzles Per Color: 720, Total: 3600

Line Accuracy ±0.1%

Minimum Line Width 0.7 mil (0.018 mm)

Paper Types Roll
Cut-sheet

Paper Sizes Roll: 10.0-44.0" (25.4-111.8 cm) wide on 2" (5.1 cm) or 3" (7.6 cm) core
Cut-sheet: 8.3-44" (21.0-111.8 cm) wide

Borderless Printing 10" (25.4 cm), 11.8" (30.0 cm), 13" (33.0 cm), 16" (40.6 cm), 17" (43.2 cm), 20.3" (51.6 cm), 23" (58.4 cm), 24" (61.0 cm), 29" (73.7 cm), 33" (83.8 cm), 36" (91.4 cm), 41" (104.1 cm), 44" (111.8 cm)

Media Thickness 3.1-59.1 mil (0.08-1.50 mm)

Interfaces USB 2.0, 10/100/1000 Base-T Ethernet

Print Languages Epson Precision XD and Native HPGL, HPGL/2, HP-RTL

Network Protocol Support TCP/IP IPv4 and IPv6, Apple Bonjour, FTP, WSD, RAW IP, LPD, IPSec, SSL/TLS, IEEE802.1X authentication

Compatible Operating Systems Windows 8, 7, Server 2012, Server 2008
Mac OS X 10.9, 10.8, 10.7

Control Panel Full color LCD with buttons

Power Requirements 100-240 VAC, 50-60 Hz

Power Consumption Operating: 65 W
Sleep: <3 W
Off: <0.5 W

Certifications UL (MET), FCC (Class A), CSA, TCSA, CE, EMC, ENERGY STAR 2.0

Operating Conditions Temperature: 50 to 95°F (10 to 35°C)
Humidity: 20 to 80%, non-condensing

Dimensions (WxDxH) 64 x 30 x 45" (163 x 76 x 114 cm) with stand

Weight 294 lb (133 kg) with stand

Package Weight 150.0 lb

Box Dimensions (LxWxH) 80.0 x 56.0 x 31.0"
