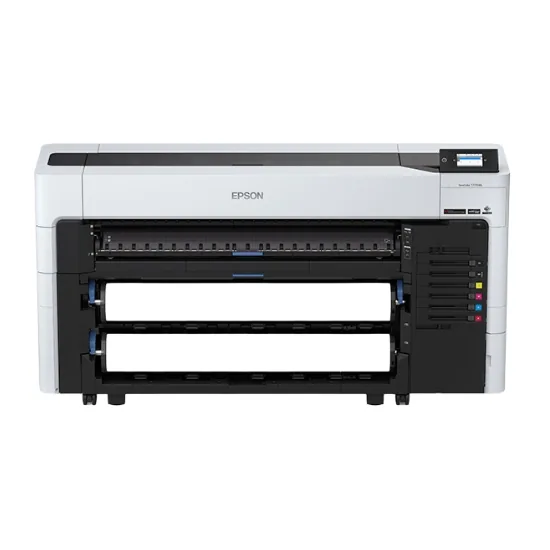

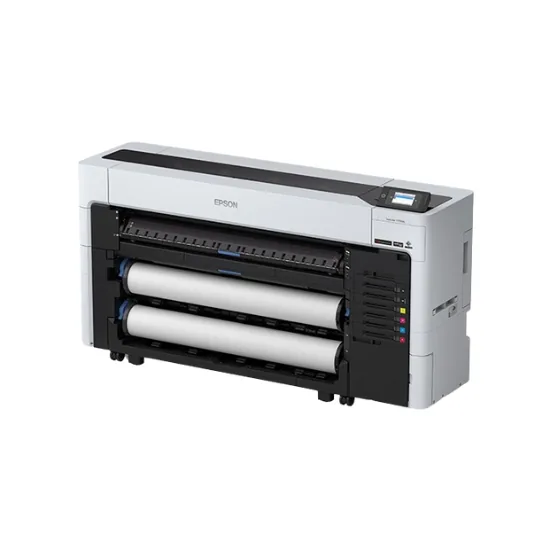

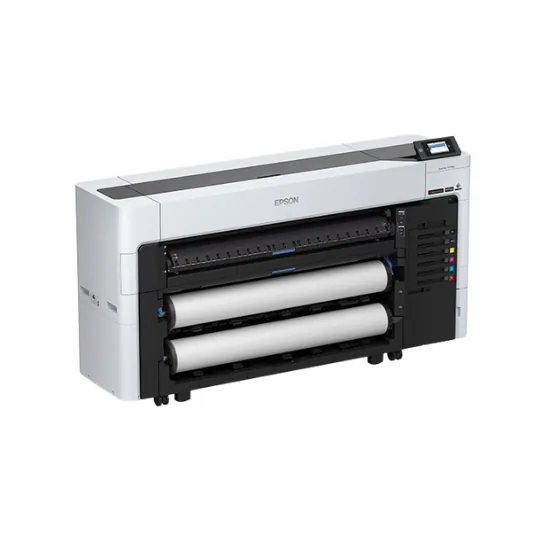

Epson SureColor T7770DL 44" Large-Format Dual-Roll CAD/Technical Printer

Product Description

Epson SureColor® T7770DL Printer Specifications

Epson delivers a first-of-its-kind design that redefines speed, versatility and efficiency for its class: the SureColor® T7770DL. Having the smallest footprint in its class1—up to 25% smaller than its competition1—and full-front operation means the T7770DL fits where other printers don’t. It’s designed for outstanding quality, sharpness and speed, generating technical drawings at production-class speeds over 1,400 ft2/hr2, A1/D-size prints in as little as 16 seconds2, and graphics at speeds up to 300 ft2/hr2. Its innovative UltraChrome® XD3 six-ink set with dedicated Red Ink opens the door to both an extraordinary color gamut for a production printer and rich red branding colors. Built with a 1.6-liter bulk ink pack system (ink sold separately), this high-quality printer provides over double the ink capacity of previous generations for a remarkably low ink cost per milliliter, as well as helps minimize waste when compared to Epson® SureColor T-Series cartridge systems. And simple, carefree operation combined with new levels of versatility and media flexibility helps users do more using less space—all with a low total cost of ownership. Add it all up, and this is not just a one-of-a-kind printer: it’s the new benchmark in high-speed CAD and graphics.

Printing Technology PrecisionCore MicroTFP 6-channel, drop-on-demand

Ink Type UltraChrome XD3 pigment ink; 6-color with Red (Cyan, Magenta, Yellow, Red, Matte Black, Photo Black)

Nozzle Configuration 9,600 nozzles (1,600 x 6 channels)

Droplet Technology Smallest Droplet Size: 3.5 picoliters; Variable Droplet Technology

Maximum Resolution 2400 x 1200 dpi

Print Speed

- CAD (B0 Size Plain Paper): Over 1,400 ft²/hr
- A1/D Size (Plain Paper): 16 sec
- Poster (Glossy): Over 300 ft²/hr

Printer Language/Drivers Epson Professional Print Drivers, HP-GL/2, Adobe® PostScript® 3™, etc.

Memory (Built-In) 4 GB

Retail Ink Pack Fill Volume Colors: 1.6 L, Black (MK, PK): 1.6 L

Number of Input Rolls 2 (Input Roll #1 can be used optionally as a take-up reel)

Take-Up Reel Included

Maximum Roll Width Up to 44"

Roll Media Thickness 0.07 mm to 0.8 mm

Maximum Roll Diameter Up to 6.69"

Roll Cutting High-speed internal rotary cutter; auto or manual (replaceable)

Line Accuracy ±0.1% or ±0.26 mm (whichever is greater)

Minimum Line Width 0.08 mm

Operating Systems Mac® OS X® 10.9.5 or later, Windows® 10, Windows 8.1, Windows 8, etc.

Temperature Operating: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C)

Power Consumption Printing: Approx. 75 W, Ready: Approx. 32 W

Weight 364 lb

Dimensions (W x D x H) 73" x 19.6" x 38.4" (Storage and Operating)
