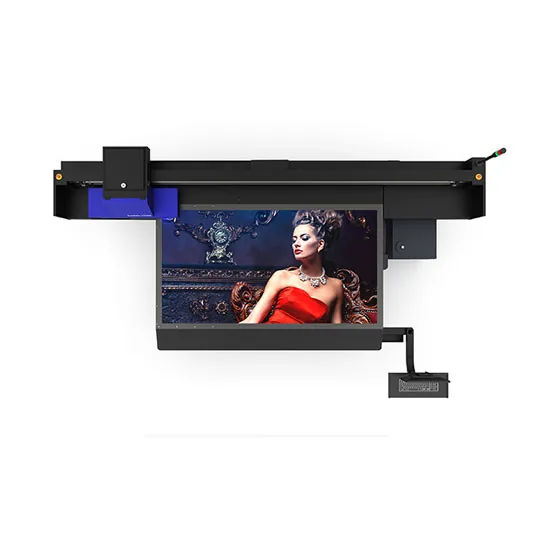

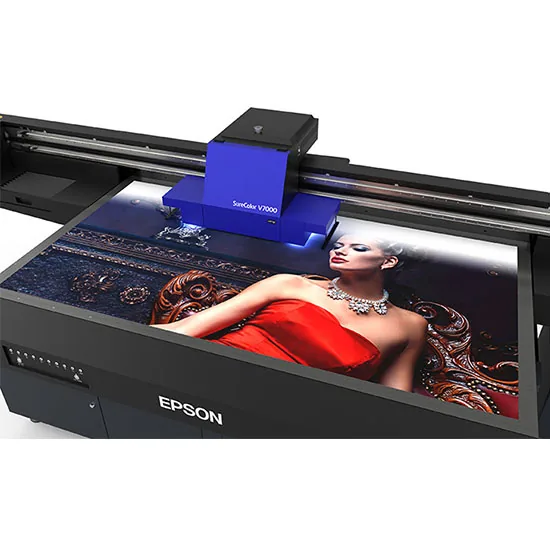

Epson SureColor V7000 10-Color 4 x 8 UV Flatbed Printer

Product Description

Epson SureColor V7000 4' x 8' UV Flatbed Printer Specifications

Experience a new level of image quality, productivity, and convenience with the ultra-productive SureColor V7000 4' x 8' UV flatbed printer. Featuring 10-color UltraChrome® UV Ink, including vivid Red Ink, opaque White Ink, and eye-catching varnish, the SureColor V7000 delivers bright, colorful, tactile prints with low graininess and smooth gradation. Capable of printing on a variety of media, including rigid substrates, this UV flatbed printer is a flexible, reliable solution perfect for printing outstanding-quality outdoor signage, promotional goods, and more. Designed with ease-of-use in mind, the SureColor V7000 enhances efficiency and accuracy with a variety of unique features, including a multi-zone vacuum system that keeps materials securely in place and automatic thickness adjustment to instantly accommodate media up to 3.14" thick.

Printing Technology MicroPiezo® printhead

Maximum Resolution 720 x 1440 dpi

Nozzle Configuration 180 nozzles x 8 lines x 8 heads

Note Consumable: Cleaning (1 L Bottle) Waste Ink Bottle

Ink Type Epson UltraChrome UV Ink: UV Curable Ink

Ink Palette CMYK, Lc, Lm, Gr, R + W and Va

Ink Configuration 10-color 1000mL ink bottles

Replacement Ink • Black T49V110
• Cyan T49V210
• Magenta T49V310
• Yellow T49V410
• Light Cyan T49V510
• Light Magenta T49V610
• Gray T49V710
• Red T49V810
• White T49V910
• Varnish T49VA10
• Cleaning T49V010

Windows PC System Requirement • Windows 7 x64 SP1, Vista x64, 8 x64, 10 x64 CPU: Core i7 or later
• Memory: 8GB or more free space
• Storage: 100GB or more free space
• Communication Interface: Super-speed USB (Type-A)
• Monitor: 1920x1080 or more

Temperature Operating: 15°C - 30°C

Humidity Operating: 20 - 80% (no condensation)

Dimensions Printing: (W)4,635 mm x (D)2,768 mm x (H)1,730 mm

Weight Approx. 1370 kg

Eco Features WEEE, RoHs, REACH

Safety Approvals USA (UL2011, NFPA79) Canada (CAN/CSA-C22.2 No,301, No.0)

Software Included • Utility Software (Bundled in CD) Windows - Epson Edge Print
• Utility Software (Web delivery) Windows - UV Flatbed Controller Epson Control Dashboard; Epson Device Admin

Special Features • Curing method: LED-UV type (included water cooled chiller system)
• Maximum Printing Area: Max 2,500 x 1,250 mm
• Maximum Media Size: Max 2,500 x 1,250 mm
• Maximum Media Thickness: Max 80 mm
• Maximum Media Weight: Max 50 kg/m² (non-concentrated)
• Media Suction System: 4 zone vacuum system
• Volt-Ampere: 5.7 kVA

Interfaces Super-Speed USB (Type-B)

Rated Voltage AC 200 V, 208 V, 220 V, 230 V, 240 V, 50/60 Hz

Rated Current 29 A

Power Consumption Approx. 4.2 kW
