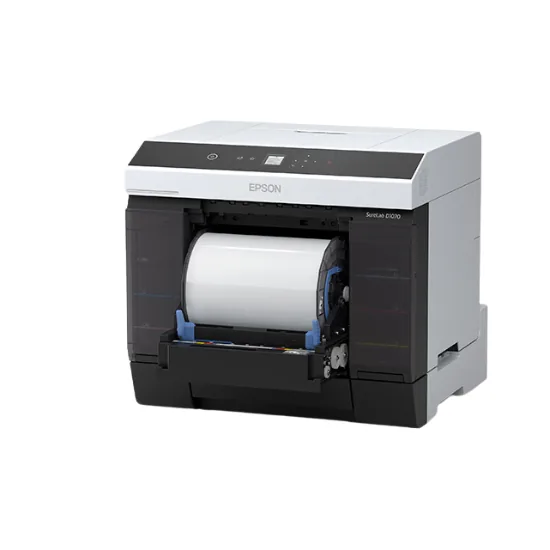

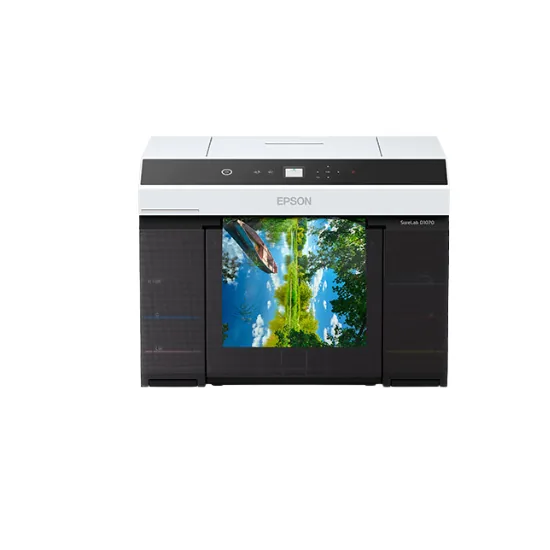

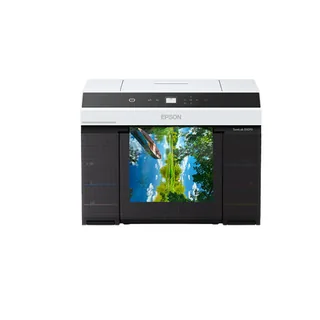

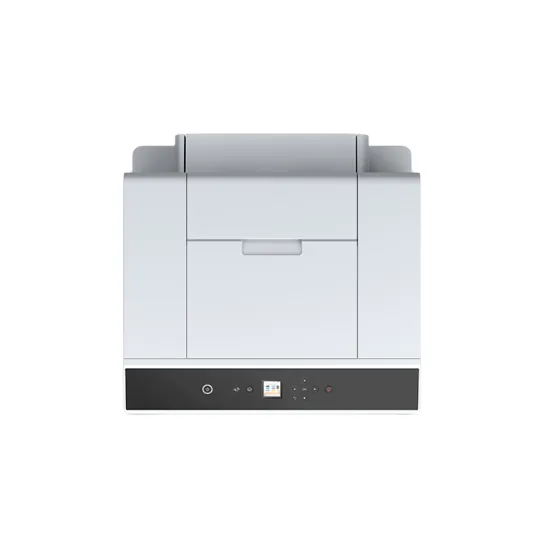

Epson SureLab D1070 Professional Minilab Printer

Product Description

Epson SureLab D1070 Printer Specifications

Take your photo printing to the next level with the Epson SureLab D1070, featuring advanced printing technology and high-quality prints. The printer supports versatile media handling and produces prints with precision and speed. Perfect for businesses looking to offer photo services with exceptional results.

Printing Technology Advanced MicroPiezo AMC printhead

Ink Type UltraChrome D6r-S dye-based ink: 6 colors, 250 mL each

Ink Configuration C, LC, M, LM, Y, K

Nozzle Configuration 180 nozzles x 6-color channel

Droplet Technology Smallest Droplet Size: 2.5 picoliters; Variable Droplet Technology can produce up to three different sizes per nozzle

Maximum Resolution 1440 x 720 dpi

Print Speed 4" x 6" in as fast as 7.8 seconds (720 x 360 dpi)
4" x 6" in as fast as 10.0 seconds (720 x 720 dpi)

Printer Language/Drivers Epson Professional Photographic Print Drivers available for Microsoft® Windows and Apple® macOS®

Epson Intelligent Ink Packs Retail Ink Pack Fill Volume: 250 mL per color x 6 colors total
Ink Pack Shelf Life: 2 years from printed production date or 6 months after opened
Printer is designed for use exclusively with Epson ink packs

Roll Media Handling Finish Glossy, Luster or Matte
Supported Roll Media Width: 3.5", 4", 5", 6", 8", 8.3" (65 m/213' roll)
Core Diameter: 3" core

Printable Area and Accuracy Min. Paper Width: 3.5"
Max. Paper Width: 8.3"
Min. Printable Length: 3.5"
Max. Printable Length: 39.3"
Print Margins: Borderless, Border Defined by Application
Auto Cutter: Yes

Printer Interfaces 1.44" LCD panel
Hi-Speed USB 3.0 (1 port)
100Base-T Ethernet (1 port)
2.4 GHz (802.11n), 5 GHz Wireless (IEEE802.11 b/g/n/ac)

Photographic Workflow Epson Professional Imaging RGB Driver Technology
High-speed Mode: 720 x 360 dpi
Standard Mode: 720 x 720 dpi
High-quality Mode: 1440 x 720 dpi
Supports all standard Windows and Mac raster-based imaging applications
sRGB and Adobe® RGB modes; ICC profile workflow support

System Requirements Mac® OS X® 10.6.8 or later
Windows® 10, 8.1, 8 and 7 (32-bit, 64-bit)

General Dimensions (W x D x H) 18.1" x 14.7" x 13.5" (460 mm x 374 mm x 343 mm) (Storage and Operating)
Approximate Weight: 38.3 lb (17.4 kg), without paper and inks

Acoustic Noise Level Operating: Less than 49 dB(A)
Sleep: Less than 38 dB(a)

Temperature Operating: 50° to 95° F (10° to 35° C)
Operating (Recommended): 50° to 95° F (10° to 35° C)
Storage: -4° to 104° F (-20° to 40° C)

Relative Humidity Operating: 20% – 80% (no condensation)
Operating (Recommended): 20% – 80% (no condensation)
Storage: 5% – 85% (no condensation)

Safety Standards USA and Canada (NRTL certified, CSA/UL 62368-1). Compliant with FCC Class B requirements.

Electrical Requirements Voltage: AC 100 – 120 V, AC 220 – 240 V
Frequency: 50 – 60 Hz

Power Consumption Operating: Approx. 80 W

Limited Warranty and Service Standard 1-year

Country of Origin Philippines

What’s in the Box SureLab D1070 Printer
Spindle Unit
Maintenance Cartridge
AC Power Cable
User Guide Kit (Documentation and Warranty)
Ink packs not included

Available Software Epson Cloud Solution PORT
Epson OrderController
Epson OrderController LE

Eco Features ENERGY STAR® qualified
RoHS compliant
Recyclable product
Epson America, Inc. is a SmartWay® Transport Partner

Ordering Information SureLab D1070 SLD1070SE
Maintenance Cartridge C13S400086
Spindle Unit C12C935981
Optional Duplex Feeder C12C936001
Replacement Roller Kit (Duplex only) C12C936001
Photo media
UltraChrome D6r-S Ink (250 mL)
Cyan Ink Pack C13T46J220
Magenta Ink Pack C13T46J320
Yellow Ink Pack C13T46J420
Light Cyan Ink Pack C13T46J520
Light Magenta Ink Pack C13T46J620
Black Ink Pack C13T46J120
Extended Service Plans
Additional 1-year Epson PreferredSM EPPSLD1000E1 Plus Service (Stackable up to 4 additional years)
