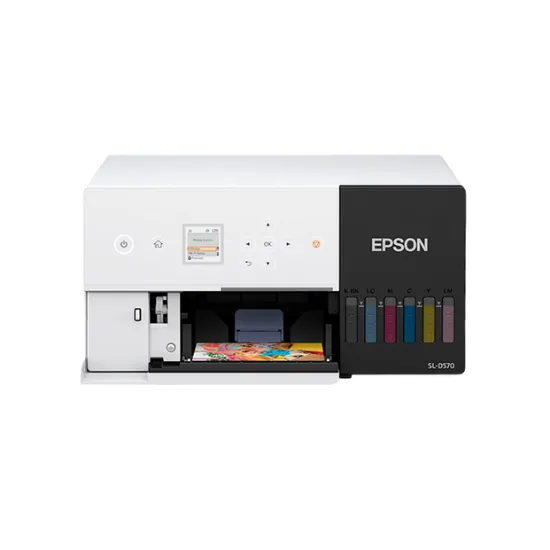

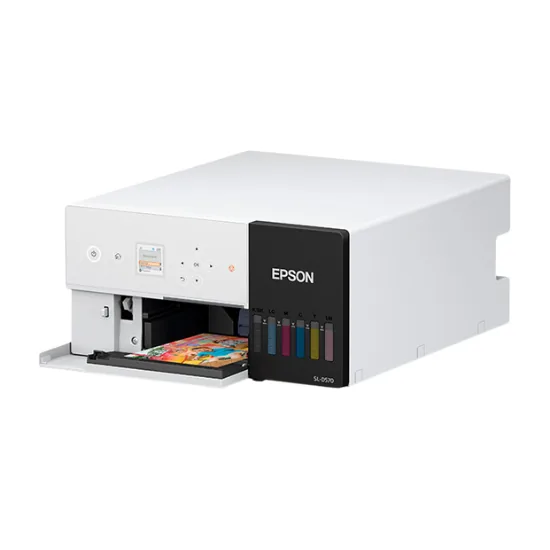

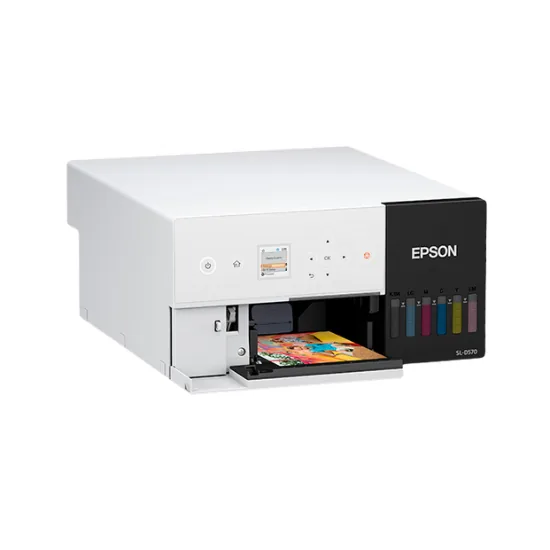

Epson SureLab D570 Professional Minilab Photo Printer

Product Description

Printing Technology Advanced MicroPiezo AMC printhead

Ink Type UltraChrome D6r-S dye-based ink: 6 colors, 70 mL each

Ink Configuration C, LC, M, LM, Y, K

Nozzle Configuration 180 nozzles x 6-color channel

Droplet Technology Smallest Droplet Size: 2.5 picoliters; Variable Droplet Technology can produce up to 3 different sizes per nozzle

Maximum Resolution 1440 x 720 dpi

Print Speed 4" x 6" in as fast as 14 seconds (720 x 360 dpi)

Printer Language/Drivers Epson Professional Photographic Print Drivers available for Microsoft® Windows and Apple® macOS®

Epson Ink Bottles Retail Ink Bottle Fill Volume: 70 mL per color x 6 colors total

Sheet Media Handling Finish: Glossy, Luster or Matte
Supported Sheet Media Sizes: 3.5" x 5", 4" x 6"
Maximum Sheet Capacity: 100 sheets
Maximum Media Thickness: 0.265 mm

Printable Area and Accuracy Minimum Paper Width: 3.5"
Maximum Paper Width: 4"
Minimum Printable Length: 5"
Maximum Printable Length: 6"
Print Margins: Borderless, Border Defined by Application

Auto Cutter No

Printer Interfaces 1.44" LCD panel
Hi-Speed USB 3.0 (1 port)
100Base-T Ethernet (1 port)
2.4 GHz (802.11 n), 5 GHz Wireless (IEEE 802.11 b/g/n/ac)

Photographic Workflow Epson Professional Imaging RGB Driver Technology
High-Speed Mode: 720 x 360 dpi
Standard Mode: 720 x 720 dpi
High-Quality Mode: 1440 x 720 dpi
Supports all standard Windows and Mac raster-based imaging applications
sRGB and Adobe® RGB modes; ICC profile workflow support

System Requirements Mac OS X® 10.6.8 or later; Windows 10, 8.1, 8, and 7 (32-bit, 64-bit)

General Dimensions (W x D x H):
Storage Only: 11.7" x 13.7" x 6" (299 mm x 350 mm x 154 mm)
Printing: 11.7" x 15.7" x 6" (299 mm x 400 mm x 154 mm)
Approximate Weight: 38.3 lb (17.4 kg) without paper and inks

Acoustic Noise Level Operating: Less than 49 dB(A)
Sleep: Less than 38 dB(A)

Temperature Operating (Recommended): 50 °F to 95 °F (10 °C to 35 °C)
Storage: -4 °F to 104 °F (-20 °C to 40 °C)

Relative Humidity Operating (Recommended): 20% – 80% (no condensation)
Storage: 5% – 85% (no condensation)

Safety Standards USA and Canada (NRTL certified, CSA/UL 62368-1); Compliant with FCC Class B requirements

Electrical Requirements Voltage: AC 100 V – 120 V, AC 220 V – 240 V; Frequency: 50 Hz – 60 Hz

Power Consumption Operating: Approx. 18 W

Limited Warranty and Service Standard 3-year warranty

Country of Origin Philippines

What’s Included SureLab D570 Printer, Maintenance Box, AC Power Cable, User Guide Kit (Documentation and Warranty); Ink bottles not included

Available Software Epson Cloud Solution PORT
Epson OrderController
Epson OrderController LE

Eco Features RoHS compliant; Recyclable product; Epson America, Inc. is a SmartWay® Transport Partner

Ordering Information SureLab D570 SLD570SE

Maintenance Box C12C934591

Roller Assembly Kit C13S210138

UltraChrome D6r-S Ink (70 mL) Black Ink Bottle T54C120
Cyan Ink Bottle T54C220
Magenta Ink Bottle T54C320
Yellow Ink Bottle T54C420
Light Cyan Ink Bottle T54C520
Light Magenta Ink Bottle T54C620

Warranty Epson strongly recommends the use of genuine ink to ensure optimal print quality and performance. Use of non-genuine ink may cause damage not covered by the printer’s limited warranty.

Epson PreferredSM Plus Extended Service Plans 1-Year Next-Business-Day Exchange EPPSLD500E1
2-Year Next-Business-Day Exchange EPPSLD500E2
(Plans are stackable for up to 5 continuous years of coverage)
