Name: Graphtec FC8000-100
Brand: Graphtec
SKU: OC-751
Price: 2650.00 USD
Availability: InStock

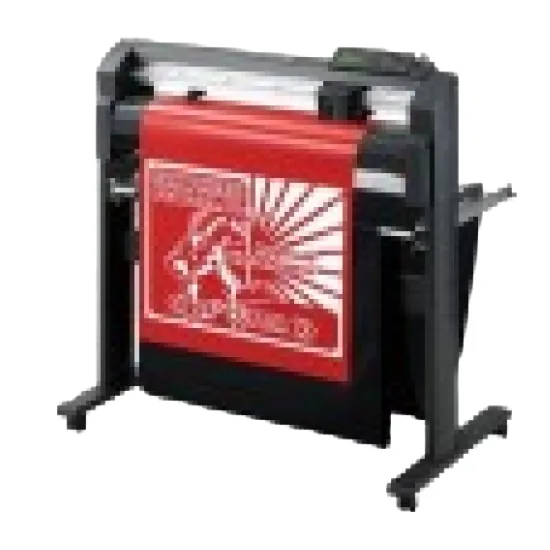

Graphtec FC8000-100 42-Inch Cutting Plotter

The Graphtec FC8000-100 is a professional 42-inch cutting plotter designed for demanding cutting and plotting applications. Part of the FC8000 series, it combines high-speed performance, precise cutting accuracy, and versatile media handling to support sign-making, graphics production, vehicle graphics, and other professional applications.

Powered by a 32-bit CPU and a digital servo friction-feed system featuring MicroGritroll™ drive technology, the FC8000-100 delivers cutting speeds of up to 1,485 mm/s at a 45-degree angle. Its 1,067 mm maximum cutting width and compatibility with media up to 1,224 mm wide make it suitable for a wide range of production requirements.

Key Features

42-inch cutting width: Maximum cutting width of 1,067 mm in expanded mode.
High-speed performance: Cutting speed of up to 1,485 mm/s (58.5 in/s) at a 45-degree angle.
Precision cutting: Mechanical resolution of 0.005 mm for detailed cutting and plotting tasks.
Digital servo technology: Friction-feed configuration with MicroGritroll™ drive.
Adjustable cutting pressure: 20–600 g across 48 steps.
Flexible tool support: Supports a cutting blade, plotting pen, or optional pouncing tool.
Wide media compatibility: Handles self-adhesive vinyl, reflective films, window films, paint protection film, and other supported materials.
Multiple connectivity options: Standard RS-232C and USB 2.0 Full Speed interfaces, with optional Ethernet.
Professional operation: Features a backlit 3-inch graphic LCD display.

Technical Specifications

Specification	Details
Model	Graphtec FC8000-100
CPU	32-bit
Configuration	Digital servo friction feed with MicroGritroll™ drive
Maximum cutting width	1,067 mm (42 in), expanded mode
Maximum media width	1,224 mm (48.2 in)
Minimum media width	50 mm (2 in)
Maximum cross-cut area	1,191 mm (46.9 in)
Maximum cutting speed	1,485 mm/s (58.5 in/s) at 45°
Maximum axial acceleration	4.0 G (39.2 m/s²)
Cutting pressure	20–600 g (0.196–5.88 N), 48 steps
Mechanical resolution	0.005 mm (0.0002 in)
Programmable resolution	GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm; HP-GL™: 0.025 mm
Repeatability	Maximum 0.1 mm over 2 m, under specified media and operating conditions
Buffer memory	2 MB
Command sets	GP-GL / HP-GL™
LCD display	3-inch backlit graphic LCD

Tools and Accessories

Item	Supported Types
Tool configuration	One cutting blade, plotting pen, or pouncing tool at a time
Optional accessory	Second pen holder
Blade types	Supersteel blades (0.9 mm or 1.5 mm); Sapphire blade (1.5 mm)
Pen types	Water-based fiber-tip, oil-based ballpoint, and disposable ink pens
Optional pouncing tool	PPA33-TP12, 1.2 mm pin diameter

Compatible Media

The FC8000-100 supports a wide range of media for professional graphics and sign production, including:

Self-adhesive vinyl film
Diamond-grade film
Fluorescent and reflective films
Amberlith™ and Rubylith™ masking films
Window film
High-intensity reflective film, subject to the blade and backing requirements below
Paint protection film up to 0.25 mm thick
Sandblast resist rubber up to 1 mm thick
Pouncing paper from 0.06 to 0.13 mm thick

Connectivity and Operating Systems

Specification	Details
Standard interfaces	RS-232C / USB 2.0 Full Speed
Optional interface	Ethernet 10BASE-T / 100BASE-TX
Listed compatible operating systems	Windows 2000, Windows XP, Windows Vista, and Macintosh OS 10.2 or later
Certifications	UL, cUL, CE marking, RoHS, China RoHS

Operating system note: The listed operating systems are legacy versions. Verify driver availability and compatibility with your current computer, operating system, and cutting software before purchasing.

Power and Operating Environment

Specification	Details
Power supply	100–240 VAC, 50–60 Hz, automatic switching
Maximum power consumption	160 VA
Operating temperature	+10°C to +35°C
Operating humidity	35%–75%, non-condensing
Guaranteed accuracy temperature	+16°C to +32°C
Guaranteed accuracy humidity	35%–70%, non-condensing

Physical Specifications

Specification	Details
Dimensions (W × D × H)	1,578 × 715 × 1,219 mm (62.1 × 28.1 × 48 in), including stand
Weight	46 kg (101.4 lbs), including stand
Dimensional tolerance	±5 mm

Recommended Applications

Sign and banner production
Vinyl lettering and decals
Vehicle graphics and fleet branding
Window graphics and display graphics
Reflective safety graphics
Paint protection film cutting, within supported thickness limits
Masking and stencil production
Plotting and pouncing applications

Important Notes

The CB15UB cutter blade is recommended for cutting characters 10 mm or smaller.
When cutting high-intensity reflective film, use the CB15UA cutter blade and a reinforced backing sheet.
Repeatability is specified under Graphtec's recommended media and operating conditions.
The source specification lists the minimum character size as “13 mm (0.125 in).” These values appear inconsistent and should be verified against official documentation before publication.
Actual cutting performance depends on the media, blade condition, cutting settings, and operating environment.

Product Summary: The Graphtec FC8000-100 is a professional 42-inch cutting plotter built for high-speed, precision graphics production. Its wide media support, adjustable cutting pressure, and flexible tool options make it suitable for sign shops, print businesses, and professional graphics workshops.
