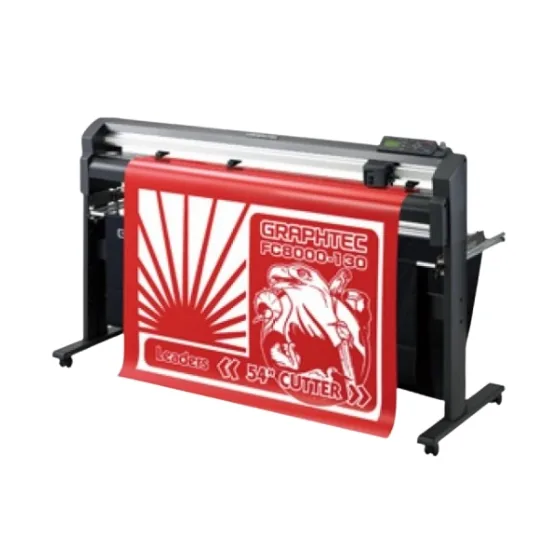

Graphtec FC8000-130 54-Inch Professional Cutting Plotter

The Graphtec FC8000-130 is a professional wide-format cutting plotter designed for high-volume graphics production, signage, vinyl lettering, vehicle graphics, and specialized cutting applications. With a maximum cutting width of 1,372 mm (54 inches) and support for media up to 1,529 mm (60.2 inches) wide, it provides a versatile solution for businesses that require a combination of production capacity, speed, and precision.

Part of Graphtec's FC8000 series, the FC8000-130 features a digital servo system and MicroGritroll™ drive technology to support accurate movement and consistent media feeding. Its adjustable cutting pressure, multiple tool options, and broad media compatibility make it suitable for professional sign-making and graphics production environments.

Key Features

54-inch maximum cutting width: Up to 1,372 mm in expanded mode.
Wide media handling: Supports media up to 1,529 mm (60.2 inches) wide.
High-speed cutting: Maximum cutting speed of 1,485 mm/s (58.5 in/s) at a 45° angle.
Digital servo technology: Supports precise movement control and reliable cutting performance.
MicroGritroll™ drive system: Designed for friction-feed media handling.
Adjustable cutting pressure: 20–600 g across 48 settings.
Fine mechanical resolution: 0.005 mm (0.0002 inches).
Versatile tool support: Compatible with cutting blades, plotting pens, and an optional pouncing tool.
Multiple connectivity options: Standard USB 2.0 and RS-232C, with optional Ethernet.
Backlit graphic LCD: Features a 3-inch display for machine operation.

Technical Specifications

Specification	Details
Model	Graphtec FC8000-130
CPU	32-bit
Configuration	Digital servo, friction feed with MicroGritroll™ drive
Maximum cutting width	1,372 mm (54 inches), expanded mode
Maximum media width	1,529 mm (60.2 inches)
Minimum media width	50 mm (2 inches)
Maximum cross-cut area	1,496 mm (58.9 inches)
Maximum cutting speed	1,485 mm/s (58.5 in/s) at a 45° angle
Maximum axial acceleration	4.0 G (39.2 m/s²)
Cutting pressure	20–600 g (0.196–5.88 N), adjustable in 48 steps
Mechanical resolution	0.005 mm (0.0002 inches)
Programmable resolution (GP-GL)	0.1 / 0.05 / 0.025 / 0.01 mm
Programmable resolution (HP-GL)	0.025 mm
Repeatability	Maximum 0.1 mm per 2 m under specified media and operating conditions
Buffer memory	2 MB
Command sets	GP-GL / HP-GL™
Display	3-inch backlit graphic LCD

Supported Tools and Accessories

The FC8000-130 accommodates one tool at a time: a cutting blade, plotting pen, or pouncing tool. An optional second pen holder is available.

Tool Type	Details
Cutting blades	Supersteel blades, 0.9 mm or 1.5 mm; Sapphire blade, 1.5 mm
Plotting pens	Water-based fiber-tip, oil-based ballpoint, and disposable ink pens
Pouncing tool	Optional PPA33-TP12, with a 1.2 mm pin diameter
Second pen holder	Optional

Compatible Media

The Graphtec FC8000-130 supports a wide range of materials for professional graphics and specialized cutting applications, including:

Self-adhesive vinyl film.
Diamond-grade film.
Fluorescent film.
Reflective film and high-intensity reflective film.
Amberlith™ and Rubylith™.
Window film.
Paint protection film up to 0.25 mm thick.
Sandblast resist rubber up to 1 mm thick.
Regular paper from 0.06 to 0.13 mm thick for pouncing.

Cutting recommendations: High-intensity reflective film requires the CB15UA cutter blade and a reinforced backing sheet. The CB15UB cutter blade is recommended for cutting characters measuring 10 mm or smaller.

Connectivity and Operating System Compatibility

USB 2.0 Full Speed.
RS-232C standard interface.
Optional Ethernet: 10 BASE-T / 100 BASE-TX.
GP-GL and HP-GL™ command support.
Operating systems listed in the source specifications: Windows 2000, Windows XP, Windows Vista, and Macintosh OS 10.2 or later.

The listed operating systems reflect the original FC8000 documentation. Compatibility with current computers, operating systems, and design software should be verified before purchase or installation.

Physical and Electrical Specifications

External dimensions with stand (W × D × H)	1,878 × 715 × 1,219 mm (73.9 × 28.1 × 48 inches)
Weight with stand	54 kg (119 lbs)
Power supply	100–240 VAC, 50–60 Hz, automatic switching
Maximum power consumption	160 VA
Operating temperature	10°C to 35°C
Operating humidity	35%–75%, non-condensing
Guaranteed accuracy temperature	16°C to 32°C
Guaranteed accuracy humidity	35%–70%, non-condensing
Certifications	UL, cUL, CE marking, RoHS, China RoHS
Dimensional tolerance	±5 mm

Recommended Applications

Wide-format vinyl and sticker production.
Commercial signage and lettering.
Vehicle graphics and reflective graphics.
Window graphics and glass decoration.
Paint protection film cutting, subject to material specifications.
Pattern production and plotting applications.
Specialized pouncing applications with the optional tool.

Important Specification Notes

The supplied source lists the minimum character size as “13 mm (0.125 in),” which is inconsistent between metric and imperial units. This figure should be verified against official Graphtec documentation before being used as a technical claim. Actual cutting performance may vary depending on media type, blade selection, machine settings, and operating conditions.

Graphtec FC8000-130 is a professional 54-inch cutting plotter for businesses that need a balance of wide-format capacity, high-speed operation, precision, and flexibility across a variety of graphic materials.
