Graphtec FC8000-75

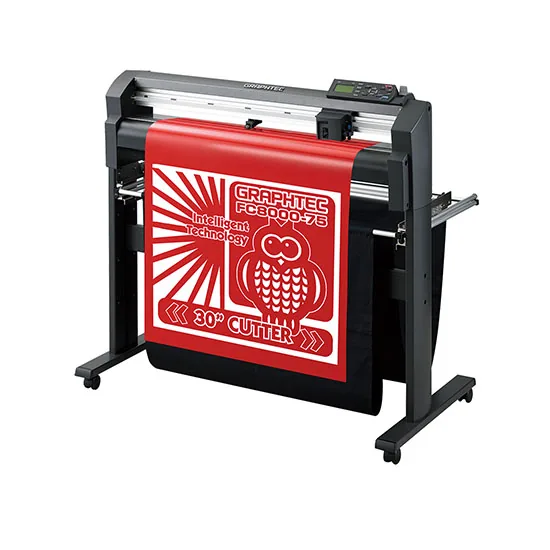

Graphtec FC8000-75 (30″) Cutting Plotter

The Graphtec FC8000-75 is a professional 30-inch cutting plotter designed for high-throughput cutting and plotting applications. Part of Graphtec's FC8000 series, it combines a digital servo drive, MicroGritroll™ drive technology, and precise cutting control to support demanding graphics and sign-making workflows.

With a maximum cutting speed of 1,485 mm/s, cutting pressure adjustable from 20 g to 600 g, and a maximum cutting width of 762 mm, the FC8000-75 is suitable for vinyl lettering, decals, signage, and other compatible media applications.

Key Features

• 30-inch cutting width: Maximum cutting width of 762 mm in expanded mode.
• Wide media compatibility: Supports media widths from 50 mm to 920 mm.
• High-speed performance: Maximum cutting speed of 1,485 mm/s at a 45° angle.
• Adjustable cutting pressure: 20 g to 600 g across 48 steps.
• Digital servo drive: Combined with friction-feed and MicroGritroll™ drive technology.
• Precision resolution: Mechanical resolution of 0.005 mm.
• Multiple tool support: Accepts a cutting blade, plotting pen, or pouncing tool; an optional second penholder is available.
• Flexible connectivity: Standard RS-232C and USB 2.0 interfaces, with optional Ethernet.
• Backlit LCD: Three-inch graphic display for machine operation.

Technical Specifications — FC8000-75

Specification	Details
Model	Graphtec FC8000-75
Cutting width class	30 inches
CPU	32-bit
Configuration	Digital servo friction feed with MicroGritroll™ drive
Maximum cutting width (expanded mode)	762 mm (30 in)
Maximum media width	920 mm (36.2 in)
Minimum media width	50 mm (2 in)
Maximum cross-cut area	886 mm (34.9 in)
Maximum cutting speed	1,485 mm/s (58.5 in/s) at a 45° angle
Maximum axial acceleration	4.0 G (39.2 m/s²)
Cutting pressure	20 g to 600 g (0.196 N to 5.88 N), in 48 steps
Minimum character size	3 mm (0.125 in) alphanumeric, Helvetica medium font as specified
Mechanical resolution	0.005 mm (0.0002 in)
Programmable resolution	GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm; HP-GL™: 0.025 mm
Repeatability	Maximum 0.1 mm over 2 m (0.0039 in over 80 in), under specified conditions
Tool configuration	One cutting blade, plotting pen, or pouncing tool; optional second penholder
Buffer memory	2 MB
LCD display	3-inch backlit graphic LCD

Supported Tools and Media

Tool Compatibility

Tool	Specification
Cutting blades	Supersteel blades, 0.9 mm or 1.5 mm; sapphire blade, 1.5 mm
Plotting pens	Water-based fiber-tip pens, oil-based ballpoint pens, and disposable ink pens
Pouncing tool	Optional PPA33-TP12 with a 1.2 mm pin diameter
Optional second penholder	Allows an additional penholder configuration

Compatible Media

• Self-adhesive vinyl film.
• Diamond-grade, fluorescent, reflective, and high-intensity reflective film.
• Amberlith™ and Rubylith™ masking films.
• Window film and paint protection film.
• Supported films up to 0.25 mm thick.
• Sandblast resist rubber up to 1 mm thick.
• Regular paper from 0.06 mm to 0.13 mm thick for pouncing.

Special media note: For high-intensity reflective film, the specified CB15UA cutter blade and a reinforced backing sheet must be used. For characters 10 mm or smaller, the CB15UB cutter blade is recommended, according to the supplied specifications.

Connectivity and Command Compatibility

Item	Details
Standard interfaces	RS-232C and USB 2.0 Full Speed
Optional interface	Ethernet 10BASE-T / 100BASE-TX
Command sets	GP-GL and HP-GL™
Compatible operating systems	Windows 2000, Windows XP, Windows Vista, and Macintosh OS 10.2 or later, as listed in the supplied specifications

Compatibility note: The FC8000-75 specifications list older operating systems. Verify driver availability and compatibility with your current computer before purchasing or installing the plotter.

Physical and Electrical Specifications

Specification	Details
Dimensions (W × D × H), including stand	Approximately 1,278 × 715 × 1,219 mm (50.3 × 28.1 × 48 in)
Weight, including stand	Approximately 42 kg (92.6 lbs)
Power supply	100–240 V AC, 50–60 Hz, auto-switching
Maximum power consumption	160 VA
Operating temperature	+10°C to +35°C
Operating humidity	35% to 75% RH, non-condensing
Guaranteed accuracy temperature	+16°C to +32°C
Guaranteed accuracy humidity	35% to 70% RH, non-condensing
Certifications	UL, cUL, CE marking, RoHS, China RoHS
Dimensional tolerance	±5 mm

FC8000 Series Model Comparison

The FC8000 series is available in five models to accommodate different media widths and production requirements.

Specification	FC8000-60	FC8000-75	FC8000-100	FC8000-130	FC8000-160
Nominal cutting width	24 in	30 in	42 in	54 in	64 in
Maximum media width	770 mm	920 mm	1,224 mm	1,529 mm	1,850 mm
Maximum cutting width	610 mm	762 mm	1,067 mm	1,372 mm	1,626 mm
Minimum media width	50 mm	50 mm	50 mm	50 mm	50 mm
Maximum cross-cut area	734 mm	886 mm	1,191 mm	1,496 mm	1,750 mm
Dimensions (W × D × H), including stand	1,128 × 715 × 1,219 mm	1,278 × 715 × 1,219 mm	1,578 × 715 × 1,219 mm	1,878 × 715 × 1,219 mm	2,138 × 715 × 1,219 mm
Weight, including stand	38 kg	42 kg	46 kg	54 kg	59 kg

Recommended Applications

• Sign-making and commercial graphics production.
• Vinyl lettering, decals, and vehicle graphics.
• Window graphics and paint protection film cutting.
• Contour cutting and plotting projects.
• Reflective and specialty film applications.
• Sandblast resist rubber cutting within the specified thickness.
• Pouncing applications using the required optional tool.

Important Notes

• Repeatability specifications apply when using Graphtec-specified media and operating conditions.
• Cutting results depend on blade selection, media thickness, media condition, and machine setup.
• The pouncing tool and optional second penholder are not included in the basic tool configuration.
• Ethernet connectivity is listed as optional in the supplied specifications.
• Confirm the machine's condition, included accessories, and software compatibility when purchasing a used unit.

Graphtec FC8000-75: A professional 30-inch cutting plotter built for productive and precise graphics work, offering high-speed cutting, adjustable cutting pressure, versatile media support, and reliable performance for sign-making businesses.
