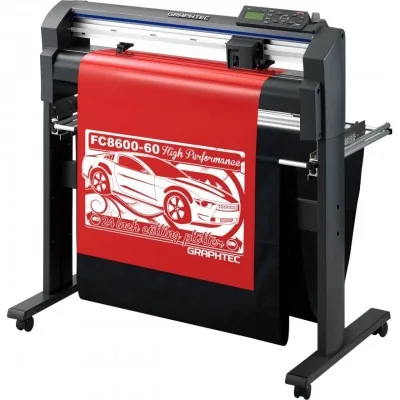

Graphtec FC8600-60 (24″)

Graphtec FC8600-60 24-Inch Professional Cutting Plotter

The Graphtec FC8600-60 is a professional 24-inch roll-fed cutting plotter designed for sign-making businesses, advertising agencies, print shops, and graphics production professionals. As part of the Graphtec FC8600 series, it combines high-speed cutting, adjustable cutting force, precision media tracking, and advanced optical registration mark recognition to support a wide range of commercial cutting applications.

Equipped with a 32-bit CPU and digital servo drive system, the FC8600-60 delivers a maximum cutting speed of 1,485 mm/s and a maximum cutting force of 5.88 N (600 gf). Its maximum cutting area is 610 mm wide by 50 m long, making it suitable for vinyl lettering, decals, labels, vehicle graphics, signage, and other compatible roll-media projects.

Key Product Highlights

• 24-inch professional cutting plotter.
• Maximum cutting speed of 1,485 mm/s.
• Maximum cutting force of 5.88 N (600 gf).
• Guaranteed-accuracy cutting area of 590 mm × 15 m.
• ARMS 5.0 optical registration mark sensing system.
• Built-in light pointer and cross-cutter.
• Supports perforation cutting and pouncing with the required optional tool.
• USB 2.0 High Speed, RS-232C, and Ethernet interfaces.
• Includes stand, media stocker, basket, blade holder, and standard accessories.

Graphtec FC8600 Series Model Comparison

The FC8600 series is available in five cutting-width configurations. The FC8600-60 is the 24-inch model, designed for businesses that need professional cutting performance in a more compact format.

Specification	FC8600-60	FC8600-75	FC8600-100	FC8600-130	FC8600-160
Nominal Cutting Width	24 in.	30 in.	42 in.	54 in.	64 in.
Maximum Cutting Area Width	610 mm	762 mm	1,067 mm	1,372 mm	1,626 mm
Maximum Cutting Area Length	50 m	50 m	50 m	50 m	50 m
Maximum Media Width	770 mm	920 mm	1,224 mm	1,529 mm	1,850 mm
Maximum Cross-Cut Width	734 mm	886 mm	1,191 mm	1,496 mm	1,750 mm
Push Rollers	2	2	3	3	4
Guaranteed-Accuracy Cutting Area	590 mm × 15 m	742 mm × 15 m	1,043 mm × 10 m; 894 mm × 15 m	1,342 mm × 10 m; 894 mm × 15 m	1,603 mm × 10 m; 894 mm × 15 m
Approximate Weight, Including Stand	38 kg	42 kg	46 kg	50 kg	59 kg

Technical Specifications

Product Name	Graphtec FC8600-60
Product Type	Professional Roll-Fed Cutting Plotter
Nominal Cutting Width	24 inches
CPU	32-bit CPU
Configuration	Grit rolling type
Drive Method	Digital servo drive
Maximum Cutting Area	610 mm × 50 m
Guaranteed-Accuracy Cutting Area	590 mm × 15 m
Mountable Media Width	Minimum 50 mm; maximum 770 mm
Maximum Cross-Cut Width	734 mm
Number of Push Rollers	2 rollers
Maximum Cutting Speed	1,485 mm/s at 45-degree direction
Axial Acceleration	Maximum 39.2 m/s² (4 G), adjustable in 8 steps
Cutting Force	Maximum 5.88 N (600 gf), adjustable in 48 steps
Mechanical Resolution	0.005 mm
Programmable Resolution	GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm; HP-GL: 0.025 mm
Distance Accuracy	Maximum 0.1 mm or 0.1% of plotted length
Repeatability	Maximum 0.1 mm for plotting up to 2 m, excluding media expansion and contraction
Minimum Character Size	Approximately 3 mm alphanumeric, depending on font and media
Standard Tool Capacity	1 tool: cutting blade, plotting pen, or pouncing tool
Optional Tool Configuration	2 tools: cutting blade and plotting pen, with optional second pen holder
Blade Types	Supersteel, 0.9 mm or 1.5 mm diameter
Pen Types	Water-based fiber-tip pen and oil-based ballpoint pen
Pouncing Tool	Steel pin, 1.2 mm diameter; optional PPA 33-TP12 required
Light Pointer	Built into the tool carriage
Cross-Cutter	Built into the tool carriage
Perforation Cutting	Supported through force control
Registration Mark System	ARMS 5.0 optical sensor; segment area and multiple-mark compensation, four-point axis alignment, and automatic mark detection
Standard Interfaces	USB 2.0 High Speed, RS-232C, Ethernet 10BASE-T/100BASE-TX
Buffer Memory	2 MB
Command Sets	GP-GL and HP-GL emulation; menu selection, command selection, or auto select
Condition Settings	Dual configuration with 2 user settings and 8 separate condition settings for each user
Display	3-inch backlit graphic LCD
Power Supply	100–240 V AC, 50/60 Hz
Power Consumption	Maximum 160 VA
Operating Environment	10–35°C; 35–75% relative humidity, non-condensing
Guaranteed-Accuracy Environment	16–32°C; 35–70% relative humidity, non-condensing
External Dimensions (W × D × H)	Approximately 1,128 × 715 × 1,219 mm
Weight	Approximately 38 kg, including stand
Compatible Standards	UL60950-1, cUL, CE mark for low voltage and EMC, KC mark for low voltage and EMC, FCC-A, EN55022-A

Advanced Cutting Features

ARMS 5.0 Optical Registration Mark Sensing

The FC8600-60 uses an optical registration mark sensing system to identify printed marks for contour-cutting workflows. Features include segment area and multiple-mark compensation, four-point axis alignment, and automatic mark detection to help align cutting paths with printed graphics.

Reliable Long-Length Tracking

The FC8600-60 supports a guaranteed-accuracy cutting area of 590 mm × 15 m under specified conditions. Its media feed system and push rollers help maintain stable movement during long-length jobs. Actual tracking performance depends on media characteristics, loading, and operating conditions.

Adjustable Cutting Force and Acceleration

The cutting force can be adjusted in 48 steps, while axial acceleration can be configured in 8 steps. This flexibility allows operators to optimize cutting conditions for compatible vinyl, reflective films, and other supported materials.

Built-In Cross-Cutter and Light Pointer

The integrated cross-cutter assists with separating completed media from the roll, while the built-in light pointer helps operators position the tool for cutting operations.

Supported Media

• Self-adhesive vinyl marking film up to 0.25 mm thick.
• Fluorescent marking film.
• Reflective and high-intensity reflective film.
• Sandblast resist rubber up to 1 mm thick.
• Regular paper from 0.06 to 0.13 mm thick for pouncing applications.

Material compatibility depends on thickness, backing, blade selection, and cutting conditions. Test unfamiliar media before beginning production.

Compatible Software and Operating Systems

The supplied software package includes:

• Windows Driver
• Plotter Controller
• Graphtec Studio
• Cutting Master 3

Listed operating system compatibility:

• Windows 10, Windows 8.1, Windows 8, Windows 7, and Windows Vista.
• Mac OS X 10.6 through 10.10.

Software Compatibility Notice: The operating systems listed are based on the supplied product specifications and include older platforms. Confirm driver availability and software compatibility with your current computer and operating system before purchasing or integrating the plotter into your workflow.

Standard Accessories Included

Accessory	Quantity	Description
Power Cord	1	Cord type varies by destination market.
Cutting Blade Holder	1	PHP33-CB09N-HS
Cutting Blade	1	CB09UB
Fiber-Tip Pen Holder	1	PHP31-FIBER
Water-Based Fiber-Tip Pen	1	KF700-BK, black ink
Stand	1 set	Stand parts kit
Media Stocker	1 set	Stock rollers and mounting brackets installed on the stand
Basket	1 set	PG0039 parts kit for FC8600-60
USB Cable	1	USB 2.0 cable, 2.9 m long
DVD-ROM	1	PDF user manual, Windows driver, Plotter Controller, Graphtec Studio, and Cutting Master 3
Printed Manuals	2	Quick Start Guide and Safety Guide

Recommended Applications

• Vinyl lettering and small-to-medium signage.
• Vehicle decals and graphics.
• Retail displays and promotional graphics.
• Contour cutting of printed stickers and labels.
• Reflective film graphics for compatible applications.
• Sandblast resist rubber cutting.
• Professional graphics finishing and roll-media production.

Important Product Notes

• Cutting speed, accuracy, and tracking performance depend on the specified media and operating conditions.
• Guaranteed accuracy excludes media expansion and contraction.
• The optional second pen holder and pouncing tool are not included unless specifically stated.
• Confirm product condition, warranty, included accessories, and software availability with the seller before ordering.

Product Summary: The Graphtec FC8600-60 is a professional 24-inch cutting plotter that combines high-speed operation, adjustable cutting force, optical registration mark sensing, and long-length media handling. Its compact cutting width makes it a practical solution for sign shops, advertising businesses, and graphics professionals who need accurate, versatile cutting performance.
