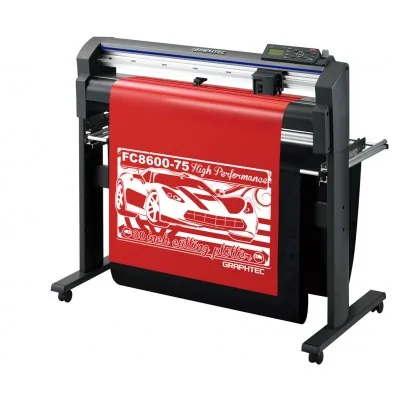

Graphtec FC8600-75 (30″)

Graphtec FC8600-75 30-Inch Professional Cutting Plotter

The Graphtec FC8600-75 is a professional 30-inch cutting plotter designed for sign-making businesses, graphics studios, advertising companies, and commercial print production environments. Part of the Graphtec FC8600 series, this model combines high-speed cutting, adjustable cutting force, accurate media tracking, and advanced registration mark recognition for demanding cutting applications.

Powered by a 32-bit CPU and a digital servo drive system, the FC8600-75 delivers a maximum cutting speed of 1,485 mm/s and a maximum cutting force of 5.88 N (600 gf). Its maximum cutting area measures 762 mm wide by 50 m long, making it suitable for producing signs, lettering, vehicle graphics, decals, and other roll-media graphics.

Key Product Highlights

• 30-inch professional cutting plotter.
• Maximum cutting speed of 1,485 mm/s.
• Maximum cutting force of 5.88 N (600 gf).
• Guaranteed-accuracy cutting area of 742 mm × 15 m.
• ARMS 5.0 optical registration mark sensing system.
• Built-in light pointer and cross-cutter.
• USB 2.0, RS-232C, and Ethernet connectivity.
• Includes stand, media stocker, basket, blade holder, and standard accessories.

Graphtec FC8600 Series Model Comparison

Specification	FC8600-60	FC8600-75	FC8600-100	FC8600-130	FC8600-160
Nominal Cutting Width	24 in.	30 in.	42 in.	54 in.	64 in.
Maximum Cutting Area Width	610 mm	762 mm	1,067 mm	1,372 mm	1,626 mm
Maximum Cutting Area Length	50 m	50 m	50 m	50 m	50 m
Maximum Media Width	770 mm	920 mm	1,224 mm	1,529 mm	1,850 mm
Maximum Cross-Cut Width	734 mm	886 mm	1,191 mm	1,496 mm	1,750 mm
Push Rollers	2	2	3	3	4
Guaranteed-Accuracy Cutting Area	590 mm × 15 m	742 mm × 15 m	1,043 mm × 10 m; 894 mm × 15 m	1,342 mm × 10 m; 894 mm × 15 m	1,603 mm × 10 m; 894 mm × 15 m
Approximate Weight, Including Stand	38 kg	42 kg	46 kg	50 kg	59 kg

Technical Specifications

Product Name	Graphtec FC8600-75
Product Type	Professional Roll-Fed Cutting Plotter
Cutting Width Class	30 inches
CPU	32-bit CPU
Configuration	Grit rolling type
Drive Method	Digital servo drive
Maximum Cutting Area	762 mm × 50 m
Guaranteed-Accuracy Cutting Area	742 mm × 15 m
Mountable Media Width	Minimum 50 mm; maximum 920 mm
Maximum Cross-Cut Width	886 mm
Number of Push Rollers	2 rollers
Maximum Cutting Speed	1,485 mm/s at 45-degree direction
Axial Acceleration	Maximum 39.2 m/s² (4 G), adjustable in 8 steps
Cutting Force	Maximum 5.88 N (600 gf), adjustable in 48 steps
Mechanical Resolution	0.005 mm
Programmable Resolution	GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm; HP-GL: 0.025 mm
Distance Accuracy	Maximum 0.1 mm or 0.1% of plotted length
Repeatability	Maximum 0.1 mm for plotting up to 2 m, excluding media expansion and contraction
Minimum Character Size	Approximately 3 mm alphanumeric, depending on font and media
Standard Tool Capacity	1 tool: cutting blade, plotting pen, or pouncing tool
Optional Tool Configuration	2 tools: cutting blade and plotting pen, with optional second pen holder
Blade Types	Supersteel, 0.9 mm or 1.5 mm diameter
Pen Types	Water-based fiber-tip pen and oil-based ballpoint pen
Pouncing Tool	Steel pin, 1.2 mm diameter; optional PPA 33-TP12 required
Light Pointer	Built into the tool carriage
Cross-Cutter	Built into the tool carriage
Display	3-inch backlit graphic LCD
Buffer Memory	2 MB
Command Sets	GP-GL and HP-GL emulation; menu selection, command selection, or auto select
Condition Settings	Dual configuration, with 2 user settings and 8 separate condition settings for each user
Standard Interfaces	USB 2.0 High Speed, RS-232C, Ethernet 10BASE-T/100BASE-TX
Power Supply	100–240 V AC, 50/60 Hz
Power Consumption	Maximum 160 VA
Operating Environment	10–35°C; 35–75% relative humidity, non-condensing
Guaranteed-Accuracy Environment	16–32°C; 35–70% relative humidity, non-condensing
External Dimensions (W × D × H)	Approximately 1,278 × 715 × 1,219 mm
Weight	Approximately 42 kg, including stand
Compatible Standards	UL60950-1, cUL, CE mark for low voltage and EMC, KC mark for low voltage and EMC, FCC-A, EN55022-A

Advanced Cutting and Registration Features

ARMS 5.0 Registration Mark Sensing

The FC8600-75 features an optical registration mark sensing system designed to improve alignment when contour-cutting printed graphics. Supported functions include segment area and multiple-mark compensation, four-point axis alignment, and automatic mark detection.

Reliable Long-Length Media Tracking

The FC8600 series supports long-length cutting with a stated guaranteed-accuracy cutting area of 742 mm × 15 m for the FC8600-75. Its media feed system and push rollers help maintain stable media movement when operated under the specified conditions.

Adjustable Cutting Conditions

Cutting force can be adjusted in 48 steps, while axial acceleration offers 8 steps. These adjustments help operators configure cutting conditions for different compatible media and job requirements.

Supported Media

• Self-adhesive vinyl marking film up to 0.25 mm thick.
• Fluorescent marking film.
• Reflective and high-intensity reflective film.
• Sandblast resist rubber up to 1 mm thick.
• Regular paper from 0.06 to 0.13 mm thick for pouncing applications.

Media compatibility depends on material thickness, backing, blade selection, and the manufacturer's recommended cutting conditions. Test unfamiliar media before beginning production.

Compatible Software and Operating Systems

The supplied software package includes:

• Windows Driver
• Plotter Controller
• Graphtec Studio
• Cutting Master 3

Listed operating system compatibility:

• Windows 10, Windows 8.1, Windows 8, Windows 7, and Windows Vista.
• Mac OS X 10.6 through 10.10.

Software compatibility notice: The operating systems listed above are from the supplied product specifications and are older platforms. Check current software, driver, and computer compatibility before purchasing or integrating this plotter into a modern workflow.

Standard Accessories Included

Accessory	Quantity	Description
Power Cord	1	Cord type varies by destination market.
Cutting Blade Holder	1	PHP33-CB09N-HS
Cutting Blade	1	CB09UB
Fiber-Tip Pen Holder	1	PHP31-FIBER
Water-Based Fiber-Tip Pen	1	KF700-BK, black ink
Stand	1 set	Stand parts kit
Media Stocker	1 set	Stock rollers and mounting brackets, installed on the stand
Basket	1 set	PG0040 parts kit for FC8600-75
USB Cable	1	USB 2.0 cable, 2.9 m long
DVD-ROM	1	User manual in PDF format, Windows driver, Plotter Controller, Graphtec Studio, and Cutting Master 3
Printed Manuals	2	Quick Start Guide and Safety Guide

Recommended Applications

• Commercial sign making and lettering.
• Vehicle graphics and decals.
• Retail displays and promotional graphics.
• Contour cutting of printed graphics with registration marks.
• Reflective film graphics for compatible applications.
• Sandblast resist rubber cutting.
• Professional vinyl cutting and graphics finishing.

Important Product Notes

• Cutting speed, accuracy, and tracking performance depend on the media and specified operating conditions.
• Guaranteed accuracy excludes media expansion and contraction.
• Optional accessories, including the second pen holder and pouncing tool, are not included unless specifically stated.
• Confirm the condition, warranty, included accessories, and software availability with the seller before ordering.

Product Summary: The Graphtec FC8600-75 is a professional 30-inch cutting plotter combining high-speed operation, adjustable cutting force, optical registration mark sensing, and long-length media handling. It is a practical choice for sign shops, advertising businesses, and graphics production teams seeking reliable cutting performance across a variety of compatible materials.
