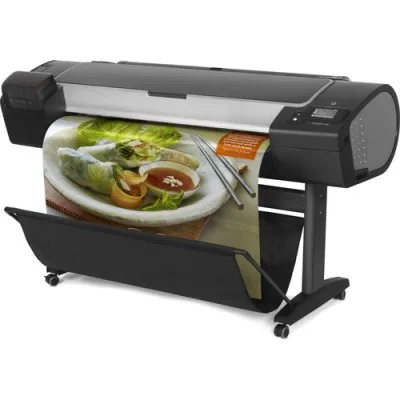

HP DesignJet HD Pro Multifunctional Printer

Product Description

Printer

Print SpeedMaximum: 570 ft² / 53 m² per hour

Print ResolutionUp to 2400 x 1200 optimized dpi

Margins0.2 x 0.2 x 0.2 x 0.2" / 5 x 5 x 5 x 5 mm (borderless on photo roll media)
Sheet: 0.2 x 0.67 x 0.2 x 0.2" / 5 x 17 x 5 x 5 mm

Ink TypesPigment-based

Ink CartridgesCyan, light, gray, magenta, matte black, photo black, yellow

Line Accuracy±0.1%

Minimum Line Width0.0015" / 0.04 mm (HP-GL/2 addressable)
Guaranteed: 0.0031" / 0.08 mm (ISO/ IEC 13660:2001, E)

MediaHandling: 2 automatic roll feeds, smart roll-switching, sheet feed, media output bin, automatic cutter
Roll Size: 11 to 44" / 27.9 to 111.8 cm
Sheet Size: 8.3 x 11" to 44 x 66" / 21 x 27.9 cm to 111.8 x 167.6 cm
Standard Sheets: A4, A3, A2, A1, A0 (A, B, C, D, E)
Thickness: Up to 31.5 mil / 0.8 mm

ApplicationsLine drawings, renderings, maps, orthophotos, graphic design, office graphics, posters, photos, digital fine art, banners, exhibition, event graphics, light boxes - film, point of sale/display

Memory64 GB (virtual)
320 GB hard disk

ConnectivityInterfaces: Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0 certified, EIO Jetdirect accessory slot
Print Languages: Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP PCL 3 GUI, HP-GL/2, and HP-RTL
Printing Paths: Printer driver, HP Embedded Web Server, HP Instant Printing PRO, direct printing from USB flash drive, email printing

AcousticSound Pressure: 45 db (printing), 23 dB (ready)
Sound Power: 6.7 B (printing), 4.1 B (ready)

PowerConsumption: < 120 W (printing), < 27 W (ready), < 5 W (sleep), 0.1 W (off)
Requirements: 100 to 240 VAC (±10%), 50/60 Hz (±3 Hz), 2 A (max)

Certifications & ApprovalsSafety: USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant), Russia/Kazakhstan (EAC), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE)
Electromagnetic: Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC)
Environmental: ENERGY STAR, WEEE, EU RoHS, China RoHS, REACH, EPEAT Bronze

Scanner

Scan SensorCCD

Scan SpeedColor: Up to 6" / 15 cm per second
Grayscale: Up to 13" / 33 cm per second

ResolutionEnhanced: 9600 dpi
Optical: 1200 dpi

Maximum Scan Width42" / 106.7 cm

Scan Input ModesScan preview, scan to file, scan to email, scan to USB, scan to print, scan to FTP, copy, batch scanning, batch copying, collate copy, copy to simultaneous printers

MediaHandling: Straight-through scan paper path for sheet and cardboard originals, adjustable paper pressure for very thin media up to 0.6" / 15 mm original thickness
Width: Up to 44" / 111.8 cm
Thickness: Up to 0.6" / 15 mm

Memory2 GB memory
500 GB hard disk

ConnectivityInterfaces: Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0 certified

AcousticSound Pressure: 47 dB (scanning), < 22 dB (ready), < 22 (sleep)
Sound Power: 6.4 B (scanning), < 3.9 B (ready), < 3.9 B (sleep)

PowerConsumption: 90 W (scanning), 80 W (ready), < 3 W (sleep)
Requirements: 100 to 240 VAC (±10%), 50/60 Hz, 5 A (max)

CertificationSafety: USA and Canada (UL certified), EU (LVD and EN 60950-1 compliant), Russia (EAC), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE), Korea (KC)
Electromagnetic: Compliance for Class A ITE products: EU (EMC Directive), USA (FCC Rules), Canada (ICES), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (MSIP), Taiwan (BSMI), Russia (EAC)
Environmental: ENERGY STAR, WEEE, RoHS (EU, China, Korea, India), REACH, EPEAT, Bronze

General

Operating Temperature41 to 104°F / 5 to 40°C

Storage Temperature-13 to 131°F / -25 to 55°C

Operating Humidity20 to 80% RH

Dimensions69.7 x 44.9 x 59.1" / 177 x 114 x 150 cm

Weight346.1 lb / 157 kg
