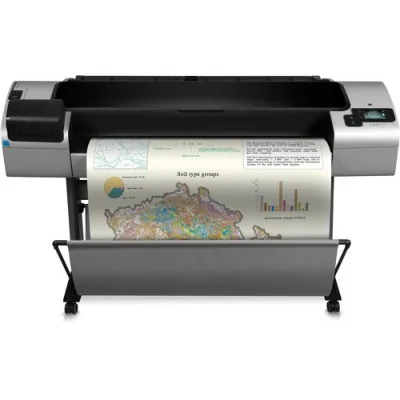

HP Designjet T1300 44 inch PostScript ePrinter

Product Description

PRODUCT HIGHLIGHTS

- Print Up To 2 A1/D-Sized Prints/Minute
- PostScript Printing
- Resolution Up To 1200 dpi
- Touchscreen Interface
- Print Directly From USB Thumb Drive
- Supports Printing PDFs From USB Drive
- USB, Ethernet, Wi-Fi Connectivity
- HP ePrint & Share

Printer

Printing TechnologyHP Thermal Inkjet

Print SpeedLine Drawings: 28 sec/page on A1/D (103 A1/D prints/hour)
Color Images - Fast: 445 ft2/hr (41 m2/hr) on coated media
Color Images - Best: 33.3 ft2/hr (3.1 m2/hr) on glossy media

Print ResolutionInput dpi: 1200 x 1200 dpi
Optimized dpi: 2400 x 1200 dpi

Ink PaletteCyan, Gray, Magenta, Matte Black, Photo Black, Yellow

Ink TypesDye-Based: Cyan, Gray, Magenta, Photo Black, Yellow
Pigment-Based: Matte Black

Ink Droplet Size6 pl: Cyan, Gray, Magenta, Photo Black
9 pl: Matte Black, Yellow

Line Accuracy±0.1%

Line WidthMinimum Line Width: 0.0008" (0.02 mm)
Guaranteed Minimum: 0.0024" (0.06 mm)

Maximum Optical Density2.15 (black)

Hard Disk Capacity160 GB

Memory32 GB (virtual)

Paper Handling

Paper-Feed MethodSheet feed, two automatic roll feeds, automatic roll-switching, automatic cutter

Media TypesBond & Coated Paper: Bond, Coated, Heavyweight Coated, Super Heavyweight Plus Matte
Technical Paper: Natural Tracing, Translucent Bond, Vellum
Film: Clear, Matte
Photographic Paper: Satin, Gloss, Semi-Gloss, Matte, High-Gloss
Self-Adhesive: Polypropylene, Vinyl

Media Weight60 to 328 g/m2

Media ThicknessUp to 31.5 mil (0.8 mm)

Paper SizesSheets: 8.26 x 11.0 to 44.0 x 66.0" (210 x 279 to 1118 x 1676 mm)
Rolls: 11.0 to 44" (279 to 1118 mm)

Maximum Printable Length300' (91.44 m)

Roller DiameterUp to 5.3" (13.46 cm)

MarginsRoll: 0.2 x 0.2 x 0.2 x 0.2" (5.0 x 5.0 x 5.0 x 5.0 mm) (borderless on photo papers)
Sheet: 0.2 x 0.67 x 0.2 x 0.2" (5.0 x 17.0 x 5.0 x 5.0 mm)

Connectivity

InterfaceHi-Speed USB 2.0 certified
Gigabit Ethernet (1000Base-T)
EIO Jetdirect accessory slot

Printer LanguageAdobe PostScript 3, Adobe PDF 1.7, HP-GL/2, TIFF, JPEG, CALS G4, HP PCL 3 GUI

DriversHP-GL/2, HP-RTL drivers for Windows (optimized for AutoCAD 2000 and higher), HP PCL 3 GUI driver for Mac OS X; PostScript Windows, Linux, and Mac drivers

OS CompatibilityMicrosoft: Windows 7 (Ultimate, Professional, Home Premium), Vista (Ultimate, Business, Home Premium), XP 32-bit & 64-bit (Professional, Home), Windows Server 2008 (32-bit, 64-bit), Server 2003 (32-bit, 64-bit)
Mac: OS X v 10.5, v 10.6
Citrix: XenApp, XenServer

Windows System RequirementsWindows XP: SP2 or later, Intel Pentium or AMD K6/Athlon/Duron (1 GHz), 1 GB RAM, 2 GB available hard disk space
Windows Vista: 32-bit (x86) or 64-bit (x64) processor (1 GHz), 2 GB RAM, 2 GB available hard disk space

Mac System RequirementsOS X v 10.4, 10.5: PowerPC G4, G5, or Intel Core Processor, 1 GB RAM, 2 GB available hard disk space

General Attributes

Power Requirements100 to 240 VAC (±10%), 50/60 Hz (±3 Hz), 2 A max

Power ConsumptionPrinting: < 120 Watts
Powersave: < 7 Watts (<25 with embedded Digital Front End)
Off: 0.1 Watts

CertificationsSafety: USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant), Russia (GOST), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE)
Electromagnetic: Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC)
Environmental: WEEE, EU RoHS, China RoHS, REACH, EuP, FEMP

AcousticsSound Pressure- Active: 46 dB(A)
Sound Pressure- Standby: 29 dB(A)
Sound Power - Active: 6.3 B(A)
Sound Power - Standby: 4.4 B(A)

Temperature / HumidityOperating Temperature: 41 to 104 ºF (5 to 40 °C)
Storage Temperature: -13 to 131 ºF (-25 to 55 ºC)
Operating Humidity: 20 to 80%

Dimensions (WxDxH)Printer: 69.7 x 28.4 x 41.3" (177.0 x 72.1 x 105.0 cm)
Shipping: 76.0 x 30.2 x 30.3" (193.0 x 76.6 x 77.0 cm)

WeightPrinter: 189 lb (86 kg)
Shipping: 240 lb (109 kg)

Packaging Info

Package Weight265.0 lb

Box Dimensions (LxWxH)

69.7 x 41.3 x 28.4"
