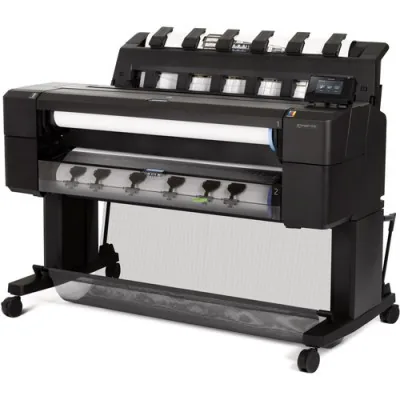

HP DesignJet T1530 Dual-Roll 36 inch Thermal Inkjet PostScript Printer

Product Description

Printing Method

Printing TechnologyHP Thermal Inkjet

Maximum ResolutionUp to 2400 x 1200 optimized dpi

Print SpeedPrint Time Line Drawing: 21 sec/page on A1/D (economode)
Print Speed Line Drawing: 120 A1/D prints per hour (economode)

Ink TypeDye Based: C, G, M, Pk, y
Pigment Based: mK

Ink Droplet Size6 pL (C, M, Y, G, pK)
9 pL (mK)

Ink Cartridge Configuration6 Cartridges: cyan, gray, magenta, matte black, photo black, yellow

Ink Cartridge Capacity130 or 300 mL

MarginsTop x Bottom x Left x Right:
Roll: 0.12 x 0.12 x 0.12 x 0.12" (3 x 3 x 3 x 3 mm)
Sheet: 0.12 x 0.87 x 0.12 x 0.12" (3 x 22 x 3 x 3 mm)

Line Accuracy±0.1%

PrintheadC, G, M, mK, pK, Y

Minimum Line Width0.79 mil (0.02 mm) (HP-GL/2 addressable)

Guaranteed Minimum Line Width2.8 mil (0.07 mm) (ISO/IEC 13660:2001(E))

Maximum Optical DensityBlack: 2.15 D (6 L* min)

ApplicationsLine drawings, Renderings, Presentations

Memory96 GB (file processing)

Hard Disk500 GB

Media Types & Handling

Paper HandlingInput: two automatic front-loading roll feeds, smart roll switching, sheet feed
Output: integrated output stacking tray (from A4/A to AO/E, with up to 50 A1/D-size capacity), media bin, automatic cutter

Paper TypesBond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, colored), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl)

Media SizesStandard:
Rolls: 11 to 36" (27.9 to 91.4 cm)
Sheets: 8.3 x 11 to 36 x 48" (21 x 27.9 to 91.4 x 121.9 cm)
Standard sheets: A4, A3, A2, A1, A0 (A, B, C, D, E)

Custom: 8.3 x 11 to 36 x 48" (21 x 27.9 to 91.4 x 121.9 cm)

RollExternal Diameter: 5.5" (14 cm)

Media ThicknessUp to 19.7 mil (0.5 mm)

Connectivity

InterfacesStandard: Gigabit Ethernet (1000Base-T)
Hi-Speed USB 2.0

Printer LanguagePostscript Printer: Adobe PostScript 3, Adobe PDF 1.7 Extension Level 3, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF
Basic Printer: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF

Printing PathsDirect printing from USB flash drive, email printing, HP driver for Windows, HP driver for Mac OS X, HP Print Service for Android, Apple AirPrint driver

DriversIncluded: HP-GL/2, HP-PCL3GUI drivers for Windows and Mac OS X; PostScript drivers for Windows, Linux, and Mac OS X

Physical

TemperatureOperating: 41 to 104°F (5 to 40°C)
Storage: -13 to 131°F (-25 to 55°C)

Operating Humidity20 to 80% RH

Acoustic NoiseSound Pressure: 47 dB(A) (printing); 39 dB(A) (ready); <16 dB(A) (sleep)
Sound Power: 6.5 B(A) (printing); 5.8 B(A) (ready); <1.9 B(A) (sleep)

Power ConsumptionPrinting: 120 W
Sleep: 1.3 W (5 W with embedded Digital Front End)

Input VoltageAuto Ranging: 100 to 240 VAC (±10%), 50/60 Hz (±3 Hz)

Input Current2 A maximum

CertificationsSafety
USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant), Russia (GOST), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE), Korea (KATS)

Electromagnetic
Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC)

Environmental
ENERGY STAR, WEEE, EU RoHS, China RoHS, REACH, EPEAT Bronze

Dimensions (W x D x H)55.1 x 36.1 x 43.7" (139.9 x 91.6 x 111 cm)

Weight194 lb (88 kg)
