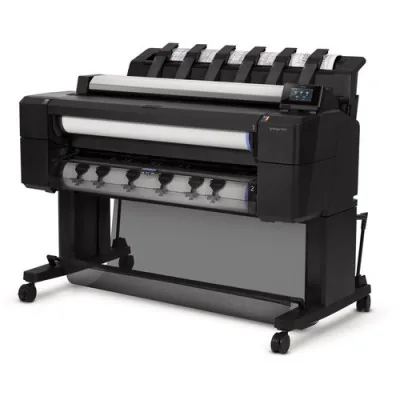

HP DesignJet T2530 36" Multifunction Printer

Product Description

Printing Method

Printing TechnologyHP Thermal Inkjet

Maximum ResolutionUp to 2400 x 1200 optimized dpi

Print SpeedPrint Time Line Drawing: 21 sec/page on A1/D (economode)
Print Speed Line Drawing: 120 A1/D prints per hour (economode)

Ink TypeDye-based: C, G, M, pK, Y
Pigment-based: mK

Ink Droplet SizeC, M, Y, G, pK: 6 pL
mK: 9 pL

Ink Cartridge Configuration6 x Cartridges: cyan, gray, magenta, matte black, photo black, yellow

Ink Cartridge Capacity130 or 300 mL

MarginsTop x Bottom x Left x Right:
Roll: 0.12 x 0.12 x 0.12 x 0.12" (3 x 3 x 3 x 3 mm)
Sheet: 0.12 x 0.87 x 0.12 x 0.12" (3 x 22 x 3 x 3 mm)

Line Accuracy±0.1%

PrintheadC, G, M, mK, pK, Y

Minimum Line Width0.8 mil (0.02 mm) (HP-GL/2 addressable)

Guaranteed Minimum Line Width2.8 mil (0.07 mm) (ISO/IEC 13660:2001(E))

Maximum Optical DensityBlack: 2.15 D (6 L* min)

ApplicationsLine drawings, renderings, presentations, maps, orthophotos

Memory128 GB (file processing)

Hard Disk500 GB

Media Types & Handling

Paper HandlingInput: two automatic front-loading roll feeds, smart roll switching, sheet feed
Output: integrated output stacking tray (from A4/A to AO/E, with up to 50 A1/D-size capacity), media bin, automatic cutter

Paper TypesBond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, colored), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl)

Media SizesStandard:
Rolls: 11 to 36" (27.9 to 91.4 cm)
Sheets: 8.3 x 11 to 36 x 48" (21 x 27.9 to 91.4 x 121.9 cm)
Standard sheets: A4, A3, A2, A1, A0 (A, B, C, D, E)

Custom: 8.3 x 11 to 36 x 48" (21 x 27.9 to 91.4 x 121.9 cm)

RollExternal Diameter: 5.5" (14 cm)

Media ThicknessUp to 19.7 mil (0.5 mm)

Connectivity

InterfacesGigabit Ethernet (1000Base-T)
USB 2.0

Printer LanguageHP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF

Printing PathsDirect printing from USB flash drive, email printing, HP driver for Windows, HP driver for Mac OS X, HP Print Service for Android, Apple AirPrint driver

DriversIncluded: HP-GL/2, HP-PCL3GUI drivers for Windows and Mac OS X; PostScript drivers for Windows, Linux, and Mac OS X

Scanner

Scanner TypeSheetfed, CIS (Contact Image Sensor)

Scan SpeedColor: Up to 2.5 in/sec (6.35 cm/sec)
Grayscale: Up to 7.5 in/sec (19.05 cm/sec)

Scan ResolutionUp to 600 dpi

Paper HandlingStraight-through scan paper path for sheet and cardboard originals

Maximum Scan SizeJPEG: 36 x 315" (91.4 x 800 cm) ()
PDF: 36 x 197" (91.4 x 500 cm) ()
TIFF: 24 x 590.5" (61 x 1,500 cm ()

ThicknessUp to 1.2 mil (0.03 in)

Copier

Reduction / Enlargement25 to 400%

Number of CopiesUp to 99 copies

Copier SettingsCopy quality, copy color, roll, content type, original paper type, background removal, contrast, de-skew, blueprints support

Physical

TemperatureOperating: 41 to 104°F (5 to 40°C)
Storage: -13 to 131°F (-25 to 55°C)

Operating Humidity20 to 80% RH

Acoustic NoiseSound Pressure: 47 dB(A) (printing); 39 dB(A) (ready); <16 dB(A) (sleep)
Sound Power: 6.5 B(A) (printing); 5.8 B(A) (ready); <1.9 B(A) (sleep)

Power ConsumptionPrinting: 120 W
Sleep: 1.3 W (5 W with embedded Digital Front End)

Input VoltageAuto Ranging: 100 to 240 VAC (±10%), 50/60 Hz (±3 Hz)

Input Current2 A maximum

CertificationsSafety:
USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant), Russia (GOST), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE), Korea (KATS)

Electromagnetic:
Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC)

Environmental:
ENERGY STAR, WEEE, EU RoHS, China RoHS, REACH, EPEAT Bronze

Dimensions (W x D x H)55.1 x 36.1 x 43.7" (139.9 x 91.6 x 111 cm)

Weight245 lb (112 kg)
