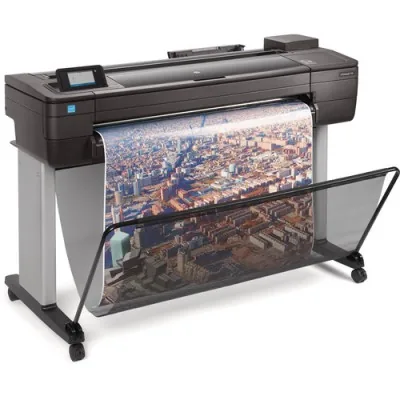

HP DesignJet T730 36 inch Thermal Inkjet Printer

Product Description

Printing Method

Printing TechnologyHP Thermal Inkjet

Size36" (91.4 cm)

Maximum ResolutionUp to 2400 x 1200 optimized dpi

Print SpeedPrint Time Line Drawing: 25 sec/page on A1/D (economode)
Print Speed Line Drawing: 82 A1/D prints per hour (economode)

Ink Droplet Size6 pL (C, M, Y); 12.6 pL (mK)

Ink TypeDye-based (C, M, Y); pigment-based (mK)

Ink Cartridge Configuration4 individual ink cartridges (cyan, magenta, yellow, black)

Ink Cartridge Capacity40 to 300 mL

Line Accuracy±0.1%

PrintheadC, M, Y, mK

Minimum Line Width0.8 mil (0.02 mm) (HP-GL/2 addressable)

Guaranteed Minimum Line Width2.8 mil (0.07 mm) (ISO/IEC 13660:2001(E))

Maximum Optical DensityBlack: 2.10 D (8 L* min)

ApplicationsLine drawings, Renderings, Presentations

Memory1 GB

Media Types & Handling

Paper HandlingSheet feed, roll feed, input tray, media bin, automatic cutter

Paper TypesBond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)

Media SizesStandard:
Rolls: 11 to 36" (27.9 to 91.4 cm)
Sheets: 8.3 x 11 to 36 x 74.7" (21 x 27.9 to 91.4 x 189.7 cm)
Standard sheets: A4, A3, A2, A1, A0 (A, B, C, D, E)

Custom:
Input Tray: 8.3 x 11 to 13 x 19" (21 x 27.9 to 33 x 48.3 cm)
Manual Feed: 13 x 19 to 36 x 74.7" (33 x 48.3 to 91.4 x 189.7 cm)
Roll: 11 to 36" (27.9 to 91.4 cm)

RollExternal Diameter: 3.9" (9.9 cm)

Media ThicknessUp to 11.8 mil (0.3 mm)

Connectivity

InterfacesGigabit Ethernet (1000Base-T)
Wi-Fi
Hi-Speed USB 2.0

Printer LanguageHP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP PCL 3 GUI, URF

Printing PathsPrinter driver, email printing, Apple AirPrint, Android Print Service, print from USB

Mobile Printing FeaturesWi-Fi Direct and local Wi-Fi connectivity to enable mobile printing via HP ePrint, Apple AirPrint and HP All-in-One printer remote App
Supports printing from most smartphones and tablets using Android and iOS operating systems

DriversHP-GL/2, HP-RTL drivers for Windows; HP PCL 3 GUI driver for Mac OS X and Windows

Physical

TemperatureOperating: 41 to 104°F (5 to 40°C)
Storage: -13 to 131°F (-25 to 55°C)

Operating Humidity20 to 80% RH

Acoustic NoiseSound Pressure: 48 dB(A) (printing); <16 dB(A) (sleep)
Sound Power: 6.5 B(A) (printing); <3.4 B(A) (sleep)

Power ConsumptionPrinting: 35 W
Sleep: 3.5 W
Standby: 0.2 W

Input VoltageAuto Ranging: 100 to 240 VAC (±10%), 50/60 Hz (±3 Hz), 1.2 A maximum

CertificationsSafety
USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant), Russia (GOST), Singapore (PSB), China (CCC), Mexico (NYCE), India (BIS)

Electromagnetic
Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC)

Environmental
ENERGY STAR, EPEAT Silver, CE marking (including RoHS, WEEE, REACH)
In compliance with WW RoHS materials restriction requirements in China, Korea, India, Vietnam, Turkey, Serbia, and Ukraine

Dimensions (W x D x H)55.2 x 23 x 45.5" (140.3 x 58.3 x 115.5 cm)

Weight105.8 lb (48 kg)

Packaging Info

Box Dimensions (LxWxH)

62.5 x 25.4 x 22.6"
