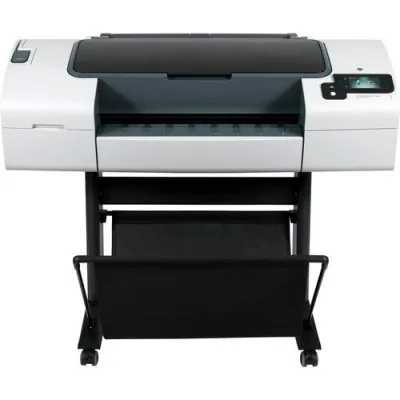

HP Designjet T790PS 24 inch ePrinter

Product Description

PRODUCT HIGHLIGHTS

- Speed: 28 Sec To Print A1/D Size Page
- Print TIFF, JPEG, PDF From USB Key
- Built-In 8 GB RAM
- Ethernet, Network Ready
- Auto Software Updates Every 2 Months
- 160 GB Hard Disk

Printing Method

Printing TechnologyThermal inkjet

Maximum Resolution1200 dpi (optimized: 2400 x 1200 dpi)

Minimum Ink Droplet SizeCyan, Gray, Magenta, Photo Black: 6 pl
Matte Black, Yellow: 9 pl

Ink TypeCyan, Gray, Magenta, Photo Black, Yellow: dye-based
Matte Black: pigment-based

Ink PaletteCyan, gray, magenta, matte black, photo black, yellow

Ink Cartridge Configuration6 individual ink cartridges, 3 Printheads (gray & photo black, matte black & yellow, magenta & cyan)

Line Accuracy±0.1%

Performance

Print SpeedNormal: 93 D prints per hour
Line Drawing: 72 D prints per hour
Best Drawing: 30 ft²/hr
Image Draft 400 ft²/hr

Paper Handling

Maximum Paper Width24.0" (610 mm)

Maximum Printable Area24.0" x 300.0' (610 mm x 91.44 m)

MarginsSheet: 0.2 x 0.67 x 0.2 x 0.2" (5 x 17 x 5 x 5 mm)
Roll: 0.2 x 0.2 x 0.2 x 0.2" (5 x 5 x 5 x 5 mm)

Paper SizesSheet: 8.26 x 11.0 to 24.0 x 66.0" (210 x 279 to 610 x 1676 mm )
Roll: 11.0 to 24.0" (279 to 610 mm) rolls

Paper TypesBond And Coated Paper: bond, coated, heavyweight coated, super heavyweight plus matte
Technical Paper: natural tracing, translucent bond, vellum
Film: clear, matte
Photographic Paper: satin, gloss, semi-gloss, matte, high-gloss
Self-Adhesive: polypropylene, vinyl

Special Media SupportTechnical paper, film, self-adhesive paper

Media Weight60 to 328 g/m²

Media ThicknessUp to 0.8 mm (31.5 mil)

Maximum Media Roll Diameter5.3" (134.62 mm) external diameter

Maximum Roll Print Length300.0' (91 m)

Paper-Feed MethodSheet feed, roll feed, automatic cutter

Connectivity

Computer InterfaceFast Ethernet (100Base-T), Hi-Speed USB 2.0 certified, EIO Jetdirect accessory slot

Printer LanguageAdobe PostScript 3, Adobe PDF 1.7, HP-GL/2, TIFF, JPEG, CALS G4, HP PCL 3 GUI

DriversHP-GL/2, HP-RTL drivers for Windows (optimized for AutoCAD 2000 and higher); HP PCL 3 GUI driver for Mac OS X; PostScript Windows, Linux, and Mac drivers

Network CapableFast Ethernet (100Base-T)

OS CompatibilityMicrosoft: Windows 7 Ultimate/Professional/Home Premium, Windows Vista Ultimate/Business/Home Premium, Windows XP (32-bit, 64-bit) Professional/Home, Windows Server 2008 (32-bit, 64-bit), Windows Server 2003 (32-bit, 64-bit)
Mac: OS X v 10.5, v 10.6
Citrix: XenApp, XenServer
Linux

Windows System RequirementsWindows XP: (SP2 or later) Intel Pentium family or AMD K6/Athlon/Duron family (1 GHz)
1 GB RAM
2 GB available hard disk space
Windows Vista: 32-bit (x86) or 64-bit (x64) processor (1 GHz)
2 GB RAM
2 GB available hard disk space

Apple System RequirementsOS X v 10.4, OS X v 10.5
PowerPC G4, G5, or Intel Core Processor
1 GB RAM
2 GB available hard disk space

Environmental

TemperatureOperating Temperature: 41 to 104 ºF (5 to 40 °C)
Storage Temperature: -13 to 131 ºF (-25 to 55 ºC )

HumidityOperating Humidity: 20 to 80% RH
Storage Humidity: 0 to 95% RH

Acoustic NoiseSound Pressure: active - 46 dB(A); standby - 29 dB(A)
Sound Power: active - 6.3 B(A); standby - 4.4 B(A)

Physical

Buffer/Ram8.0 GB

Hard Drive Space160 GB

Power ConsumptionPrinting: < 120 Watts
Powersave: < 7 Watts
Off: 0.1 Watts

Power Requirements100 to 240 VAC (±10%), 50/60 Hz (±3 Hz), 2 A max

Dimensions49.7 x 27.6 x 41.3" (1262 x 702 x 1050 mm)

Weight132.0 lb (60.0 kg)

Packaging Info

Package Weight190.0 lb

Box Dimensions (LxWxH)

56.2 x 30.1 x 24.0"
