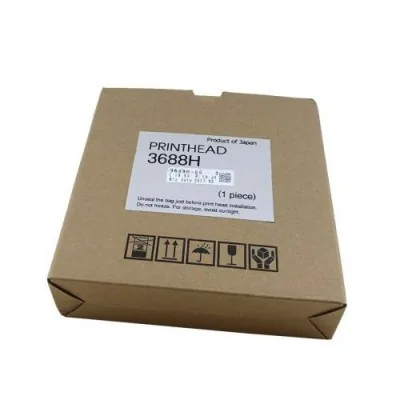

Konica 3688H 6PL UV Printhead

Product Description

Product Name Konica 3688H 6PL UV Printhead

Description The Konica Minolta KM1024 SHB: 3688H print head is a robust, shear mode, piezo on-demand print head that operates in both binary and 8-level greyscale mode. It provides variable drop size and higher print quality without requiring additional print heads. The KM1024 SHB print head is an improvement over the KM512 series, offering twice the print width and double the greyscale levels.

Konica Minolta piezo on-demand inkjet heads operate at lower voltages than other inkjet heads, and the new actuator in the KM1024 reduces power consumption even further.

This print head has 1024 nozzles with a 6 pico litre droplet size and a native resolution of 360 dpi. The integrated heater makes it ideal for UV inks, but it is also compatible with solvent inks.

This is an original Konica print head and includes the necessary waveform information. It comes with a manufacturer warranty.

Also Known As Konica Minolta KM1024 SHB

Country of Origin Japan

Remarks Original

Warranty Manufacturer Warranty Included

Technology On-Demand Piezo Electric (Shared Wall 3 Cycle)

Native Resolution 360 dpi

Calibrated Droplet Size 6 pico litre

Max. Drops in Greyscale 8 drops

Total Nozzles 1024 (512 nozzles per line)

Nozzle Spacing 70.5 microns

Print Width
