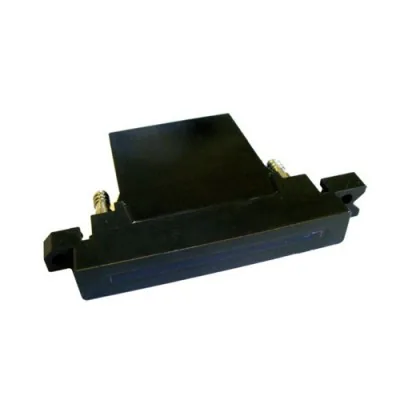

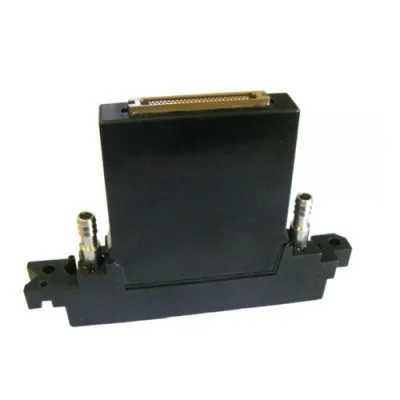

Konica KM1024 MNB 14PL Printhead

Product Description

Konica KM1024 MNB 14PL Printhead

The Konica Minolta KM1024 MNB print head is a robust, shear mode, piezo on-demand print head that is usable in both binary and 8 level greyscale mode, providing variable drop size and higher print quality without the use of additional print heads. The Konica Minolta KM1024 MNB print head is a vast improvement over the km512 print head series, offering twice the print width and double the level of greyscale. Konica Minolta piezo on-demand inkjet heads are driven using lower voltages than other inkjet heads and the new actuator used in the KM1024 reduces power consumption even further. The Konica Minolta KM1024 MNB print head has 1024 nozzles with a droplet size of 14 pl and a native resolution of 360 dpi. The print head is compatible with oil based and solvent inks. This is Konica original print head and it includes the Head ID and the necessary waveform information.

To be used with:
Agfa :Anapurna M1600 / :Anapurna M² / :Anapurna M2050 / :Anapurna M2540 FB , Allwin C8, DGI FTII 1804, DGI VE-3206, Dilli Neo Titan FB2513-06DW / Neo Titan UVT-1604D

Remarks: Original

Specification:

Product NameKM1024MNB
KM1024MHB

Drive Mode On-Demand Piezo Electric (Shared Wall 3 Cycle)

Nozzle Resolution
180dpi×2 rows = 360dpi

Nozzle Number512 nozzles×2 rows = 1024

Nozzle Spacing70.5μm =(141um 2 rows)

Drop Volume
14pl

Firing Frequency
12.8kHz

Print Width
72mm

Dimensions
W131mm × D18mm × H89mm

solvent inkOK

uv ink OK OK

Oil Ink OKOK

Max. Drops in Greyscale8drops

Integrated Heater (H) Available
