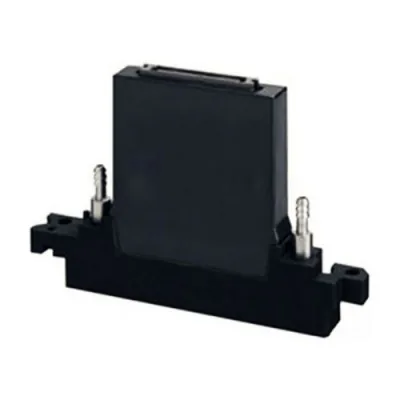

Konica KM1024 SHB 6PL Printhead

Product Description

The Konica Minolta KM1024 SHB print head is a robust, shear mode, piezo on-demand print head that is usable in both binary and 8 level greyscale mode, providing variable drop size and higher print quality without the use of additional print heads. The Konica Minolta KM1024 SHB print head is a vast improvement over the km512 print head series, offering twice the print width and double the level of greyscale. Konica Minolta piezo on-demand inkjet heads are driven using lower voltages than other inkjet heads and the new actuator used in the KM1024 reduces power consumption even further. The Konica Minolta KM1024 SHB print head has 1024 nozzles with a droplet size of 6 pico litre and a native resolution of 360 dpi. The print head has an integrated heater, which makes it ideal for UV inks, but suitable for solvent inks as well. This print head is also known as the Konica Minolta KM1024 SHB. This is Konica original print head and it includes the Head ID and the necessary waveform information.

Printhead NameKM1024SHBKM1024MNBKM1024MHBKM1024LNBKM1024LHB

TechnologyPiezo Drop on Demand (Shared wall 3 cycle)

Resolution180dpi × 2lines = 360dpi

Number of Nozzles512nozzles × 2lines = 1024nozzles

Nozzle Pitch70.5 m (141 m 2lines)

Drop Size6 pl14 pl42 pl

Max Frequency30.0 kHz12.8 kHz6.7 kHz7.6 kHz

Printing Width72mm

DimensionsW131mm × D18mm × H89mm

Weight150g

Grey scale8 levels

Iternal Heater○-○--

Solvent Ink○○○○○

UV Ink○△○△○

Printer compatibility: Docan M2, AOJet APro 320F, Yinghe YH-3304X, IIJ Colourprint 72 / Monoprint 72 / Colourprint 282 / Monoprint 282 / Colourprint 352 / Monoprint 352 / Colourprint 142HQ, Inktec Jetrix 1212FK
DP part number: PPHKM1024SH
Remarks: Original
