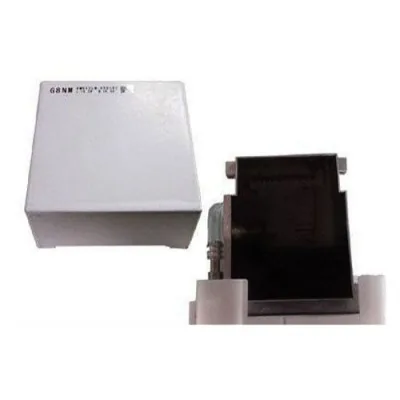

Konica KM512 LNX 35PL Printhead

Product Description

Konica KM512 LNX 35PL Printhead

The Konica Minolta KM512 LNX-35 print head is a robust print head , shear mode, piezo on-demand print head that is usable in binary mode only. This Konica Minolta print head has 512 nozzles with a droplet size of 35 picolitre and a native resolution of 360 dpi. It is compatible with oil based, solvent and UV inks.

To be used with:

Aestrik InWear S3304K5 / InWear S3308K5, Allwin C8 / C12 / H8, Anhui Liyu PT-KL / Apollo PTP1804-KL / Apollo PTP1806-KL / Apollo PTP1808-KL / Apollo PTP3204-KL / Apollo PTP3206-KL / Apollo PTP3208-KL / Apollo PTP18/3202-KC / Apollo PTP18/3204-KC / Apollo PTP18/3206-KC / Apollo PZ3204-KX / Apollo PZ3206-KX / Apollo PZ3208-KX, Maxima PZ3204-KX / Maxima PZ3206-KX / Maxima PZ 3208-KX, JHF Vista T903316LNX / T903312LNX / V12 / Vista3306 / S5004F / S5006FS, Myjet WB320 / LB320 / LE320, Rodin K4320-A / K4320-B, Skynet PC-series / HS-series

Remarks: Original

Specification:

Model

PRH-KON-011

TechnologyOn-Demand Piezo Electri

Native Resolution360 dpi

Cal. Droplet Size35 pico litre

Tot. Amount of Nozzles512 (256 nozzles per line)

Nozzle Spacing70.5 microns

Print Width36.1 mm

Firing Frequency10 kHz

Ink CompatibilitySolvent

HeaterNot integrated
