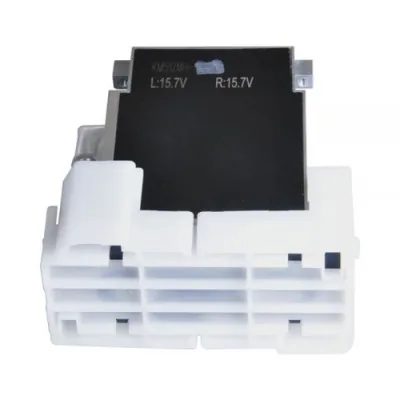

Konica KM512 MH 14PL UV Printhead

Product Description

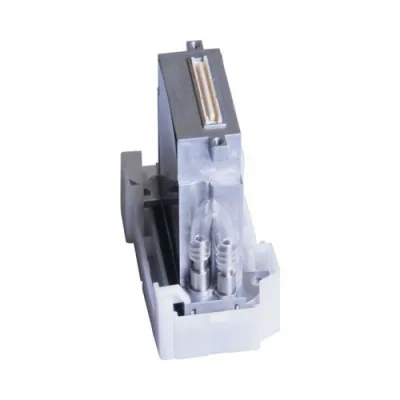

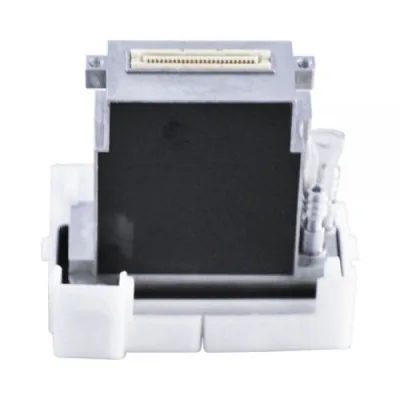

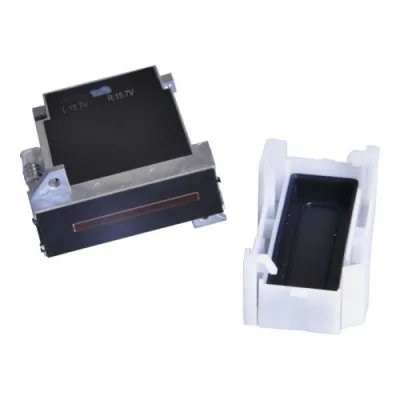

Konica KM512 MH 14PL UV Printhead

The Konica KM512MH printhead is a robust, shear mode, piezo on-demand print head that is usable in both binary and 4 level greyscale mode, providing variable drop size and higher print quality without the use of additional print heads.The Konica KM512MH printhead has 512 nozzles with a droplet size of 14pl and a nozzle resolution of 360 dpi. It has an integrated heater, which makes it ideal for oil based and UV inks, but it works with solvent ink as well. The heater can be heated up to 55°C. This print head is also known as the Konica Minolta KM512 MHX. This is Konica original print head and it includes the Head ID and the necessary waveform information.

To be used with:

Anhui Liyu Victor KJ2512 / Victor KJ2520 / Victor KJ3020, Ampla Digital Targa Elite

CET Color FK512Z

Flora F1 250UV / F1 320UV / F1 180UV / PP 1816UV / PP 2512UV / PP 3218UV Flora F1250UV,

GCC StellarJet K100UV / StellarJet K72UV / StellarJet K72LSUV / StellarJet 183uv / StellarJet 183uvk,

Gerber Solara Ion Z / CAT UV

Grapo Manta / Manta Slim / Manta White / Octopus II

IP&I Cube 260UV / Cube 160 / Cube 1606F / Cube 1606S / Cube 1606uv, Leopard UVB,

KingColor UV1224C / UV2030C

Neo Titan UVT-1606W(S) / Neo Titan UVT-2506W(S) / Neo Titan UV-1606VS / Neo Titan UV-1606W / Neo Titan UV-2506W / Neo Titan UVT-1680 / Titan UV-1604D

Rodin K7250UV, Docan 2512 UV / 2518 UV / 2518-16 UV / 3020 UV

SKYJET UV FlatMaser 2512 / SKYJET UV FlatMaser 2518 / SKYJET UV FlatMaser 3020 / SKYJET UV FlatMaser 3022 / SKYJET UV FlatMaser-R

Sun Innovations Neo UV-LED Evolution 1.6 / Neo UV-LED Evolution 2.5 / Neo UV-LED Evolution Compact / Neo UV-LED GlassTech

Neo UV-LED Flatbed / Universal UV-LED 1.6 / Universal UV-LED 2.5

KM512LNKM512LHKM512MNKM512MHKM512LNX-35

TechnologyPiezo Drop on Demand (Shared wall 3 cycle)

Resolution180dpi×2lines＝360dpi

Number of Nozzles256nozzles×2lines = 512nozzles

Nozzle Pitch70.5μm（141μm 2lines）

Drop Size42pl14pl35pl

Max Frequency7.6kHz12.8kHz10kHz

Printing Width36.1mm

Dimensions67mm W × 40mm D × 63mm H

WeightAbout 95g

Grey scale--4 levels-

Iternal Heater-○-○-

Solvent Ink○-○-○

UV Ink-○-○-
