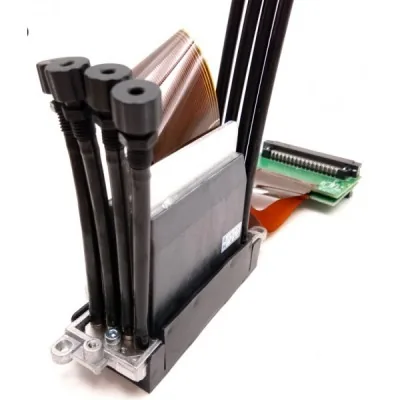

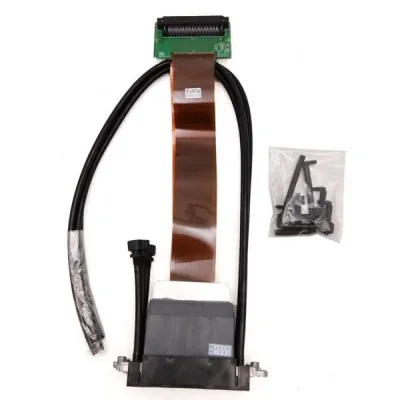

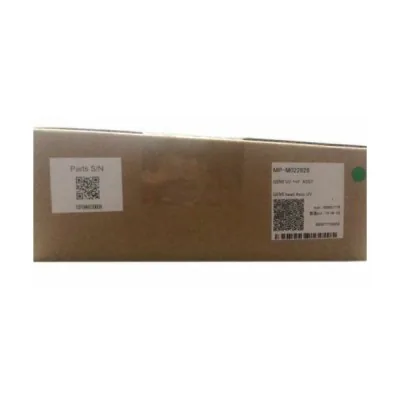

Mimaki JFX500-2131 GEN5 UV Printhead-M022626

Product Description

This printhead GEN5 (MH5420/5440) is suitable for Mimaki JFX500-2131 & UJV500-160 printers.

It has two and four colour support, 8 levels of grayscale and up to 600 npi nozzle density.

This is the original Mimaki part (number M022626 replacing M013497 and M015068).

Product Specifications

Dimensions: 89 x 25 x 69 mm (excluding cables)

Head materials: SST, Nickel alloy and Epoxy Adhesive

Nozzle plate surface: Coated SST

Number of nozzles: 4 x 320 nozzles

Nozzle spacing: 0.1693 mm

Nozzle density: up to 600 npi

Piezo yype: D33 Stacked PZT

Temperature control: Integrated Heater and Thermistor

Operator temperature range: Up to 80° C

Native drop volume: 7 pl

Drop volume range: 7 - 35 pl

Drop velocity: 7 m/s

Jetting frequency: Up to 60 kHZ

Life: 100 billion actuations per nozzle

Printer compatibility

Mimaki JFX500-2131

Mimaki UJV500-160
