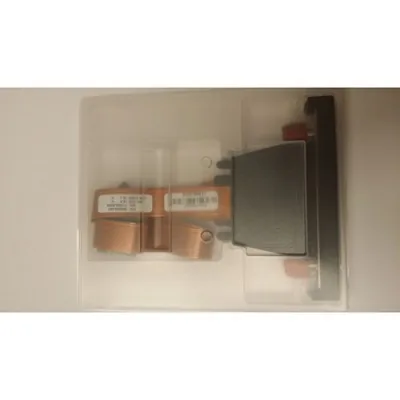

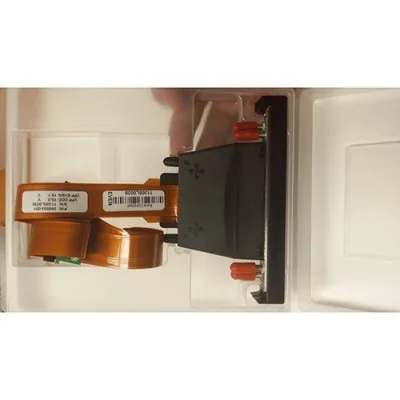

Ricoh UJF-3042 GEN4 Printhead - EXCLUSIVE

Product Description

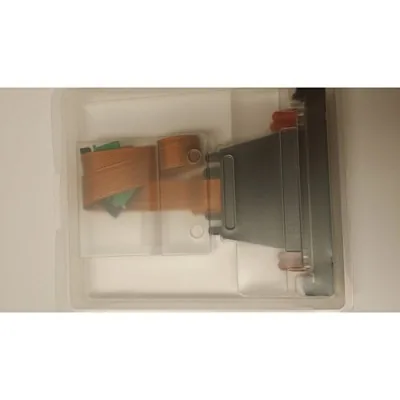

This Ricoh GEN4 (MH2420), 384 channels, 30 kHz, 7 picoliter, greyscale printhead is suitable for Mimaki UJF-3042 printers. This printhead has an integrated heater and thermistor. This is the Ricoh original printhead, covered by a manufacturer warranty.

This printhead correspond to Mimaki part number M010010. This part includes the damper adapter M014497.

Printer compatibility: Mimaki UJF-3042 / UJF-3042FX / UJF-3042HG / UJF-6042

Technical Specifications

*Size: 63 x 63 x 16,2 mm (excluding cables)

*Head Materials: SST, Ni and Epoxy Adhesive

*Nozzle Plate Surface: Non-coated SST

*Number of Nozzles: 2 x 192 nozzles

*Nozzle Spacing: 0,1693 mm

*Piezo Type: D33 Stacked PZT

*Temperature Control: Integrated Heater and Thermistor

*Operator Temperature range: Up to 60° C

*Native Drop Volume: 7 pl

*Drop Volume Range: 5-25 pl with greyscale

*Jetting Frequency: Up to 30 kHZ

*Life: 100 billion actuations per nozzle
