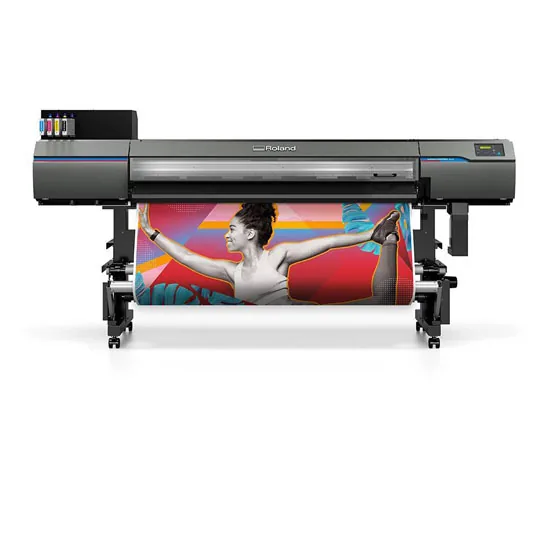

ROLAND DGXPRESS ER-641

Product Description

Piezo ink-jet method; Size: 64 inch; RIP (included) VersaWorks 6

Printing resolution (dots per inch) Max. 1,200 dpi

Print Speed Max. 43.5 m2/h

Media: Width 259 to 1,625 mm (10.2 to 64 in.)

Thickness Max. 1.0 mm (39.3 mil) with liner

Main Unit

Printing Technology

Piezo inkjet method

Ink Type

4 (Cyan, magenta, yellow, and black)

Max. Printing Width

Maximum 1615 mm

Dimension

2,886 mm × 748 mm × 1,415 mm

Power Consumption

- During operation : Approx. 1,180 W
- Sleep mode : Approx. 50 W

Max. Resolution

1200 dpi

Other

- Media heating system : Print heater set temperature: 86 to 113 °F (30 to 45 °C) Dryer set temperature: 86 to 131 °F (30 to 55 °C)
- Power-saving function : Automatic sleep feature
- Power requirements : 100-120 / 220-240 Va.c. 50 / 60 Hz 8.9 / 4.5 A
- Acoustic noise level During operation : 66 dB (A) or less; During standby : 53 dB (A) or less
- During operation : Temperature : 68 to 89.6 °F (20 to 32 °C) , humidity：35 to 80 % RH (no condensation)
- Not operating : Temperature : 41 to 104 °F (5 to 40 °C) , humidity：20 to 80 % RH (no condensation)

Connectivity

Ethernet (100BASE-TX/1000BASE-T, automatic switching)

Number of Ink Colours

4 colors (cyan, magenta, yellow and black)

Weight

188 kg

Ink Capacity

500 ml pouch
