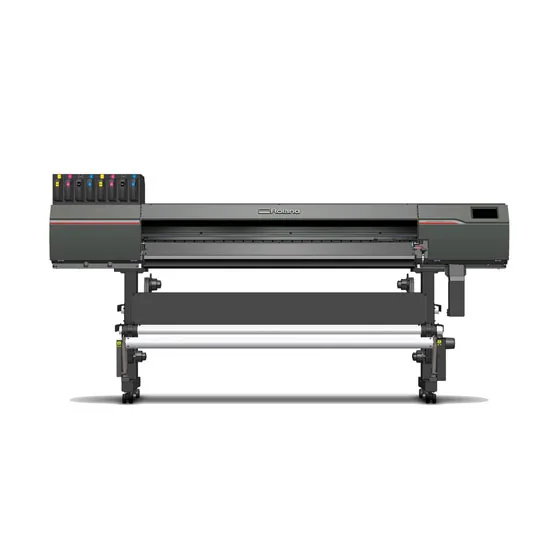

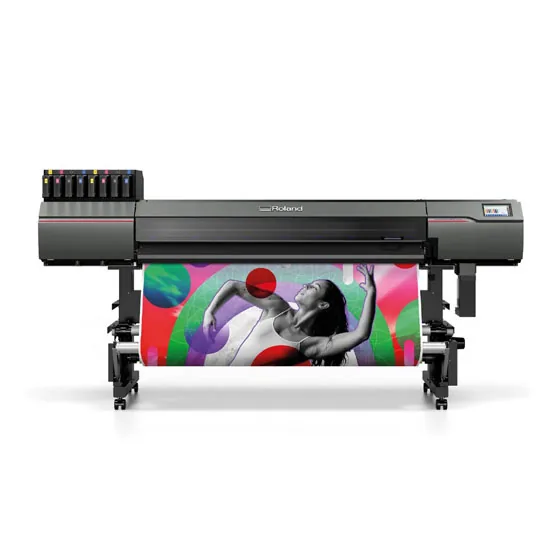

ROLAND DGXPRESS UG-642

Product Description

ROLAND DGXPRESS UG-642

Printing Method Piezo ink-jet method

Media

Width 335 to 1625 mm (13.2 to 64 inches)

Thickness Max. 1.0 mm (39.3 mil) with liner, for printing
Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting

Outer Diameter Space Max. 250 mm (9.8 inches)

Roll Weight Max. 45 kg (99 lbs)

Core Diameter 76.2 mm (3 in.) or 50.8 mm (2 in.)

Printing / Cutting Width Max. 1600 mm (62.9 inches)

Ink

Type UV Ink (D-UAP) 750ml pouch

Color Six colors (Cyan, Magenta, Yellow, Black, Gloss, and White)
Four colors (Cyan, Magenta, Yellow, and Black)

Ink Curing Unit Built-in UV-LED lamp

Print Resolution Max. 1200 dpi

Cutting

Cutting Speed 10 to 300 mm/s (0.39 to 11.8 inches/sec)

Blade Force 30 to 500 gf

Blade Type Roland CAMM-1 series blade

Software Resolution 0.025 mm/step (0.98 mil/step)

Media Heating System 30 to 55 ℃ (86 to 131 °F)

Other Specifications

Connectivity Ethernet (100BASE-TX / 1000BASE-T, auto-switching)

Power Saving Function Auto sleep feature

Power Requirements 100-120/220-240 Vac. 50/60 Hz 6.5/3.2 A

Power Consumption During operation: Approx. 800 W
Sleep mode: Approx. 85 W

Dimensions (with Stand) 2902 mm x 748 mm x 1412 mm (114.3" x 29.5" x 55.6")

Weight (with Stand) 209 kg (461 lbs)
