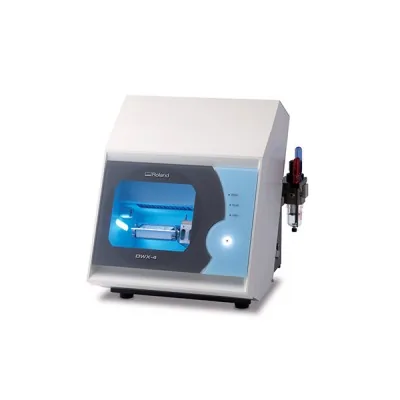

Roland DWX-4 Compact Dental Mill

Product Description

DWX-4 Compact Dental Mill

- Compact size is ideal for any lab environment
- Capable of unattended 4-axis milling with simple one-button operation
- Precision milling of wax, zirconia, nano composites and PMMA
- Integrated air flow system keeps work area clean
- Diagnostic notification system alerts user of machine status
- CAM software included

Distinguishing Features

- Mills wax, zirconia, PMMA and resins in standard blocks and pin-types
- Combines simultaneous 4-axis milling with simple one-button operation
- Automatic tool changer with two tools for unattended milling
- Mill up to four different pin-type materials simultaneously with an optional multi-pin clamp
- Multicast connection of up to four DWX dental mills to one computer
- CAM software included

Powerful Production Capabilities

The DWX-4 includes an automatic tool changer for two tools, and can be enhanced with the addition of an optional 4-position automatic tool changer which supports up to four different tool sizes.

With an optional multi-pin clamp, the DWX-4W can mill up to four prosthetics in a single production run. The additional multi-pin clamp mills different pin-type materials simultaneously and saves time, labor and costs.

Peace of Mind, Quality and Reliability

Roland milling devices combine unbeatable performance with legendary Roland reliability and quality assurance. As further proof of our unmatched reliability, Roland offers a one-year warranty and the best post-sales support in the industry, with a team of certified service engineers that keep your DWX-4 running smoothly.
Like all Roland DG products, each DWX-4 was manufactured at a state-of-the-art factory by a single assembler, one device at a time - just like a Rolls Royce. Roland DG’s international ISO certification is your further assurance of premier quality.

DWX-4 Milling Machine Specifications

Cuttable MaterialZirconia (pre-sintered), Wax, PMMA, Lava™ Ultimate Restorative

Loadablework - piece shapeBlockWidth x Depth: 76×38, Height: 10 to 22 mm

PIN typeWidth x Depth x Height: Maximum 85 x 40 x 22 mm

Operating speedXYZ axis: 0.24 to 70.8 in./min. (6 to 1800 mm/min.)

Spindle motorBrushless DC motor

Spindle speed6,000 to 30,000 rpm

Rotary axis travel angleA: ±360°

Number of tools housed2

Attachable toolShank diameter: 4 mm, Length: 40 to 55 mm

Compatible compressed air0.02 to 0.2 MPa

InterfaceUSB (compliant with Universal Serial Bus Specification Revision 1.1)

Control command setRML-1, NC code

Power requirementsVoltage and frequency:AC100 to 120 V/220 to 240 V ±10 %, 50/60 Hz

(overvoltage category II, IEC 60664-1)

Required power capacity:2.0 A (100 to 120 V)/1.0 A (220 to 240 V)

Power consumptionApprox. 70 W

Operating noiseDuring operation:70 dB (A) or less (when not cutting)

During standby:40 dB (A) or less

External dimensionsWidth x Depth x Height:13.4×14.4×16.0 in.

(340×365×405 mm)

Weight48.5 lbs (22 kg)

Installation EnvironmentIndoor Use, altitude:up to 2000 m

Temperature:41 to 104 °F (5 to 40 °C)

Relative humidity:35 to 80 % (no condensation)

Ambient pollution degree:2 (as specified by IEC 60664-1)

Short-Term Temporary Overvoltage:1440 V

Long-Term Temporary Overvoltage:490 V

Included itemsPower cord, USB cable, Manual, Software Package CD-ROM, Detection pin, Automatic correction jig, Clamp for block workpiece, Hexagonal screwdriver, spanner, Tool holder, Tool positioner, Dust collection hose, Regulator, etc.

System requirements for included EasyShape CAM software

Operating SystemWindows 7 or Windows 8.1 (32 or 64 Bit)

Recommended CPUi7 or better *AMD not recommended

Memory (RAM)4GB or more

*More RAM may be required if running multiple instances of EasyShapeCAM

4GB of RAM will require a 64-Bit OS

Graphics CardNVIDIA GT series graphics card with a minimum 1GB or more of dedicated video memory *Non-Shared/Dynamic Memory - AMD/ATI graphics cards not recommended

Hard DriveHard Disc Drive (HDD) - Discretionary based on how many STL Job Files are stored.

Solid State Drive (SDD) - May help read / write times slightly but is not necessary
