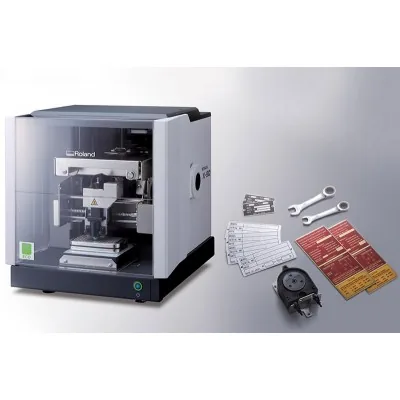

Roland MPX-90 Impact Printer

Product Description

MPX-90 Impact Printer

- Imprints stainless steel, titanium, gold, silver, copper, platinum, brass, aluminum, iron, acrylic and metallic stickers
- Low-cost solution for industrial marking applications
- Personalizes a wide range of items with text, graphics and photos
- With the cover open, users can insert items of virtually any length for imprinting

With the MPX-90 Photo Impact Printer you can personalize hundreds of metal and acrylic items with photos, logos and messages to create desirable and profitable products in your kiosk, jewelry store or gift shop. Enter the personalization business with a low-cost, quiet and clean device that fits on any desktop and handles both flat and curved objects with ease. In addition, users looking for an industrial marking solution will appreciate the MPX-90’s impact printing capabilities on stainless steel and titanium.

Distinguishing Features

- Imprint on stainless steel, titanium, gold, silver, copper, platinum, brass, aluminum, iron, and acrylic
- High impact force for impact printing on non-plated and unpolished materials
- Maximum printing are: 3.1” x 3.1”
- Photo editing and engraving software included

Utilize Four Different Print Modes

The MPX-90 offers 4 different modes for the accuracy required by varied graphics:

- Text mode – 265 dpi (dots per inch) output
- Photo mode – 353 dpi output
- High-resolution mode – 529 dpi output
- Vector mode – 1,058 dpi output

MODEL MPX-90

Printable MaterialGold, silver, copper, platinum, brass, aluminum, iron, stainless steel, acrylic, etc. Vickers hardness (HV) of the printable surface must be 200 or less.

Loadable material size

with cover closed3.94(W) x 7.87(L) x 1.57(Thick) in. - (100(W) x 200(L) x 40(Thick) mm

or

7.87(W) x 3.94(L) x 1.57(Thick) in. - (200(W) x 100(L) x 40(Thick) mm

Printable area3.15 x 3.15 in. (80 x 80 mm)

Resolution265 dpi (Text)

353 dpi (Photo)

529 dpi (High Resolution)

1058 dpi (Vector)

Print speeds1.18 in./sec (30 mm/sec) – Text/High Resolution Mode

1.97 in./sec (50 mm/sec) – Photo Mode

0.94 in./sec (24 mm/sec) – Vector Mode

InterfaceUSB Interface (Compliant with Universal Serial Bus Specification Revision 1.1)

Power SupplyDedicated AC Adapter: AC 100V to 240V +/- 10%, 50-60Hz

Machine: DC 19V, 1.6A

Power ConsumptionApproximately 24W

Acoustic Noise LevelUnder 70dB (A)

Operation Temperature50 to 86°F (10 to 30°C)

Operation Humidity35 to 80% (No condensation)

External Dimensions11.3(W) x 15.1(D) x 12.2(H) in. - 286(W) x 383(D) x 308(H) mm

Weight5.1 kg (11.2 lb.)

Weight23.8 lbs (10.8 kg)

Included accessoriesAC adapter, power cord, test print material, USB cable, Software CD-ROM, center vise and user’s manual

SOFTWARE SPECIFICATIONS

Operating system (OS)Windows XP/Vista/7 (32 and 64 bit editions)

CPUPentium 4, 3.0GHz or more recommended

Memory512MB or more recommended

Optical driveCD-ROM drive

Video card and display800x600, 16 bit (high color) or more recommended

Required hard disk space20 MB for software application (more recommended for storing templates and libraries)

Compatible file formatsDr. Engrave: BMP and DXF (CSV and TXT are compatible for data file import) MetazaStudio: JPG, BMP, AI, EPS (Adobe Illustrator 8.0 export, CorelDraw)
