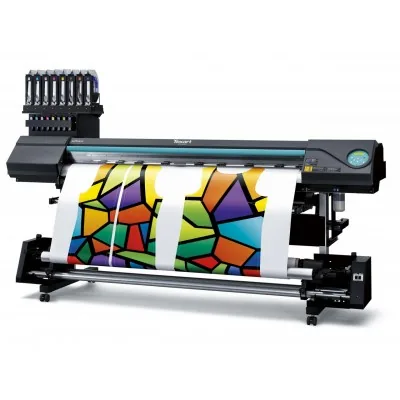

Roland Texart RT-640

Product Description

Texart RT-640 Dye-Sublimation Printer

- 64" dye-sublimation printer
- Integrated bulk ink system
- Available in 4-color or 8-color ink modes
- ErgoSoft Roland Edition RIP included

If you're looking to get into dye-sublimated soft-signage, apparel, décor, promotional goods and other highly profitable applications, then the RT-640 is the sublimation printing solution for you. Designed to combine superb quality, productivity and value with brilliantly simple operation, the advanced RT-640 Dye-Sublimation Transfer Printer is simply brilliant.

Cutting-edge ink with 4-color, 8-color and Fluorescents.

The Texart RT-640 can be configured as a 4-color or 8-color device. In 4-color (CMYK) mode, Texart dye-sublimation inks produce velvety blacks and sharp details. In 8-color (CMYK+LcLmOrVi and CMYK+OrViFpFy) mode, the addition of Orange, Violet, Fluorescent Pink and Fluorescent Yellow inks produce an increased color gamut with both delicate and intense hues. Fluorescent Pink and Yellow inks can be combined with process colors (CMY+Fp+Fy) to produce an array of vivid fluorescents and soft pastel shades.An advanced, 8-channel print head features efficient ink coverage that lowers running costs. Containing 180 nozzles per channel, it produces seven different droplet sizes for smooth color and gradations when used with Texart SBL3 inks that are 15% less per liter than conventional inks.The Roland Ink System uses 1-liter airtight sealed pouches. When in 4-color (CMYK) mode, the system outputs 2-liters per color and automatically switches to the backup ink pouch when the primary pouch runs out. This proprietary Roland Ink Switching System provides a no-mess, non-stop production that leave

Relieve tension with a smooth take-up system.

The RT-640 includes a feed adjustment function that combines with a TU3 take-up attachment to ensure a stable and uninterrupted production even in high-speed modes. The TU3 take-up system includes a front-mounted roller and tension controlled take-up unit for smooth media feeding and tracking. Its main features include a roll media support that holds 110 lbs. (50kg), a dancer roller for effortless take-up, auto media release and auto media rewind, and a rotating shaft face to decrease resistance and ensure flawless feeding accuracy.

Printing technologyPiezoelectric inkjet

MediaWidth10.2 to 64 in. (259 to 1,625 mm)

ThicknessMaximum 39 mil (1.0 mm)

Roll outer diameterMaximum 8.3 in. (210 mm)

Roll weightMaximum 88 lbs. (40 kg)

Core diameter 13 in. (76.2 mm) or 2 in. (50.8 mm)

Printing width 2Maximum 63.6 in. (1,615 mm)

Ink pouchesTypesExclusive sublimation ink pouch

Colors4-color (CMYK) and 8-color (Choose from CMYK+LcLmOrVi and CMYK+OrViFpFy options) Available colors: cyan, magenta, yellow, black, light cyan, light magenta, orange, violet, fluorescent pink, and fluorescent yellow

Printing resolution (dots per inch)Maximum 1,440 dpi

Distance accuracy 3Error of less than ±0.3% of distance traveled, or ±0.3 mm, whichever is greater

ConnectivityEthernet (10BASE-T/100BASE-TX, automatic switching)

Power-saving functionAutomatic sleep feature

Power requirementsAC 100 to 240 V ±10%, 1.5 A, 50/60 Hz

Power consumptionDuring operationApprox. 140 W

Sleep modeApprox. 31 W

Acoustic noise levelDuring operation62 dB (A) or less

During standby49 dB (A) or less

Dimensions (with stand)104.4 (W) x 31.3 (D) x 63 (H) in. (2,650 mm (W) x 795 mm (D) x 1,600 mm (H))

Weight (with stand)353 lbs (160 kg)

EnvironmentPower onTemperature: 64.4 to 77° F (18 to 25° C), humidity: 35 to 65% RH (non-condensing)

Power offTemperature: 59 to 86° F (15 to 30° C), humidity: 20 to 80% RH (non-condensing)

AccessoriesExclusive stands, power cord, media clamps, media holder, replace- ment blades for separating knife, User's Manual, etc.

ErgoSoft Roland Edition System Requirements

Operating systemWindows® 8/8.1 (32/64-bit); Windows® 7 Ultimate/Professional (32/64-bit); Windows Vista® Ultimate/Business (32/64-bit)

CPUQuadcore 2.5 GHz or faster recommended

RAM4 GB or more recommended

Video card and monitorA resolution of 1,280 × 1,024 or more recommended

Free hard-disk space40 GB or more recommended

Optical driveDVD-ROM drive

1.The media holder of this machine is exclusive use for the media of paper tube (core) inner diameter 3 inches. To use 2 inches media, the optional media flanges are required.

2.The length of printing is subject to the limitations of the program.

3.• Media type: Media specified by Roland DG Corp.

• Temperature: 77°F (25°C), humidity: 50%

• Roll media must be loaded correctly.

• Excluding expansion/contraction of the media

• All corrections or adjustment function of this machine have been made properly.

• Print travel: 1 m
