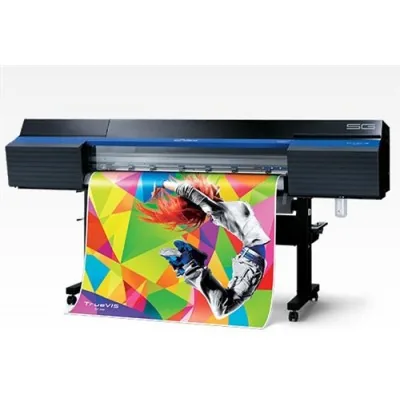

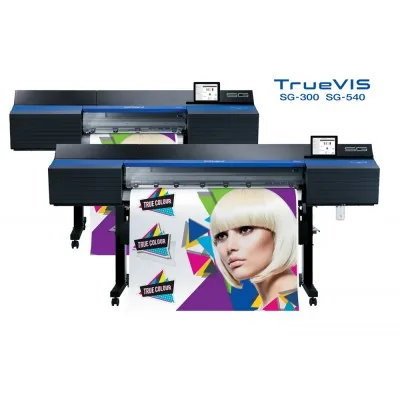

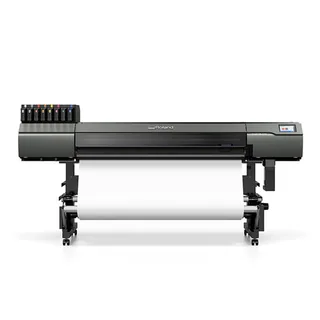

Roland TrueVIS SG-540

Product Description

Whether you’re just starting out or wanting to expand production, new TrueVIS SG series printer/cutters offer all the quality and versatility of a Roland, at an unbeatable price. TrueVIS ushers in a new era of integrated printing and contour cutting, and the SG delivers the value you need to quickly and easily build your business.

Make Everyday Print/Cut Production Easier

- Rigid new industrial design minimizes vibrations for optimum printing and cutting
- Improved motor and drive systems add durability for continuous production
- Newly designed grit roller for non-skew media handling
- New Roland VersaWorks Dual RIP software included with purchase
- Optional take-up and drying units available to boost performance

All new VersaWorks™ Dual RIP Included

VersaWorks™ Dual is included with the purchase of the TrueVIS SG and utilizes both PDF and PostScript engines to give users superfast preview times and improved file handling, plus all the user-friendly features of VersaWorks.

- User-friendly VersaWorks™ interface
- Natively processes transparencies, drop shadows and other effects
- Ability to save and store unlimited queue settings
- Built-in Pantone® and Roland Color System - spot color libraries
- Predictive ink calculator estimates the amount of ink needed for each job
- Advanced cropping, tiling, nesting and variable data functions

Specifications

ModelSG-540SG-300

Printing technology
Piezoelectric inkjet

MediaWidth
8.3 to 54 in (210 to 1371 mm)

7.2 to 30 in. (182 to 762 mm)

ThicknessMaximum 39 mil (1.0 mm) with liner for printing

Maximum 16 mil (0.4 mm) with liner and 9 mil (0.22mm) without liner for cutting

Roll outer diameterMaximum 8.3 in. (210 mm)

Roll weightMaximum 66 lbs (30 kg)Maximum 55 lbs (25 kg)

Core diameter *13 in. (76.2 mm) or 2 in. (50.8 mm)

Printing/cutting width *2
Maximum 53 in (1,346 mm)Maximum 29 in 736 mm)

Ink
TypeRoland TrueVIS INK

Capacity500 cc

ColorsCMYK

Printing resolution (dots per inch)Maximum 900 x 900 dpi

Maximum Speed (CMYK, 7 pass)101.2 ft2/hr

Standard Speed (CMYK, 10 pass)85 ft2/hr

Cutting speed10 to 300 mm/s (0.4 to 11.8 in/s)

Blade force *330 to 500 gf

Blade offset0 to 0.059 in (0 to 1.5 mm)

Software resolution (when cutting)0.000984 in/step (0.025 mm/step)

Distance accuracy (when printing) *4 *5Error of less than ±0.3% of distance traveled, or ±0.3 mm, whichever is greater

Distance accuracy (when cutting) *3Error of less than ±0.4% of distance traveled, or ±0.3 mm, whichever is greater

When distance correction has been performed (when the setting for [CUTTING MENU] - [CALIBRATION] has been made): Error of less than ±0.2% of distance traveled, or ±0.1 mm, whichever is greater

Repeatability (when cutting) *4 *6±0.1 mm or less

Alignment accuracy for printing and cutting *4 *7±0.5 mm or less

Alignment accuracy for printing and cutting when reloading media *3 *7Error of less than ±0.5% of distance traveled, or ±3 mm, whichever is greater

Media heating system *8Print heaterSetting range for the preset temperature: 86 to 112ºF (30 to 45ºC)

DryerSetting range for the preset temperature: 86 to 122ºF (30 to 50ºC)

ConnectivityEthernet (10BASE-T/100BASE-TX, automatic switching)

Power-saving functionAutomatic sleep feature

Power requirementsAC 100 to 120 V ±10%, 9.8A, 50/60 HzAC 100 to 120 V ±10%, 7.9A, 50/60 Hz

AC220V to 240V±10%, 4.0A, 50/60HzAC 220 to 240 V ±10%, 2.7A, 50/60 Hz

Power consumptionDuring operation1,050 W710 W

Sleep mode20 W20 W

Acoustic noise levelDuring operation65 dB (A) or less

During standby48 dB (A) or less

EnvironmentalPower on (*10)Temperature: 20 to 32°C (68 to 90°F), humidity: 35 to 80 % RH (no condensation)

Power offTemperature: 5 to 40°C (41 to 104°F), humidity: 20 to 80 % RH (no condensation)

Dimensions (with stand))105.7(W) x 29.3(D) x 51.6(H) 2685(W) x 745(D) x 1310(H) mm81.5[W] x 29.3[D] x 51.6[H] in 2070[W] x 745[D] x 1310[H]mm

Weight (with stand)392 lb (178kg)324lb (147kg)

Included itemsStand, power cord, blade, blade holder, media clamps, media holder, replacement blade for separating knife, software RIP, user's manual, etc.

*1 The media holder of this machine is exclusively for media with a paper tube core inner diameter of 3 inches. To use a 2 inch media core, please use the optionally available media flanges.
*2 The length of printing or cutting is subject to the limitations of the program.
*3 500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.
*4 Using Roland specified media, print travel of 1m. Temperature: 25°C (77°F), humidity: 50%. Roll media must be loaded correctly. Applicable when all pinch rollers that can be used with the media width are used. Side margins: 25 mm (1.0 in.) or more for both the left and right margins. Front margin: 35 mm (1.4 in.) or more. Excluding expansion/contraction of the media. Not guaranteed when the print heater or dryer is used. Assumes all correction and adjustment functions of the machine have been used properly.
*5 Print travel: 1 m (39.4 in.)
*6 [PREFEED] menu item must be set to "ENABLE." Range for assured repetition accuracy. 54" model -For media with a width exceeding 24 in (610 mm in.): Length 315 in (8000 mm)- 30" Model Width 24 in (610mm) or less: Length 118.2 in (4000 mm)
*7 Provided that the media feed length is 3,000 mm (118.1 in.) or less. Excludes the effects of slanted movement and of expansion and contraction of the media.
*8 Data size: 54" Model: 39.4 in. (1000 mm) in the media-feed direction, 1,346 mm (53.0 in.) in the carriage-movement direction. 30" Model: 39.4 in. (1000mm) in the media-feed direction, 29in.(736 mm)in the carriage-movement direction. No Lamination. Automatic detection of crop marks at 4 points when media is reloaded. During cutting, [PREFEED] menu item must be set to "ENABLE." Excluding possible shift caused by expansion/contraction of the media and/or by reloading the media.
*9 Warm-up is required after the power is turned on. This may require 5 to 20 minutes, depending on the operating environment. Depending on the ambient temperature and the media width, the set temperature may not be reached.
*10 Operating environment: Use the machine in an operating environment within its range

Roland VersaWorks Dual System Requirements

Operating systemWindows® 10 (32/64-bit)

Windows® 8.1 (32/64-bit)

Windows® 7 Professional / Ultimate (32/64-bit)

CPUIntel® Core™2 Duo, 2.0 GHz or faster recommended

RAM2 GB or more recommended

Video card and monitorA resolution of 1,280 x 1,204 or more recommended

Free hard-disk space40 GB or more recommended

Hard-disk file systemNTFS format

Optical driveDVD-ROM drive

* Roland VersaWorks Dual is a 32-bit application, which runs on 64-bit Windows® with WoW64 (windows 32-bit on Windows 64-bit).
