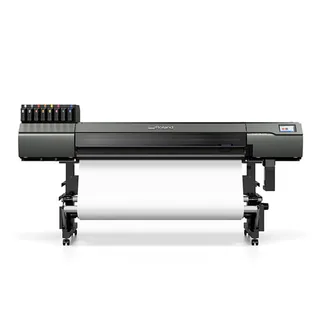

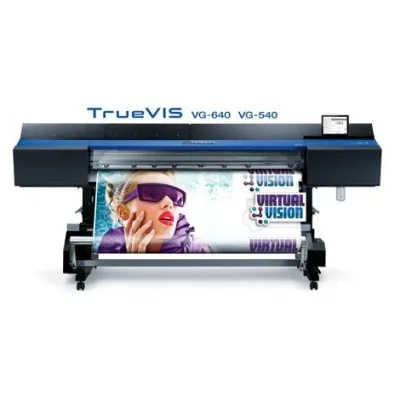

Roland TrueVIS VG-540

Product Description

TrueVIS VG3 Series

Everything about the way the TrueVIS produces images has been perfected. Four completely new FlexFire™ printheads fire precision droplets in 3 sizes and a wide print swath. Every drop of ink falls exactly where it is intended, delivering beautiful images and uniform colors at production speeds.

SPECIFICATION

VG3-640 VG3-540

Printing Method Piezo ink-jet method

Media Width 13.2 to 64 in. (335 to 1,625 mm) 11.7 to 54 in. (297 to 1,371 mm)

Thickness Max. 39.3 ml (1.0 mm) with liner, for printing
Max. 15.7 ml (0.4 mm) with liner and 8.6 ml (0.22 mm) without liner, for cutting

Roll outer diameter Max. 9.8 in. (250 mm)

Roll weight Max. 99 lb. (45 kg) Max. 77 lb. (35 kg)

Core diameter 3 in. (76.2 mm) or 2 in. (50.8 mm)

Printing/cutting width (*1) Max. 62.9 in. (1,600 mm) Max. 52.9 in. (1,346 mm)

Ink Type TrueVIS INK 500 ml pouch (only white 250 ml)

Colors Eight colors (cyan, magenta, yellow, black, light cyan, light magenta, light black, and white)
Eight colors (cyan, magenta, yellow, black, light cyan, light magenta, light black, and orange)
Eight colors (cyan, magenta, yellow, black, light black, orange, green and white)
Eight colors (cyan, magenta, yellow, black, light cyan, light magenta, orange, and green)
Seven colors (cyan, magenta, yellow, black, light black, orange, and green) Four colors (cyan, magenta, yellow, and black)

Printing resolution (dots per inch) Max. 1,200 dpi

Cutting speed 0.39 to 11.8 in/s (10 to 300 mm/s)

Blade force (*2) 30 to 500 gf

Blade Type Roland CAMM-1 series blade

Offset 0.0 to 59 ml (0.000 to 1.500 mm)

Software resolution (when cutting) 0.98 ml/step (0.025 mm/step)

Media heating system (*3) Print heater set temperature: 86 to 113 (°F 30 to 45 °C) Dryer set temperature: 86 to 131 °F (30 to 55 °C)

Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)

Power-saving function Automatic sleep feature

Rated input 100-120/220-240 Va.c. 50/60 Hz 8.0/4.1 A

Power consumption During operation Approx. 1,090 W

Sleep mode Approx. 50 W

Acoustic noise level During operation 63 dB (A) or less

During standby 53 dB (A) or less

Dimensions
(Width x Depth x Height) 113.7 in. x 29.5 in. x 52.0 in. (2,886 mm x 748 mm x 1,320 mm) 103.7 in. x 29.5 in. x 52.0 in. (2,632 mm x 748 mm x 1,320 mm)

Weight 448 lb. (203 kg) 417 lb. (189 kg)

Environment During operation (*4) Temperature: 68 to 89.6 °F (20 to 32 °C), humidity: 35 to 80 % RH (no condensation)

Not operating Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80 % RH (no condensation)

Included items Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, cleaning liquid, drain bottle, User's Manual, Software(VersaWorks, Roland DG Connect), etc.
