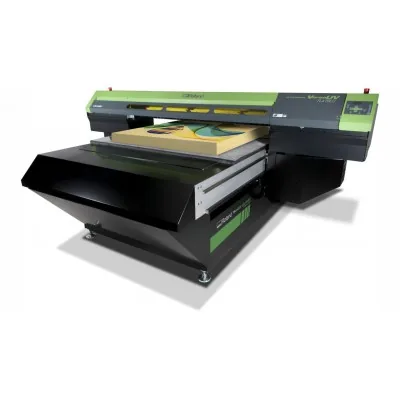

Roland VersaUV LEJ-640FT UV Flatbed Printer

Product Description

Raise Your Expectation

The LEJ-640FT UV flatbed printer delivers exceptional graphics that are anything but “flat”. In addition to unmatched material size and thickness capabilities, the LEJ-640FT utilizes CMYK, White and Clear Coat ECO-UV inks for stunning special effects including textures and simulated embossing. It all adds up to powerful visual impact on POP displays, interior design, art, promotional products and one or two-sided signs.

Print very big and many small

The LEJ-640FT UV flatbed printer has a 64”x 98” print bed that works beautifully with both thick and thin substrates - print on delicate film one job, and dense, rigid materials the next. While the LEJ-640FT is ideal for use with standard materials like foamcore, plastic, wood, glass and metal, it’s also the perfect solution if you want to print on hundreds of USB drives, smartphone cases or distinct items like guitar cases, water bottles and more.

Includes VersaWorks RIP with enhanced productivity tools.

Based on the latest Adobe CSPI engine (3019), VersaWorks is an easy-to-use RIP software that produces outstanding print results. It offers a host of advanced capabilities that include Spot Color Replacement Tool, Predictive Ink Calculator, a Built-in Pantone Spot Color Library and a Roland Texture Library that offers a collection of ready-to-use Clear Coat texture effects.

Energy Efficient and Ozone Free

As one of the most energy efficient UV printers available, the LEJ-640FT can be operated on a standard electrical outlet without additional power supply needed. It requires a fraction of the power that conventional flatbed printers demand, significantly saving on electrical bill costs each year.The LEJ-640FT uses safe, low heat LED lamps for UV-curing that last up to 10,000 hours – ten times longer than conventional UV curing lamps. The low-heat UV LED lamps enable printing on heat-sensitive materials and can be instantly turned on or off, for a true on-demand operation that requires no warm-up time. The LEJ-640FT bears the Roland Eco-label for environmental compliance. It has earned this label by providing a light source that is entirely ozone free, emitting light in the range known as Near-UV of the UV spectrum, making it a safe alternative to conventional UV lamps.

ModelLEJ-640FT

Printing technologyPiezoelectric inkjet

Acceptable media Width and length64 in x 98 in (1625mm x 2490mm)

ThicknessMaximum 6 in (152mm)

WeightMaximum 220 lbs (100 kg)

Printing areaMaximum 63 in x 96 in (1600 mm x 2439 mm)

Maximum printing speed133 sqft/hr in CMYK High Speed mode

Ink cartridge TypeECO-UV or ECO-UV S inks

Capacity220 ml (± 5 ml)

ColorECO-UV: 6 colors (Cyan, Magenta, Yellow, Black, White and Gloss),
ECO-UV S: 5 colors (Cyan, Magenta, Yellow, Black and White)

ConfigurationECO-UV: CMYK+White+Clear, CMYK+White+White or CMYK+Clear+Clear, ECO-UV S: CMYK+White+White

Ink curing unitDual UV LED Lamps

Printing resolutions360x720 dpi, 540x720 dpi, 720x1080 dpi, 720x1440 dpi, 1440x1440 dpi

Distance accuracyError of less than ± 0.3 % of distance traveled, or ± 0.012 in (0.3 mm), whichever is greater.

InterfaceEthernet (10 BASE-T / 100 BASE-TX, automatic switching)

Power supplyVoltage and frequencyAC 220 V ± 10%, 50/60 Hz

Required power capacityMaximum 30 A

Power consumptionMaximum 3.0kVA

Dimensions126[W] x 147[D] x 47.5[H] in (3200[W] x 3734[D] x 1207[H] mm)

Weight2612 lb. (1185 kg)

EnvironmentPower onTemperature: 68° to 90°F (20° to 32°C) (72°F [22°C] or more recommended) / Humidity: 35 to 80% (no condensation)

Power offTemperature: 41° to 104°F (5° to 40°C) / Humidity: 20 to 80% (no condensation)

Included itemsCleaning kit, Roland VersaWorks software RIP, User's manual, etc.
