Seiko Colorpainter 64s / 100s Printhead

Product Description

Seiko Colorpainter 64s/100s Printhead

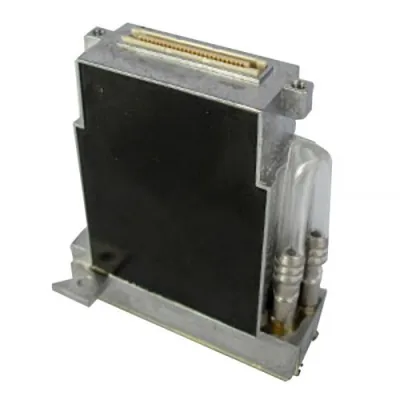

This is the Konica Minolta KM512 MN print head, it is a robust, shear mode, piezo on-demand print head that is usable in both binary and 4 level greyscale mode, providing variable drop size and higher print quality without the use of additional print heads. The Konica Minolta KM512 MN print head has 512 nozzles with a droplet size of 14 pico litre and a native resolution of 360 dpi. It is compatible with oil based, solvent and UV inks. This print head is also known as the Konica Minolta KM512 MNX. This is Konica original print head and it includes the Head ID and the necessary waveform information.

To be used with:
Agfa: :Anapurna M, :Anapurna M4f, :Anapurna Mv, :Anapurna Mw
Anhui LiYu: Anhui Liyu Apollo PTP-KL, Maxima PZ-KM, Maxima PZ3204-KM, Maxima PZ3206-KM, Maxima PZ3208-KM
DGI: SaturnJet ST-1806 / OrionJet OR-1806
JHF Vista: Vista3306 / H8 3304FN / H8 3306FNS
HP DesignJet: designjet 9000s, DesignJet 10000s
MYJET: Myjet LB3208KM42 / LE3208KM42 / WB3208KM42 / WC3208KM14
Seiko Color Painter: Seiko ColorPainter 64S / ColorPainter 100S
Other Brand: Allwin C8, Flora HJ 3200Turbo, Rodin K4320-A / K4320-B / K6164-B / K8320-B / k6320-A, Sun Neo Da Vinci, Skynet PC-series / HS-series, DYSS Apollo PTP3204-KM, Taimes T5 / T7 , Dilli Neo Titan UVT-1606S / Neo Titan UVT-1606W, OCE CS 6060 / CS 6100
Remarks: Original

Specifications:

Product NameKM512L
KM512M

KM512S

Drive ModePiezo Drop-On-Demand

Nozzle Resolution
180dpi×2 rows = 360dpi

Nozzle Number256 nozzles×2 rows = 512

Nozzle Spacing70.5μm =(141um 2 rows)

Drop Volume42pl
14pl

4pl

Firing Frequency7.6kHz
12.8kHz

23.0kHz

Print Width
1.4" (36.1mm)

Dimensions
2.6"*1.6"*2.8" (67*40*72mm)(W*D*H)

solvent inkOKOKOK

uv ink OKOKOKOK

Oil Ink OKOKOKOK

Max. Drops in Greyscale-3 drops7 drops

With Heater (H)AvailableAvailableAvailable

Without Heater (N）)Available
Available

N.A.

Note:
The KM512 MN 14PL is not suitable for the varnish or white ink on the Agfa :Anapurna Mv and :Anapurna Mw printers. Please order KM512LN (PRH-KON-005) if you need print heads for varnish (Mv) of white ink (Mw).
