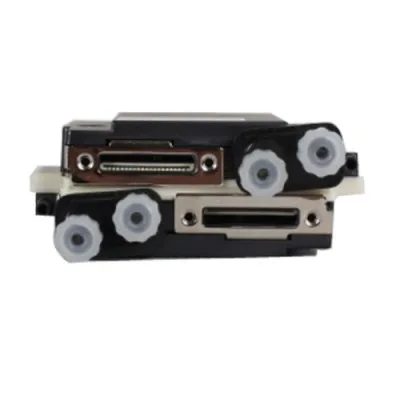

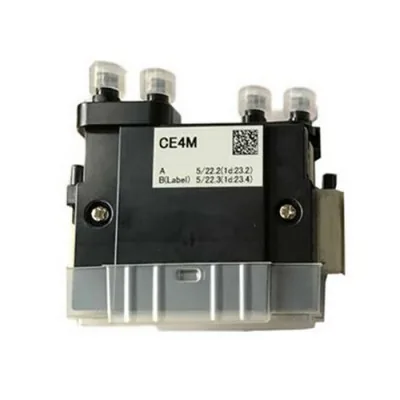

TOSHIBA CE4M UV Printhead

Product Description

Toshiba CE4M Printhead

The Toshiba CE4M printhead has high nozzle density with 636 channels and a high driving frequency (especially at small drops). The Toshiba CE4M printhead offers a wide range of drop volume, from 5 to 35 picoliters, with excellent dot placement accuracy and stable jetting with water circulation thermal control.

The Toshiba CE4M printhead is compatible with UV curable and oil-based pigment inks.

Specifications

Printhead Name: Toshiba CE4M

Active nozzles: 636

Print width: 2,11″ (53.6 mm)

Grayscale levels: 16

Native resolution: 150dpi

Max. resolution: 300 dpi

Printhead weight (dry): 148 g

Ink Compatibility: Oil-based pigment ink and UV curable pigment ink

Drop volume: 5 – 35 pl

Typical firing frequency: 2.8 – 28 kHz

Dimensions (WxDxH): 85 x 70 x 23 mm
