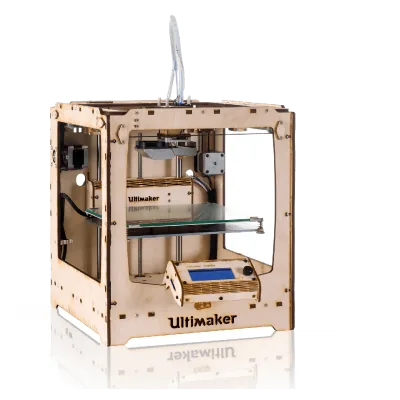

Ultimaker Original+ 3D Printer

The Ultimaker Original+ is a customizable DIY 3D printer kit designed for makers, engineers, educators, and enthusiasts who want hands-on experience with 3D printing technology. Its upgrade-friendly design encourages experimentation, modification, and expansion while delivering reliable and accurate printing results.

Using Fused Deposition Modeling (FDM) technology, the Ultimaker Original+ supports layer resolutions as fine as 20 microns and print head travel speeds of up to 300 mm/s. Its heated glass build plate helps reduce model warping, while the open filament system provides flexibility for a range of compatible materials.

Key Features

DIY Assembly Kit: Supplied as a kit that lets users assemble their own 3D printer and learn about its mechanical and electronic components.
Customizable and Upgradeable: Designed for modification, experimentation, and future upgrades.
High-Resolution Printing: Supports layer resolutions from 20 to 200 microns with a 0.4 mm nozzle.
Lightweight Print Head: Supports print head travel speeds of up to 300 mm/s.
Heated Glass Build Plate: The Original+ features a heated glass plate adjustable from 50°C to 100°C to help improve print adhesion and reduce warping.
Swappable Nozzles: The single-extrusion print head supports interchangeable nozzles for different printing requirements.
Open Filament System: Uses 2.85 mm filament and supports PLA, ABS, and CPE on the Original+ model.
Standalone Printing: Print directly from an SD card using the included UltiController.
Cura Software Support: Prepare 3D models using Cura, available for macOS, Windows, and Linux.

Printer and Printing Specifications

Model	Ultimaker Original+
Printer Type	DIY 3D Printer Kit
Print Technology	Fused Deposition Modeling (FDM)
Assembly Type	DIY kit
Print Head	Single-extrusion print head with swappable nozzles
Nozzle Diameter	0.4 mm
Layer Resolution	20–200 microns with a 0.4 mm nozzle
Build Plate — Original+	Heated glass build plate, 50°C–100°C
Build Plate — Original	Acrylic build plate with blue tape
Build Plate Leveling	Manual leveling
Build Speed	Up to 8 mm³/s with a 0.4 mm nozzle
Print Head Travel Speed	30–300 mm/s
XYZ Accuracy	12.5, 12.5, 5 microns
Nozzle Temperature	180°C–260°C
Nozzle Heat-Up Time	Less than 2 minutes
Build Plate Heat-Up Time — Original+	Less than 4 minutes
Operating Sound Level	57 dBA

Supported Materials

Filament System	Open filament system
Filament Diameter	2.85 mm
Supported Materials — Original+	PLA, ABS, and CPE
Supported Materials — Original	PLA
Ultimaker Filament Spool	750 g standard spool size

Software and Connectivity

Print Preparation Software	Cura
Supported Operating Systems	macOS, Windows, and Linux
Supported File Formats	STL, OBJ, and AMF
File Transfer	Standalone SD card printing
Controller	UltiController with SD card

Electrical Specifications

Specification	Ultimaker Original+	Ultimaker Original
Power Input	100–240 V AC, 4 A, 50–60 Hz	100–240 V AC, 2 A, 50–60 Hz
Maximum Power Consumption	221 W	120 W
Power Supply Output	24 V DC, 9.2 A	19 V DC, 6.32 A

Environmental Requirements

Operating Ambient Temperature	15°C–32°C (59°F–90°F)
Non-Operating Temperature	0°C–32°C (32°F–90°F)

Physical Dimensions and Weight

Dimensions	342 × 560 × 650 mm (13.5 × 22.1 × 25.6 inches), including Bowden tube and spool holder
Weight	11.5 kg (approximately 25.4 lb)

What's in the Box?

Complete set of parts to assemble the Ultimaker Original+
UltiController with SD card
Power supply and power cable
Glue stick
Grease
Hex wrenches
USB cables
750 g spool of Ultimaker PLA filament
Online assembly manual
Cura print preparation software
Ultimaker app
Access to lifetime expert support, as specified in the supplied product information
Access to the global maker community

Applications

DIY electronics and mechanical projects
Rapid prototyping and product development
Educational projects and technical training
Engineering and design experiments
Custom tools, fixtures, and functional components
Maker communities and research workshops

Note: The Ultimaker Original+ is supplied as a DIY assembly kit. The supplied specifications distinguish the Original+ from the earlier Ultimaker Original in terms of build plate, supported materials, and electrical requirements. Confirm the exact model and included components before purchasing.
