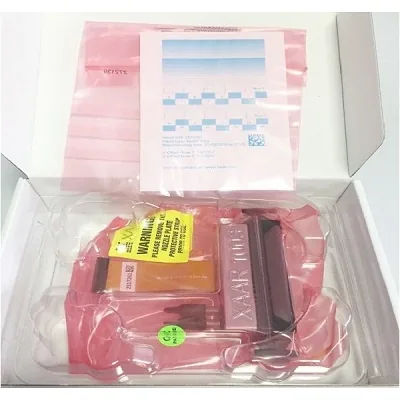

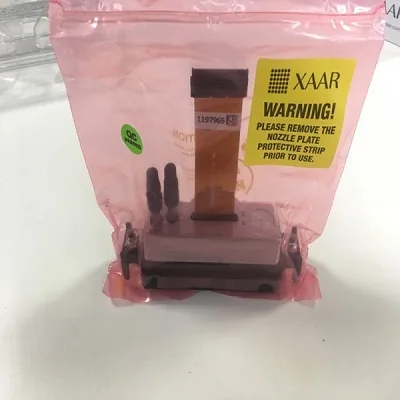

Xaar 1003-GS12U Printhead

Product Description

Xaar 1003-GS12U Printhead

Remarks: Original

Active nozzles:1000

Print swathe width:70.5 mm

Number of rows:2

Drop volume* (at 8 levels):12 to 84 pL

Number of grey levels*:8

Typical firing frequency*:6 to 12 kHz

Dimensions (WxDxH):125x30x60 mm

Description

Xaar 1003® is an industrial head with outstanding image quality and high productivity.

This printhead is being used by a diverse series of printers focusing on Ceramic and label printing.

One of its main attributes is its High Laydown Technology that enables any printer to achieve high production levels at any printing mode.

Physical attributesXaar® 1003 GS6UXaar® 1003 GS12UXaar® 1003 GS40U

Active nozzles100010001000

Print swathe width70.5 mm70.5 mm70.5 mm

Number of rows222

Nozzle pitch (interleaved)70.5 µm70.5 µm70.5 µm

Drop velocity*6 m/s6 m/s5 m/s

Nozzle density (nozzles per inch)360 npi360 npi360 npi

Printhead weight (dry)144 g144 g144 g

Ink typeSolvent, UV, OilSolvent, UV, OilUV, Oil

Drop volume* (at 8 levels)6 to 42 pL12 to 84 pL40 to 160 pL

Number of grey levels*885

Typical firing frequency*6 kHz6 to 12 kHz6 kHz

Dimensions (WxDxH)125x30x60 mm125x30x60 mm125x30x60 m
