Canon image PROGRAF iPF840 Large Format Printer
Availability: In stock
- Free shipping to 29 countries — already in the price
- Secure checkout
- SKU:
- OC-69
- Category:
- Canon Printer
- Share:
$3,060
In stock

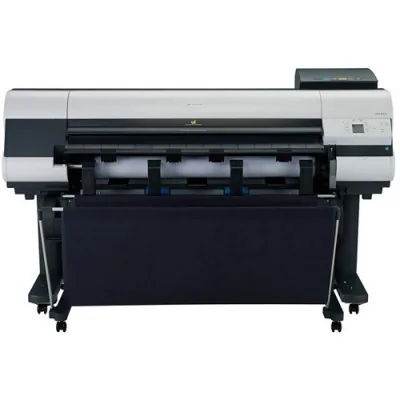

Canon imagePROGRAF iPF840 Large Format Printer
The Canon imagePROGRAF iPF840 is a professional 44-inch (1.11 m) large-format printer designed for commercial graphics, posters, signage, technical drawings, and print production. With a maximum resolution of 2400 × 1200 dpi and a five-color dye/pigment reactive ink system, it delivers detailed output for a range of professional printing applications.
The iPF840 features a built-in 320 GB hard drive, Gigabit Ethernet, and high-speed USB 2.0 connectivity. Its front-loading roll and cut-sheet feeding systems support flexible media handling, while user-replaceable components help simplify routine maintenance.
Key Features
- 44-inch printing capability: Supports roll media up to 44 inches (approximately 1.12 m) wide.
- High-resolution output: Maximum print resolution of 2400 × 1200 dpi.
- Five-color ink system: Four dye-based colors plus pigment-based Matte Black.
- High-capacity ink options: Compatible with 330 ml and 700 ml ink tanks per color.
- Advanced nozzle system: 15,360 total nozzles with non-firing nozzle detection and compensation.
- Integrated storage: Built-in 320 GB hard drive for print workflow support.
- Flexible media handling: Front-loading single-roll feed and manual cut-sheet feed.
- Borderless printing: Supports selected media widths up to 42 inches.
- Multiple printer languages: Canon GARO, HP-GL/2, and HP-RTL.
- Serviceable components: User-replaceable PF-04 printhead and compatible maintenance cartridges.
Technical Specifications
Printing System
| Specification | Details |
|---|---|
| Printer Model | Canon imagePROGRAF iPF840 |
| Printer Type | 44-inch (1.11 m) large-format printer |
| Printing Technology | Five-color dye/pigment reactive ink system |
| Maximum Print Resolution | 2400 × 1200 dpi |
| Minimum Ink Droplet Size | 4.0 pl |
| Nozzle Pitch | 1200 dpi |
| Total Nozzles | 15,360 |
| Matte Black (MBK) Nozzles | 5,120 |
| Cyan, Magenta, Yellow, and Black Nozzles | 2,560 per color |
| Nozzle Management | Non-firing nozzle detection and compensation |
| Printer Languages | GARO (Canon proprietary), HP-GL/2, HP-RTL |
Ink System and Consumables
| Specification | Details |
|---|---|
| Ink Technology | Dye/pigment reactive ink |
| Ink Colors | Cyan, Magenta, Yellow, Black, and Matte Black |
| Dye-Based Inks | Cyan, Magenta, Yellow, Black |
| Pigment-Based Ink | Matte Black |
| Ink Capacity | 330 ml or 700 ml per color |
| 330 ml Ink Tanks | Canon PFI-307 series: Cyan, Magenta, Yellow, Black, Matte Black |
| 700 ml Ink Tanks | Canon PFI-707 series: Cyan, Magenta, Yellow, Black, Matte Black |
| User-Replaceable Printhead | PF-04 |
| Maintenance Cartridges | MC-10, MC-09 |
Media Handling
| Specification | Details |
|---|---|
| Paper-Feed Method | Single-roll feed and manual cut-sheet feed |
| Roll Loading | Front loading, front output |
| Cut-Sheet Loading | One sheet at a time, front loading and front output |
| Cut-Sheet Width | 8–44 inches (approximately 20 cm–1.12 m) |
| Roll Media Width | 10–44 inches (approximately 25 cm–1.12 m) |
| Maximum Roll Print Length | 59 feet (18 m) |
| Media Thickness | 2.8–31.5 mil (0.07–0.8 mm) |
| Maximum Roll Diameter | 5.9 inches (15.1 cm) |
| Borderless Printing Widths | 10, 14, 17, 24, 36, and 42 inches (approximately 25, 35, 43, 61, 91, and 107 cm) |
Connectivity, Storage, and Operating Systems
| Specification | Details |
|---|---|
| USB Interface | USB 2.0 High-Speed |
| Ethernet Interface | 10/100/1000 Base-T/TX Gigabit Ethernet |
| Internal Hard Drive | 320 GB |
| Windows Compatibility | Windows XP 32-bit, Vista, Windows 7, Windows 8, and Windows 8.1 |
| Macintosh Compatibility | Mac OS X 10.6.8–10.10 |
Physical Specifications
| Specification | Details |
|---|---|
| Dimensions (W × D × H) | 75 × 51 × 45 inches (1.9 × 1.3 × 1.14 m) |
| Weight | 417 lb (189 kg), including stand |
| Package Dimensions (L × W × H) | 84 × 62.5 × 45.4 inches |
Electrical and Environmental Specifications
| Specification | Details |
|---|---|
| Power Requirements | 100–240 VAC, 50–60 Hz |
| Maximum Power Consumption | 190 W or less |
| Standby Power Consumption | 5 W or less |
| Power-Off Consumption | 0.5 W or less |
| Operating Noise | 52 dB(A) or less |
| Standby Noise | 35 dB(A) or less |
| Acoustic Power | Approximately 6.8 bels or less |
| Operating Temperature | 59–86°F (15–30°C) |
| Operating Humidity | 10–80% |
Recommended Applications
- Commercial posters and promotional graphics
- Retail displays and large-format signage
- Architectural and engineering drawings
- CAD and technical documentation
- Marketing materials and presentation graphics
- Large-format printing for commercial print shops
Important Notes
- Confirm the printer's condition, included stand, printhead status, and accessories when purchasing a used or refurbished unit.
- Ink tanks, printhead, and maintenance cartridges may be sold separately unless explicitly included in the listing.
- The listed operating systems are older versions. Verify driver availability and compatibility before installation.
- Confirm supported media types and borderless-printing requirements for your intended application.
| SKU | OC-69 |
|---|---|
| Brand | Canon |
| Category | Canon Printer |
| Shipping | Included in the price, to 29 countries |
