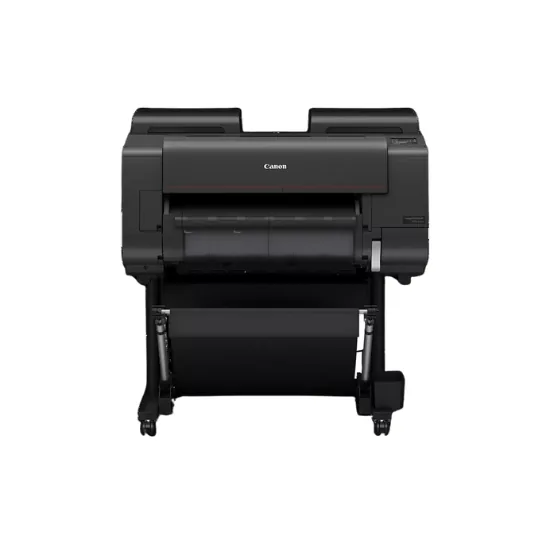

Canon imagePROGRAF 24" PRO-2600

Product Description

Specifications

- Print Head: PF-10
- Number of Nozzles: 18,432 nozzles
- Droplet Size: 4 pl per Colour
- Ink Type: Pigment (BK, MBK, C, M, Y, PC, PM, GY, PGY, R, B, +CO)
- Ink Tank (Shipped with): 160 ml of each colour (MBK, BK, C, M, Y, GY, PGY, PC, PM, R, B, CO)
- Ink Tank (Replacement):

- 160 ml PFI-3100 (BK, C, M, Y, GY, PGY, PC, PM, R, B, CO), 160 ml PFI-2100 (MBK)
- 330 ml PFI-3300 (BK, C, M, Y, GY, PGY, PC, PM, R, B, CO), 330 ml PFI-2300 (MBK)
- 700 ml PFI-3700 (BK, C, M, Y, GY, PGY, PC, PM, R, B, CO), 700 ml PFI-2700 (MBK)

- Printer RAM: Standard Memory: 3 GB, Hard Disk: 500 GB
- Media Feed:

- Front-Loading Roll Feed: One Roll, Front Output
- Cut Sheet: Upper-loading, Front Output (Manual feed using media locking lever)

- Media Width:

- Roll Feed: 6”–24” (152.4 mm - 610 mm)
- Cut Sheet: 6”–24” (152.4 mm - 610 mm)

- Media Cutter: Automatic horizontal cutting (Rotary cutter) - Standard
- Media Thickness: 0.002” - 0.03” (0.07 mm - 0.8 mm)
- Media Core Sizes: 2” Core Standard. 2”/3” Core Roll Holder Set PRO-2600 (RH2-29), PRO-4600 (RH2-46), PRO-6600 (RH2-66)
- Maximum Roll Outer Diameter: 6.7” or less (170 mm or less)
- Media Output: Catch Basket

Printing Software Utilities

- Accounting Manager
- Device Management Console
- Direct Print Plus
- Free Layout Plus
- imagePROGRAF Printer Driver for Windows®/Mac®
- Media Configuration Tool
- PosterArtist
- Canon Print Service
- Professional Print & Layout

Operating System

- Windows 7 (32/64-bit), Windows 8.1 (32/64-bit), Windows 10 (32/64-bit), Windows 11 (64-bit)
- Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022 (64-bit)
- Macintosh OS v10.12.6 - v13x

Connectivity

- Standard Interfaces: USB 2.0 Hi-Speed, 10/100/1000Base-T/TX, Wireless LAN (IEEE 802.11 b/g/n)*
- Print Language: SGRaster (Swift Graphic Raster), PDF, JPEG
- *Wireless Printing: Requires a working network with wireless 802.11b/g or 802.11n capability

Power

- Power Supply: AC 100 – 240V (50 – 60 Hz)
- Power Consumption: Max: Approx. 85W, Standby: Approx. 1.7W, Power Off: Approx. 0.1W
- Certifications: ENERGY STAR® (Worldwide), EPEAT Gold

Operational Environment

- Temperature: 59 – 86 °F (15 – 30 °C)
- Relative Humidity: 10 – 80% (Non-Condensation)

Dimensions and Weight

- Printer Dimensions (With Stand and Basket Open): 43.7” x 38.7” x 46” (111.0 x 98.3 x 116.8 cm), 225 lbs (102 kg)
- Main Unit with Pallet: 52.1” x 35.9” x 44.8” (132.0 x 91.2 x 113.9 cm), 346.1 lbs (157.7 kg)

Options

- Multifunction Roll Unit - PRO-2600 (RU-23) & PRO-4600 (RU-43)
- 2/3” Roll Holder Set PRO-2600

User-replaceable Items

- Ink Tank: PFI-3100 (160 ml)/PFI-2100 MBK (160 ml), PFI-3300 (330 ml)/ PFI-2300 MBK (330 ml), PFI-3700 (700 ml)/PFI-2700 MBK (700 ml)
- Print Head (PF-10)
- Maintenance Cartridge (MC-30)
- Cutter Blade (CT-07)
